产品资料

ELSA-2 DL 68 OP 100° 500 830 WH

EO10298967

ESYLUX

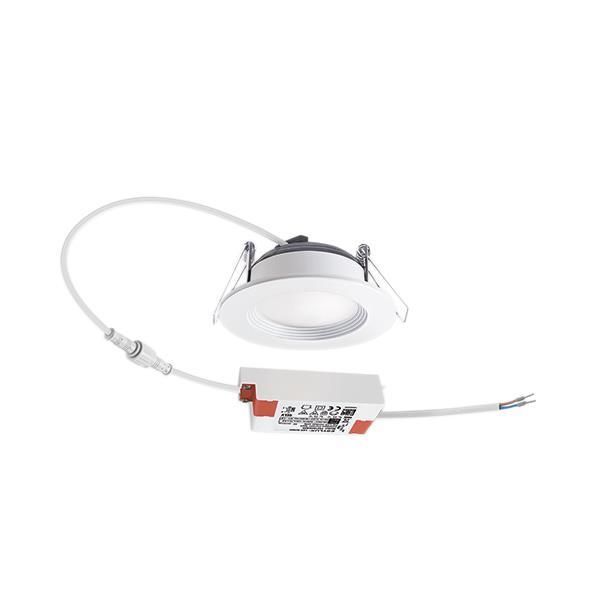

LED downlight, 5W for ceiling mounting Control system: ON/OFF Installation type: Recessed mounting Installation position: Ceiling Dimensions: Height/Depth 45 mm, Ø 98 mm Weight: 194 g Protection type: IP20 ApplianceClass: Class II Permissible ambient temperature: -20 °C...+40 °C Colour: white, similar to RAL 9003 Nominal voltage: 220 - 240 V AC / 50 - 60 Hz TotalSystemPower: 6,5 W Luminous flux: 500 lm Luminous efficacy: 76 lm/W Colour temperature: 3000 K Colour[更多]

现有设备 额定光源功率 光源光通量 光效 CCT CRI
1 x LED 6.5瓦 500 lm 77 lm/W 3000K 81
ELSA-2 DL 68 OP 100° 500 830 WH

ELSA-2 DL 68 OP 100° 500 830 WH

光输出1

1 x LED

LOR:100%
总光通量:500 lm
总功率:6.5瓦

安装方式

天花板嵌入式

形状和尺寸

高: 45毫米

直径: 98毫米

可调性

固定

设计

外罩颜色: 白

电子

系统功率: 6.5瓦

镇流器: ECG

器具类: II

防护

IP: 20

认证: CE

其他编号

环境温度范围: -20...40°C
