C90-P1170 10/90 22000 827-865 CCT OP 4000K

Glamox

Light source LED 2000 - 27 000 lumen out Colour temperature 3000/4000 K, CRI Ra 80, MacAdams 3 Driver Electronic ballast (HF) or DALI. Driver life time up to 100.000 h/10 % (max failure) at Ta 25°C. Body material & colour White or grey powder coated aluminium body. Mounting Supplied with 3-point wire suspension, 2,5 m flexible power cable and ceiling cup. Connection In ceiling cup. Optics Opal (OP) or micro prismatic (MP) with dust cover on top. MP only available on 420, 570 and 870 version. Sensors This product is available with a PIR sensor type SPR-SEN with relay based ON/OFF switch or a PIR sensor wired for Corridor function type SPC-SEN. It is also available with a combined PIR and Constant Light sensor with integrated DALI Power supply type MPP-SEN or a slave PIR version type MPS-SEN. For more information see user manual for the respective sensor under “Download”. Emergency system Standard (S), Self test (ST) or DALI. 1h or 3h.

光源种类 额定光源功率 总光通量 光效 CCT CRI
LED 151瓦 21763 lm 144 lm/W 4000K 80
C90-P1170 10/90 22000 827-865 CCT OP 4000K

C90-P1170 10/90 22000 827-865 CCT OP 4000K

光输出 1 (整合)

LED

安装方式

悬吊式

形状和尺寸

高: 88毫米

直径: 1170毫米

可调性

调整高度

电子

系统功率: 151瓦

可调光色

防护

IP: 20

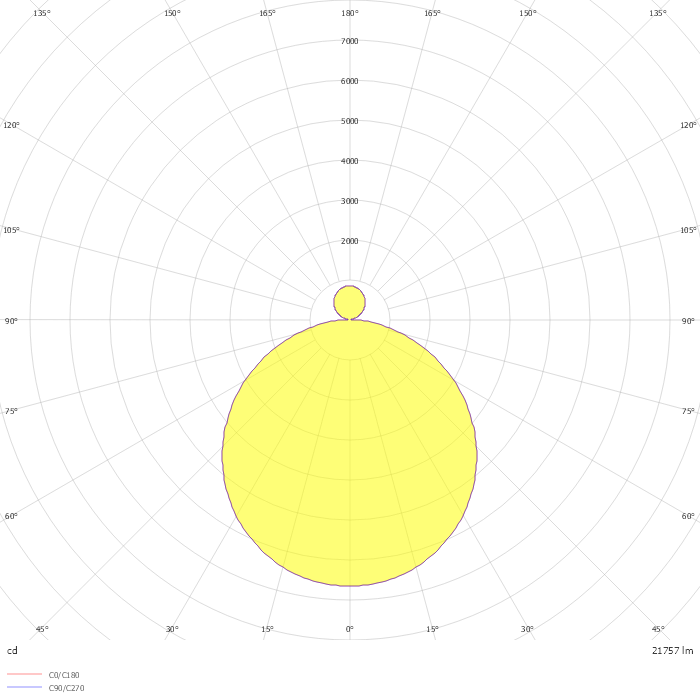

Photometric data

ZIP file
