产品资料

SINFONIA Lenti-L=37cm-25Wm-12Vdc-L50°-3000K CRI90

SR3D1-_ _ _._ W

DGA

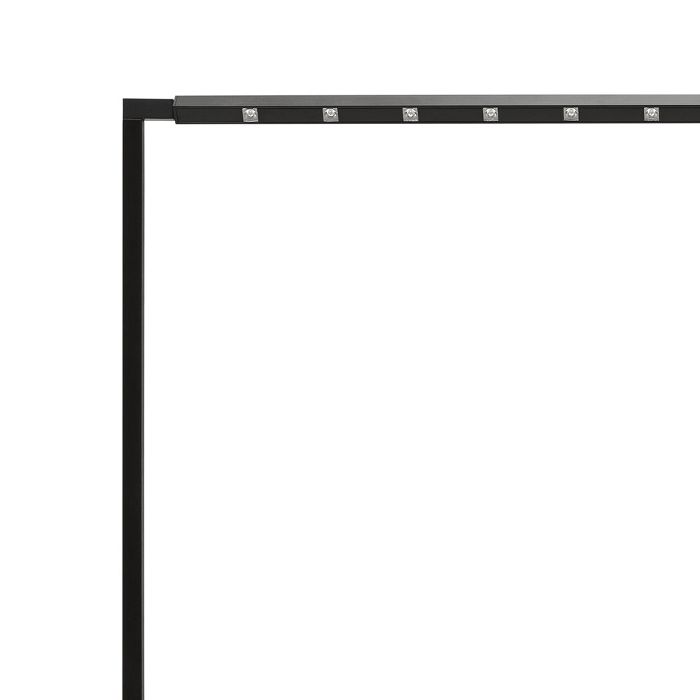

产品图片 1: SINFONIA Lenti-L=37cm-25Wm-12Vdc-L50°-3000K CRI90
产品图片 1: SINFONIA Lenti-L=37cm-25Wm-12Vdc-L50°-3000K CRI90

产品图片 1: SINFONIA Lenti-L=37cm-25Wm-12Vdc-L50°-3000K CRI90



IP
40

Sinfonia is pure innovation. It is a small and removable light portal composed by two standing poles and a horizontal bar, all 8x8 mm sized. The revolutionary magnetic junction turns the light on and off and the absence of cable allows a 360° rotation of the bar. The easy assembly facilitates the maintenance and transport as well. Available with several optics and colour temperatures that can be easily combined for a quick and smart renew the layout.

光源种类 额定光源功率 总光通量 光效 CCT CRI
LED 9.5瓦 367 lm 39 lm/W 3000K 90
SINFONIA Lenti-L=37cm-25Wm-12Vdc-L50°-3000K CRI90

SINFONIA Lenti-L=37cm-25Wm-12Vdc-L50°-3000K CRI90

光输出 1 (整合)

LED

安装方式

立式 / 矮柱, 落地式

形状和尺寸

长: 8毫米

宽: 370毫米

高: 8毫米

可调性

可倾斜

设计

材料效果: 铝

设计师: DGA S.p.A.

电子

系统功率: 9.5瓦

器具类: III

防护

IP: 40

其他编号

环境温度范围: -20...40°C

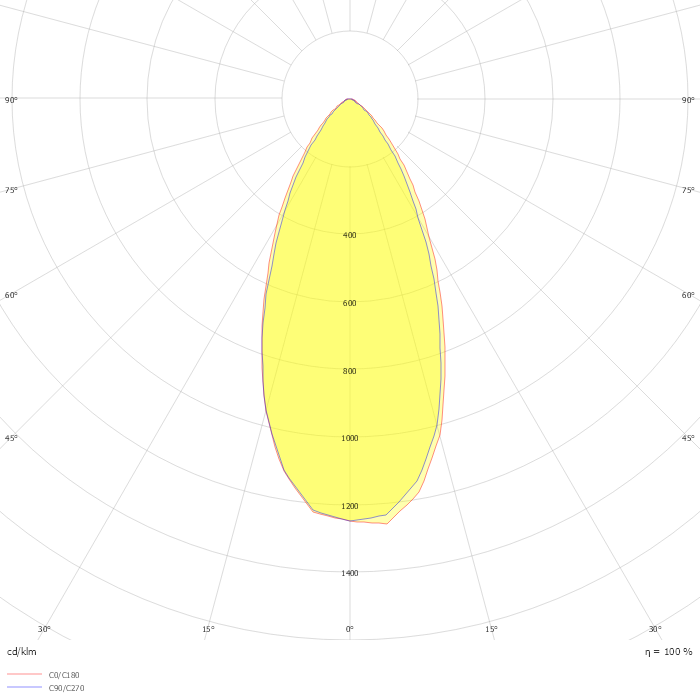

Photometric data

ZIP file
