Indoor luminaire. Assembly: surface mounted on ceiling or on wall. The body material is polycarbonate. Colour - white. Luminaire dimensions: Ø280 x 54 mm. Weight 1 kg. Diffuser: PC (opalescent polycarbonate). The efficiency of the optical system is 66,59%. Beam angle: (C0-C180) / (C90-C270) - 113,8° / 118,8°. Light source type: LED. Colour of the light 4000 K. SDCM=6. CRI>80. Lifetime of LED sources: 30000 h L70/B10. Luminaire luminous flux: 1942 lm. Power of luminaire: 17,3 W. Luminaire's light efficiency: 112,3 lm/W. Driver: standard on/off (E). Voltage 220..240 V, 50..60 Hz. Circuit load capacity: 87 (B10), 140 (B16), 80 (C10), 135 (C16). Protection degree: IP54. Impact resistant: IK08. Protection against electric shock: II.
Все источники света | Номинальная мощность лампы | Световой поток | Световая отдача | CCT | CRI |
---|---|---|---|---|---|
1 x LED | 17,3 Вт | 2916 lm | 169 lm/W | 4000 K | 80 |
Монтаж
Потолочный накладной, Пристраиваемый
Форма и размеры
Высота: 54 мм
Диаметр: 280 мм
Регулируемость
фиксированный
дизайн
Цвет корпуса: Белый
Электрика
Мощность: 17,3 Вт
класс защиты: II
Защита
IP: 54
IK: 08

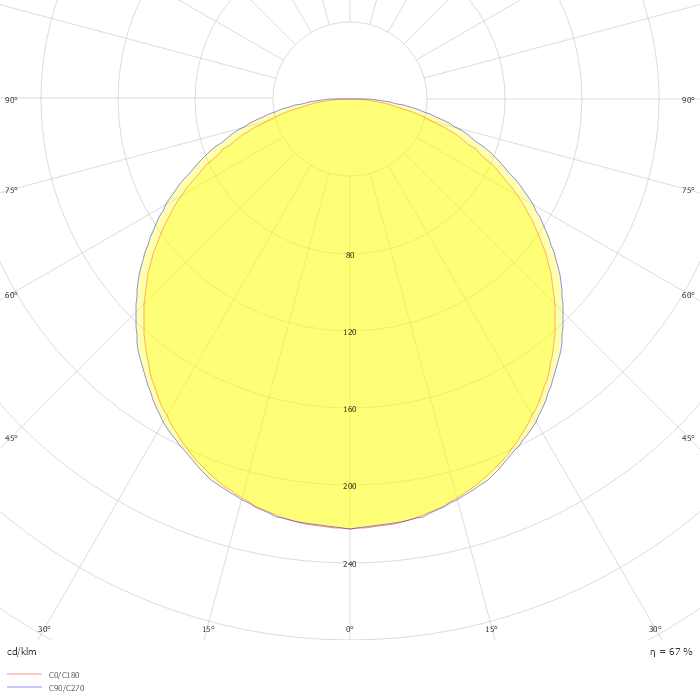

Фотометрические данные
ZIP file
