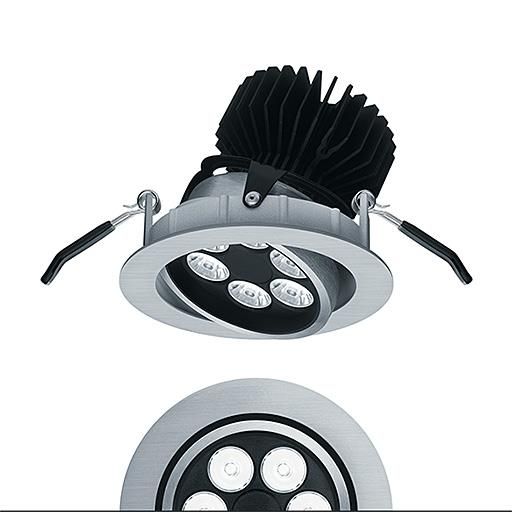

LED ceiling-recessed luminaire (beam angle); lamp(s): 6/2,3 W LED840, colour temperature: neutral white (4000K); Luminaire luminous flux: 714 lm, Luminaire efficacy: 52 lm/W; colour rendering index: RA80; 50,000h service life at 70% luminous flux; spotlight mounting plate is gimbal-mounted for ±20° tilt; LED recessed luminaire designed as replacement for 50W low-voltage halogen lamp; die-cast aluminium housing, aluminium ceiling surround in brushed finish; includes 0.62m power lead (halogen-free) with power socket for multiplug system; fixing clips provided for tool-free installation in ceilings of thickness 1-25 mm; ceiling cut-out: Ø95mm, recess depth: 100 mm; weight: 0.32 kg; Please note: please order control gear (700mA) separately as accessory; please also order one extra power lead (60700226) per control gear unit; luminaire can also be operated using 350mA or 500mA control gear, which results in a lower luminaire luminous flux and higher luminaire efficiency.
Тип лампы | Номинальная мощность лампы | Общий световой поток | Световая отдача | CCT | CRI |
---|---|---|---|---|---|
LED | 13,8 Вт | 714 lm | 52 lm/W | 3000 K | 99 |
Монтаж
Встраиваемый
Форма и размеры
Высота: 85 мм
Диаметр: 105 мм
Вес: 0,32 кг
дизайн
Поверхность: Алюминь
Электрика
Мощность: 13,8 Вт
класс защиты: III
Защита
IP: 20
Обозначение: CE

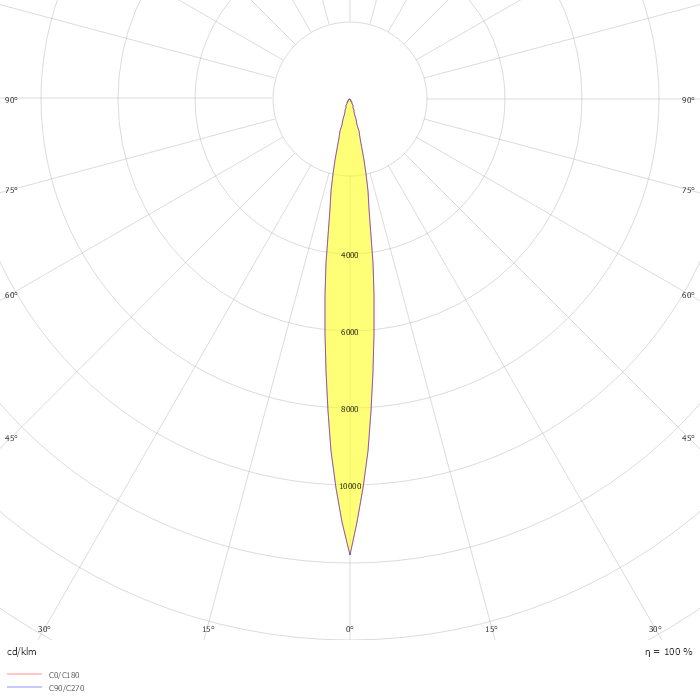

Фотометрические данные
ZIP file
