A version of the ISKRA LED luminaire dedicated to lighting pedestrian crossings. Made of aluminium alloy – in standard version anodised in inox and black.. It has a protection class of IP 66 for the optical part and the power input system. The luminaire is mounted directly on a column with a ø60x50 mm ending. Luminaire is equipped with a PMMA lens. The operating temperature range, depending on the power variants, is from -40°C to +55°C (for 36 W), from -40°C to +40°C (for 45 W). The expected operating time is L90B10 - 100,000 h. The input voltage frequency is 50/60Hz. Power factor ≥0.95. Equipped with 12 LEDs. The luminaire can optionally be connected to an external control system via a 1-10V interface.
| Все источники света | Номинальная мощность лампы | Световой поток | Световая отдача | CCT | CRI |
|---|---|---|---|---|---|
| 1 x LED | 39,5 Вт | 6050 lm | 153 lm/W | 4000 K | 70 |
Монтаж
Торшерный
Форма и размеры
Длина: 405 мм
Ширина: 92 мм
Высота: 170 мм
Регулируемость
фиксированный
Электрика
Мощность: 39,5 Вт
Защита
IP: 66

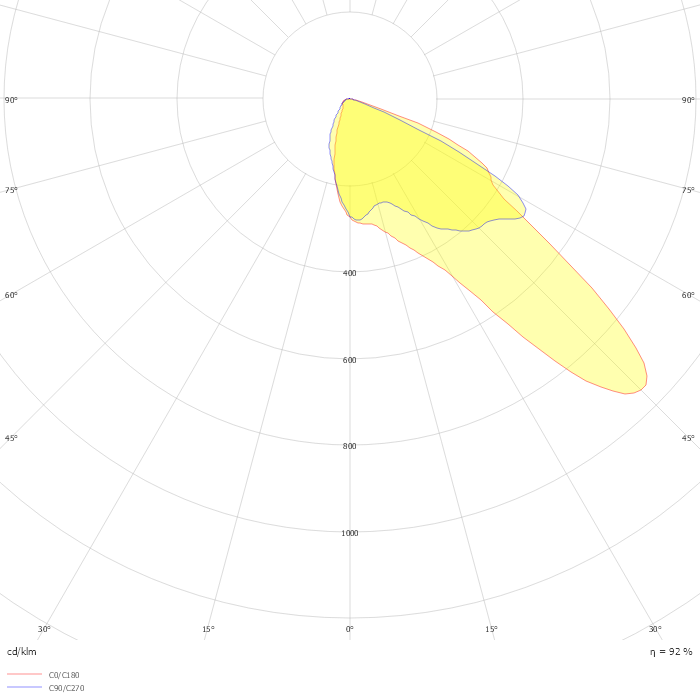

Фотометрические данные
ZIP file
