Series: FLAT POLYMERO Decorative round surface-mounted luminaire. Base: metal, powder-coated. Diffuser made of non-yellowing plastic (PMMA), opal. Diffuser fastening: patented push system. Suitable for Ceiling mounting, Wall (surface). With integrated HF movement sensor. Functional parameters of the motion detector (ceiling mounting up to 4.0 m or wall mounting up to 2.7 m): HF detector 5.8 GHz ISM frequency band. Sensitivity/Range: 1-8 m in diameter, adjustable from 20-100%. Time control between 10 seconds and 30 minutes, adjustable. Coverage: 120°. Can be used as master luminaire up to 800 W (ohmic load), 500 W (fluorescent lamp, LED) / 400 A, 200 µs. Suitable for outdoor use to a limited extent only, as it is sensitive to all movements. Colour: white Diameter: 460 mm Height: 120 mm Lamp: LED Socket: without socket Colour temperature: 4000K Colour rendering index (CRI): 80 System power: 19 W Rated luminous flux: 2100 lm Luminous efficiency: 111 lm/W Control gear: Regulated power supply Protection class: I Type of protection: IP 40
Тип лампы | Номинальная мощность лампы | Общий световой поток | Световая отдача | CCT | CRI |
---|---|---|---|---|---|
LED | 19 Вт | 2100 lm | 111 lm/W | 4000 K | 80 |
Монтаж
Потолочный накладной
Форма и размеры
Высота: 120 мм
Диаметр: 460 мм
Регулируемость
фиксированный
Электрика
Мощность: 19 Вт
Защита
IP: 40
IK: 03

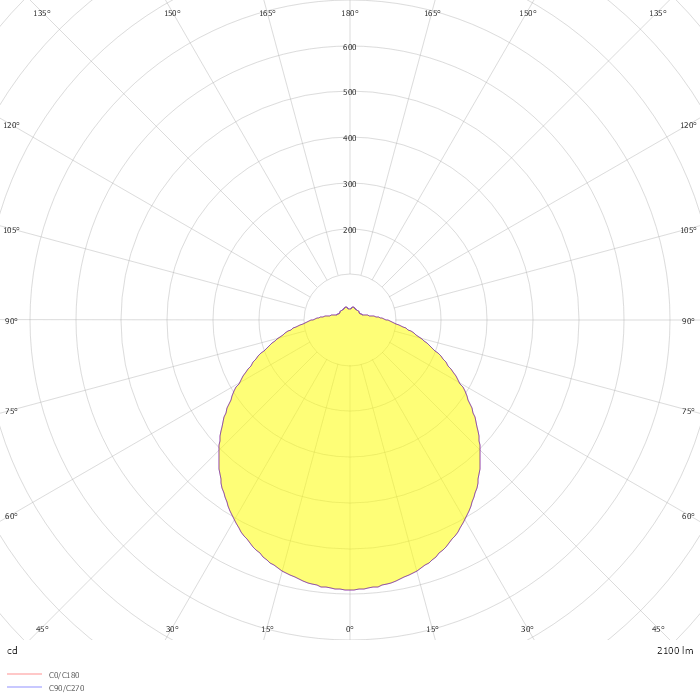

Фотометрические данные
ZIP file
