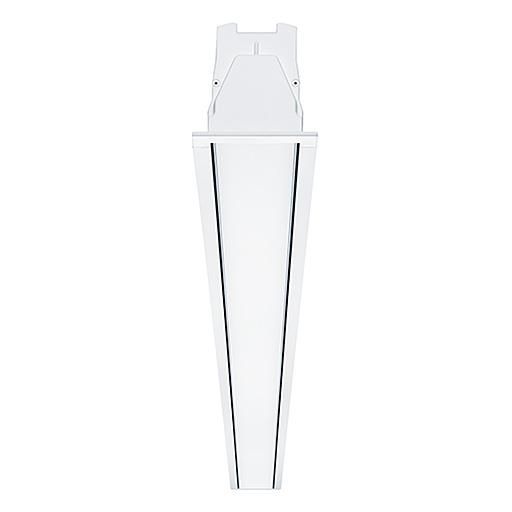

LED light line with DALI-controllable LED converter, with cover to 50m from one piece; LED service life lasts 50000 h before luminous flux is reduced to 90% of the initial value. Chromaticity tolerance (initial MacAdam): 3. Luminaire luminous flux: 4960 lm, Luminaire efficacy: 105 lm/W. Colour rendering Ra > 80, colour temperature 4000 K. Luminaire of aluminium, white powder coated. Luminaire with completely uniform appearance due to polycarbonate cover. Luminaire consists of housing and continuous optic of polycarbonate. For installing in module ceilings with 12 mm edges and for installing in plasterboard ceilings. Armstrong® TECH ZONE compatible with ceiling types with width 100 mm. Includes gear tray, wiring, and end-cap set. Luminaire wired with halogen-free leads and covers are due to norm classified as TP(a). Degree of protection: IP40 below (IP20 above). Dimensions: 3048 x 100 x 134 mm weight: 9.3 kg
Тип лампы | Номинальная мощность лампы | Общий световой поток | Световая отдача | CCT | CRI |
---|---|---|---|---|---|
LED | 47,2 Вт | 4960 lm | 105 lm/W | 3000 K | 80 |
Монтаж
Встраиваемый
Форма и размеры
Длина: 3048 мм
Ширина: 100 мм
Высота: 134 мм
Вес: 9,3 кг
дизайн
Поверхность: Алюминь
Цвет корпуса: Белый
Электрика
Мощность: 47,2 Вт
Вольтаж: 220-240 В AC
контроллер: DALI
класс защиты: I
Защита
IP: 20
IK: 07
Обозначение: CE, ENEC

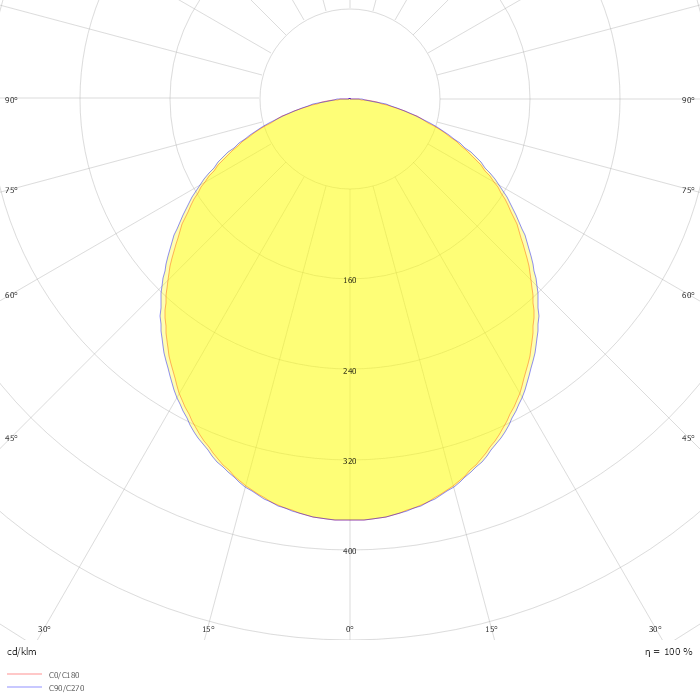

Фотометрические данные
ZIP file
