Информация о продукте

AFL120 [S71] IP66:LED-24/36W/2,2K

102-0324

we-ef

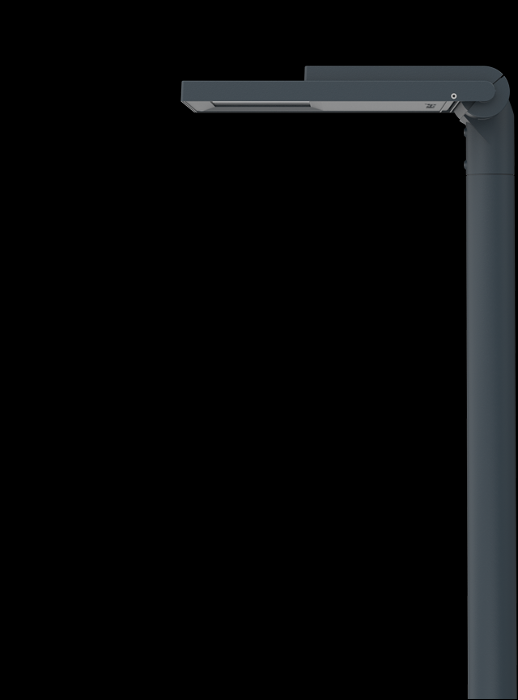

IP66, Class I or Class II. IK08. Marine-grade, die-cast aluminium alloy. 5CE superior corrosion protection including PCS hardware. CCG® Controlled Compression Gasket. Non-reflective flat safety glass cover, hinged. Integral EC electronic converter. CAD-optimised optics for superior illumination and glare control. OLC® One LED Concept. Factory installed LED circuit board. The luminaire is factory-sealed and does not need to be opened during installation. Can be used as post top or side entry version. Specification at time of order is recommended. Spigot Ø 76 x 100 mm. Spigot Ø 60 x 100 mm or 42 x 100 mm option available. Must be indicated during order placement. Recommended mounting height 3.0-6.0 m, depending on lamp type selected.

Все источники света Номинальная мощность лампы Световой поток Световая отдача CCT CRI
24 x LED 1,5 Вт 200 lm 85 lm/W 2200 K 70
AFL120 [S71] IP66:LED-24/36W/2,2K

AFL120 [S71] IP66:LED-24/36W/2,2K

Световой выход 1

24 x LED

Монтаж

Консольный

Форма и размеры

Длина: 605 мм

Ширина: 250 мм

Высота: 192 мм

Вес: 7 кг

Электрика

Мощность: 39 Вт

класс защиты: I

Защита

IP: 66

IK: 08

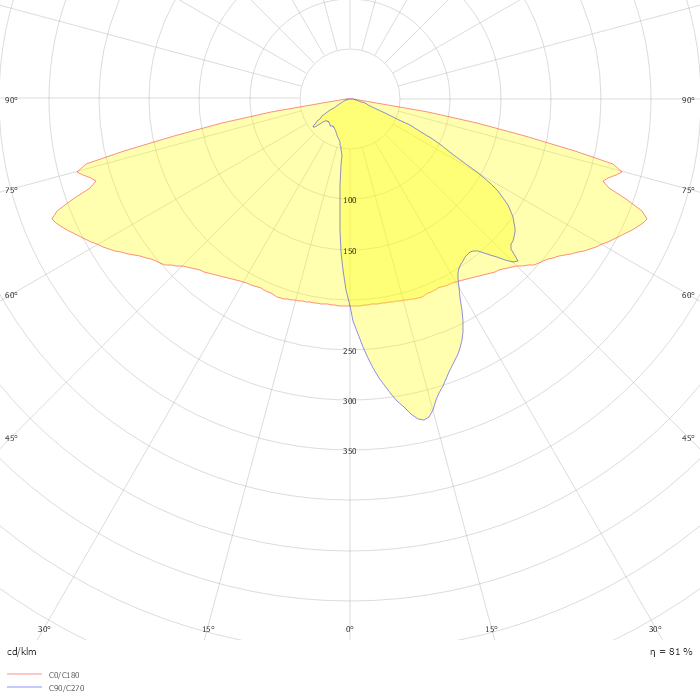

Фотометрические данные

ZIP file
