Scheda tecnica

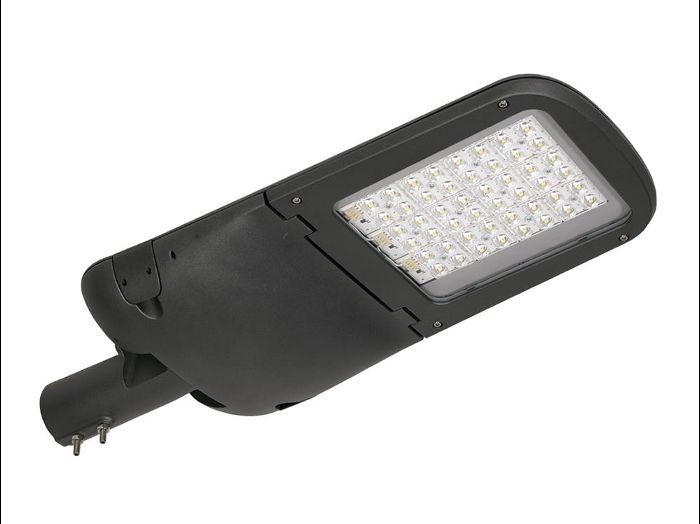

EVELUX M 48/600/730 DALI CW1-90

104777

TREVOS

light fitting resistant to dust, humidity and spraying water, suitable for roads, residential areas, parking areas and open spaces; light fitting suitable for lighting outdoor sports halls, certified for ball impact safety pursuant to DIN 18032-3; wide range of optional versions of the light fitting's optical system for diverse applications; digitally dimmable DALI driver (AC/DC); Body: aluminium alloy, black grey (RAL 7021); Diffuser: heat-strengthened safety glass; Connection: screw terminal block with disconnector for conductors with maximum cross-section of 4 mm2; Power: 88,1 W; Luminaire flux: 13080 lm; Lifetime: L80/B20; 100000 hours; Impact strength: IK10; Ambient temperature: -40|45 °C; Weight: 7,2 kg;

Tipo di lampada Potenza nominale Flusso totale Emissione luminosa CCT CRI
LED 88,1 W 15210 lm 173 lm/W 3000 K 80
EVELUX M 48/600/730 DALI CW1-90

EVELUX M 48/600/730 DALI CW1-90

Emissione luce 1 (integrata)

LED

Tipo di montaggio

Testapalo

Forma e Dimensioni

Lunghezza: 720 mm

Larghezza: 310 mm

Altezza: 100 mm

Regolazione

Fisso

Corpo: colore / materiale

Materiale: Alluminio

Colore del corpo: Antracite / Grafite

Designer: TREVOS

Cablaggio / Dimming

Potenza sistema: 88,1 W

Reattore: ECG

Dimmer: DALI

Classe di protezione: I

Grado di protezione

IP: 66

IK: 10

Marcatura: CE, ENEC

Altri dati significativi

Range temperatura: -40...45 °C

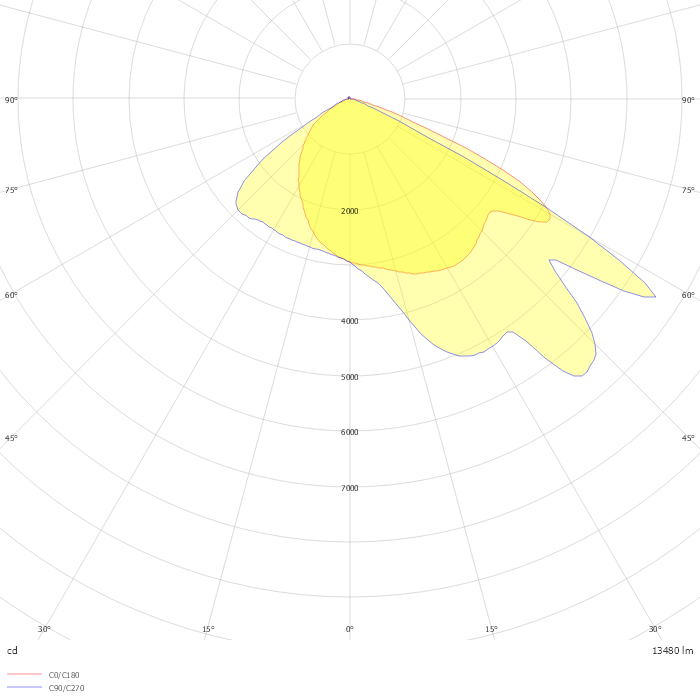

Photometric data

ZIP file
