Scheda tecnica

TOLEDO FLAT+ square E

901816.0031.2.730

RZB

Series: TOLEDO FLAT+ square Flexible square recessed multifunction downlight. Housing made of sheet steel, powder-coated. Luminaire frame: aluminium, powder-coated. Diffuser made of non-yellowing plastic (PMMA) microprismatic. LED backlight technology for homogeneous illumination of the entire light-emitting surface. Tunable white dynamically adjustable from 2700 K to 6500 K. Suitable for Human Centric Lighting (HCL) in combination with RZB light management systems. Suitable for Recessed ceiling mounting. Ceiling installation with spring system. Can be directly covered with thermal insulation material (applies only to the lower lumen levels). Including separate LED converter with connecting cable 250 mm. Suitable for through wiring as standard. With Casambi smart+free Bluetooth control for wireless network and operation using Android / iOS devices, free app available for download. Colour: anthracite metallic (DB703) Length: 230 mm Width: 230 mm Height: 2 mm Cut-out length: 217 mm Cut-out width: 217 mm Recess height: 60 mm Luminaire: recess height: 36 mm Lamp: LED Socket: without socket Colour temperature: 2700K - 6500K Colour rendering index (CRI): 80 System power: 15 W Rated luminous flux: 1550 lm Beam angle Down: 91° / 91° Luminous efficiency: 103 lm/W System power 2: 15 W Rated luminous flux 2: 1600 lm Luminous efficiency 2: 107 lm/W System power 3: 15 W Rated luminous flux 3: 1600 lm Luminous efficiency 3: 107 lm/W Control gear: Dimmable Bluetooth converter Protection class: II Type of protection: IP 54

Configurazioni disponibili Potenza nominale Flusso Emissione luminosa CCT CRI
1 x LED 15 W 1600 lm 107 lm/W 6500 K 80
1 x LED 15 W 1600 lm 107 lm/W 4600 K 80
1 x LED 15 W 1550 lm 103 lm/W 2700 K 80
TOLEDO FLAT+ square E

TOLEDO FLAT+ square E

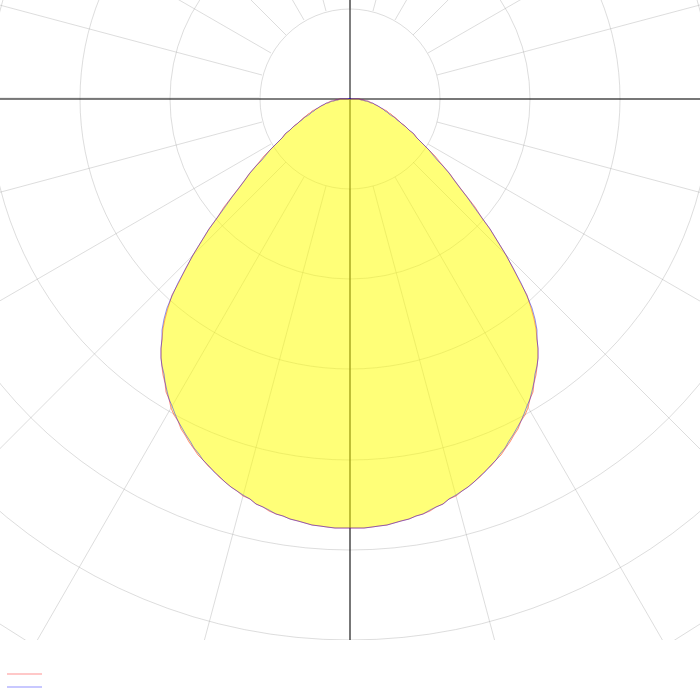

Emissione luce 1

1 x LED

TOLEDO FLAT+ square E

TOLEDO FLAT+ square E

Emissione luce 1

1 x LED

TOLEDO FLAT+ square E

TOLEDO FLAT+ square E

Emissione luce 1

1 x LED

Tipo di montaggio

Incasso a soffitto

Forma e Dimensioni

Lunghezza: 230 mm

Larghezza: 230 mm

Altezza: 2 mm

Regolazione

Fisso

Cablaggio / Dimming

Potenza sistema: 15 W

Grado di protezione

IP: 54

IK: 03

Photometric data

ZIP file
