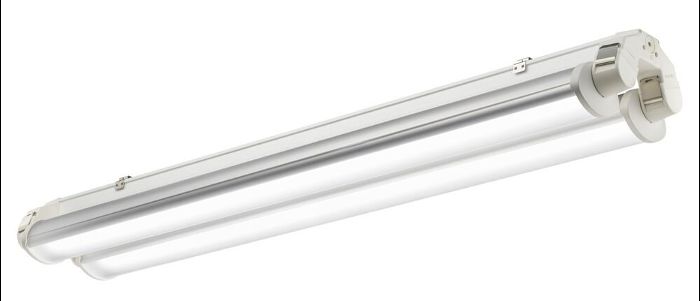

New generation of the proven APOLLO damp-proof reflector luminaire. Elegant socket end pieces made of newly designed PBT. Easy one-man installation of the reflector through integrated plug-in device with directional guides and captive, easy-to-close clips made of stainless steel. All-round closed housing made of white, glass fiber reinforced, flame-retardant, largely acid and alkali-resistant polyester resin, protection class IP65. Reflector swivels 120°, with practical locking in 10° steps. Short, aging-resistant silicone seals. Integrated electronic converter. Particularly robust due to thermal decoupling of LED and converter. Through-wiring up to max. 5x2.5mm² + 2x1.5mm² possible. The permissible ambient temperature decreases by 1°C for every 2A load of the through-wiring. Variable mounting distances through PRACHT-CLAMP-SYSTEM made of stainless steel, suitable for ceiling and horizontal wall mounting, pendant and rail mounting with accessories possible.
Tipo di lampada | Potenza nominale | Flusso totale | Emissione luminosa | CCT | CRI |
---|---|---|---|---|---|
LED | 172 W | 25000 lm | 145 lm/W | 4000 K | 80 |
Tipo di montaggio
Montaggio a soffitto
Forma e Dimensioni
Lunghezza: 1560 mm
Larghezza: 232 mm
Altezza: 142 mm
Peso: 4,7 kg
Regolazione
Orientabile
Cablaggio / Dimming
Potenza sistema: 172 W
Classe di protezione: I
Grado di protezione
IP: 65
IK: 08
Altri dati significativi
Range temperatura: -20...40 °C

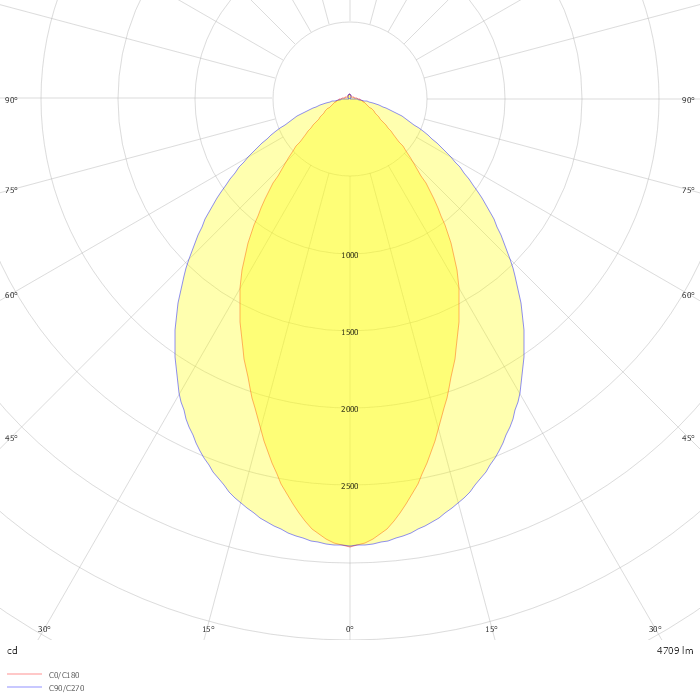

Photometric data
ZIP file
