Scheda tecnica

COLLINE X TERRANO H60.120 4400LM 840 II KL. CZARNY 60D (40W)

414688

LENA LIGHTING

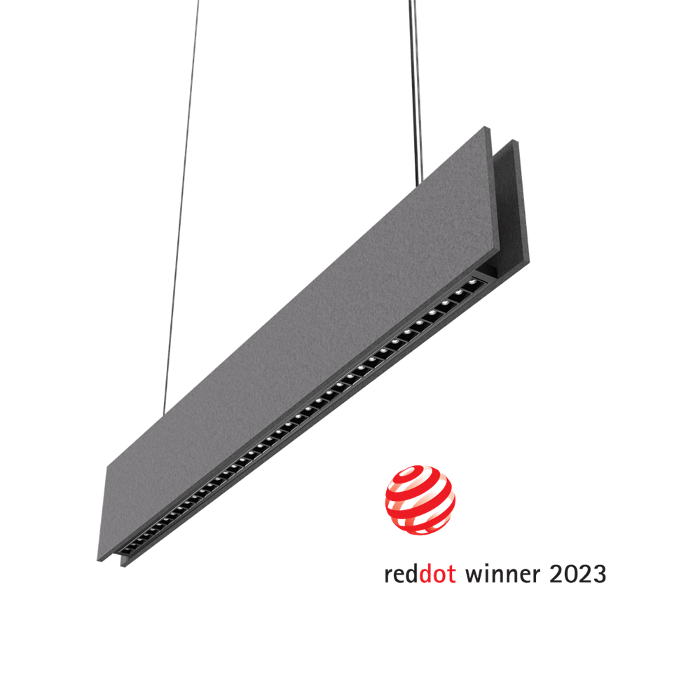

Immagine prodotto 1: COLLINE X TERRANO H60.120 4400LM 840 II KL. CZARNY 60D (40W)
Immagine prodotto 1: COLLINE X TERRANO H60.120 4400LM 840 II KL. CZARNY 60D (40W)

Immagine prodotto 1: COLLINE X TERRANO H60.120 4400LM 840 II KL. CZARNY 60D (40W)



IP
20

IK
03

414688 COLLINE X TERRANO H60.120 4400LM 840 II KL. CZARNY 60D (40W) Acoustic lamps created by Lena Lighting and Acustio. They provide, in addition to a spectacular design effect, glare-free lighting that is friendly to the senses (UGR ranges from 12 - 19) and sound attenuation at the level of high-class sound absorption. The luminaire is made of a triple layer of felt, which makes it durable while maintaining its softness. In addition, it can be coated with a layer of nano-silver in accordance with Acustio's proprietary brand technology - NanoFelt Ag. It provides high protection against the deposition of bacterial particles on the surface. Lighting, on the other hand, is based on energy-saving LED modules that emit light in two colors 4000K or 3000K (on request). It is also available with DALI control, allowing the light output to be adjusted to outdoor conditions, and compatibility with Lena Lighting's proprietary Clue control system. It allows you to set light scenes, dim lamps or program individual light output settings for individual lamps and group them together - all from an app on your phone or from the control panel. The modular design of Colline x Terrano, a choice of different acoustic panel embossings and a wide range of colors provide unlimited personalization possibilities.

Tipo di lampada Potenza nominale Flusso totale Emissione luminosa CCT CRI
LED 40 W 4400 lm 110 lm/W 4000 K 80
COLLINE X TERRANO H60.120 4400LM 840 II KL. CZARNY 60D (40W)

COLLINE X TERRANO H60.120 4400LM 840 II KL. CZARNY 60D (40W)

Emissione luce 1 (integrata)

LED

Tipo di montaggio

Sospeso

Forma e Dimensioni

Lunghezza: 1115 mm

Larghezza: 38 mm

Altezza: 598 mm

Regolazione

Fisso

Corpo: colore / materiale

Materiale: Opaca

Colore del corpo: Nero

Cablaggio / Dimming

Potenza sistema: 40 W

Reattore: ECG

Classe di protezione: II

Grado di protezione

IP: 20

IK: 03

Marcatura: CE

Altri dati significativi

Range temperatura: -10...35 °C

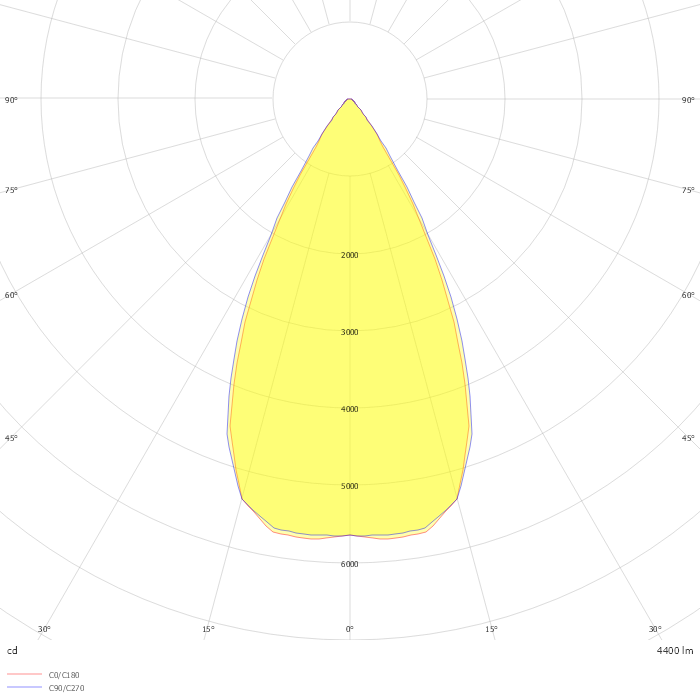

Photometric data

ZIP file
