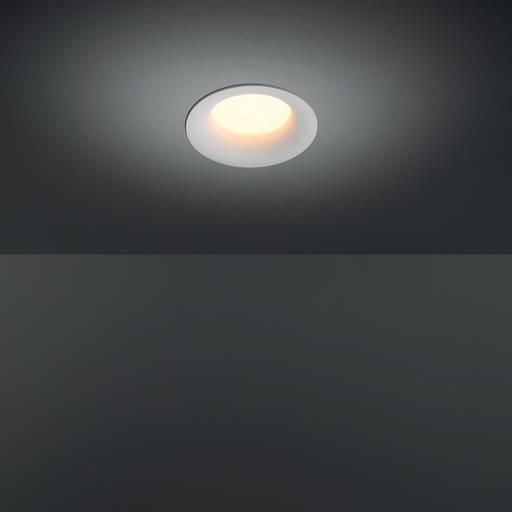

Smart lighting family Smart Cake, Smart Lotis and Smart Kup form a new generation of spotlights which combine technical ingenuity with timeless design. This family's styling is based on our most popular designs. In concrete terms, the fittings consist of a module which can be combined with one of three trims to suit your requirements. The new spotlights can be combined with Smart Mask or Smart surface box to form the perfect solution for any interior. What you get is a LED module with a different finish. The light flows over the edges of the Smart Cake like its bigger sister.
Configurazioni disponibili | Potenza nominale | Flusso | Emissione luminosa | CCT | CRI |
---|---|---|---|---|---|
1 x LED | 23,6 W | 1943 lm | 45 lm/W | 2700 K | 90 |
1 x LED | 11 W | 1065 lm | 53 lm/W | 2700 K | 90 |
1 x LED | 16,25 W | 1461 lm | 49 lm/W | 2700 K | 90 |
Tipo di montaggio
Incasso a soffitto
Forma e Dimensioni
Altezza: 5 mm
Diametro: 115 mm
Regolazione
Fisso
Cablaggio / Dimming
Potenza sistema: 11-23,6 W
Classe di protezione: II
Grado di protezione
IP: 54

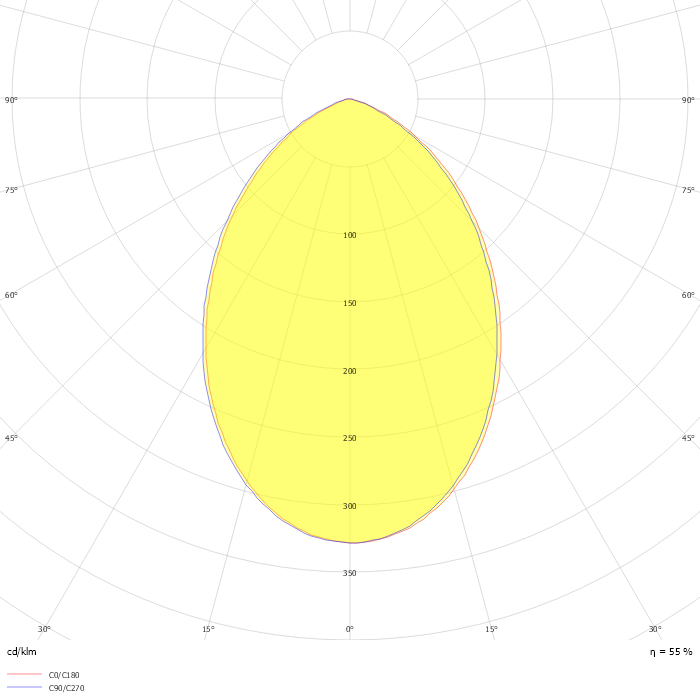

Photometric data
ZIP file
