Scheda tecnica

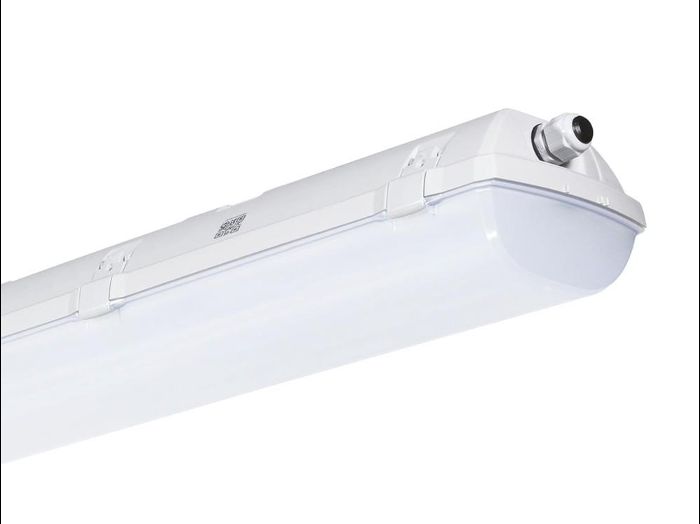

FUTURA 2.5ft HE PC Al 16000/840 3F

11043

TREVOS

unique design, resistant against humidity and dust, with IP66 enclosure rating and built-in aluminium heat sinks; high-efficiency light fitting with sulphur-resistant LED modules; optimal mounting height: 3.5 to 10 m; ON/OFF electronic driver (AC, DC on demand); Body: grey PC (high mechanical resistance, UV stability, RAL 7035); Diffuser: translucent PC (high mechanical resistance, UV stability); Reflector: steel sheet, white (RAL 9003); Clips: polyamide + 15 % fibreglass; Sealing: polyurethane (PUR), foam-filled base groove; Connection: screwless five-pole terminal block, 5-wire connecting cabling for feed-through installation (1.5 mm2 cross-section, 2.5 mm2 available on demand); Power: 101,2 W; Luminaire flux: 18240 lm; Lifetime: L90/B10; 50000 hours; Impact strength: IK10; Ambient temperature: -25|35 °C; Weight: 3,25 kg;

Tipo di lampada Potenza nominale Flusso totale Emissione luminosa CCT CRI
LED 101,2 W 19400 lm 192 lm/W 4000 K 80
FUTURA 2.5ft HE PC Al 16000/840 3F

FUTURA 2.5ft HE PC Al 16000/840 3F

Emissione luce 1 (integrata)

LED

Tipo di montaggio

Montaggio a soffitto

Forma e Dimensioni

Lunghezza: 1452 mm

Larghezza: 145 mm

Altezza: 112 mm

Regolazione

Fisso

Corpo: colore / materiale

Materiale: Plastica

Colore del corpo: Grigio argento, Bianco

Designer: TREVOS

Cablaggio / Dimming

Potenza sistema: 101,2 W

Reattore: ECG

Classe di protezione: I

Grado di protezione

IP: 66

IK: 10

Marcatura: CE, ENEC

Altri dati significativi

Range temperatura: -25...35 °C

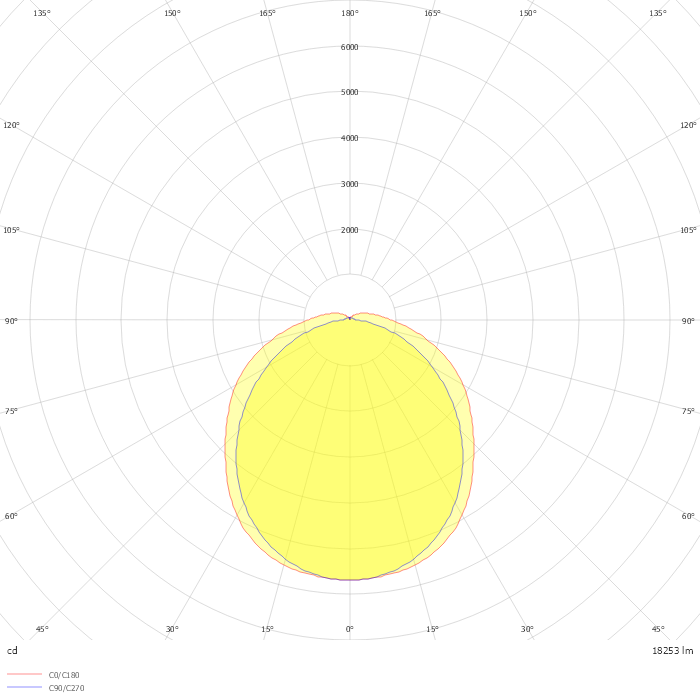

Photometric data

ZIP file
