Scheda tecnica

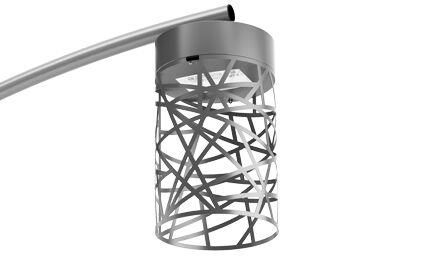

LAMPION MEGA

LAMPION-Mega-CIR06-32LED-5700K-350 mA

Ragni

Designed for decorative lighting, Lampion is a range of cylindrical light fixtures in the form of an openwork stainless steel cage suspended from an aluminum electrical housing and protected by IK08 tempered glass. To provide atmospheric lighting, the Lampion range has an Zhaga-compatibles IP66 optical unit and a driver integrated into the head of the luminaire which allows, via a wide range of color temperatures and photometries, to precisely meet the lighting needs of the project while ensuring compliance with the regulations against light pollution. These Class I and II luminaires create ambiance through the play of light produced by the optional customizable cut-out patterns.

Configurazioni disponibili Potenza nominale Flusso Emissione luminosa CCT CRI
1 x LED 34,6 W 3721 lm 108 lm/W 5700 K 70
LAMPION MEGA

LAMPION MEGA

Emissione luce 1

1 x LED

Tipo di montaggio

Testapalo

Forma e Dimensioni

Altezza: 500 mm

Diametro: 500 mm

Regolazione

Fisso

Cablaggio / Dimming

Potenza sistema: 34,6 W

Classe di protezione: I

Grado di protezione

IP: 66

IK: 08

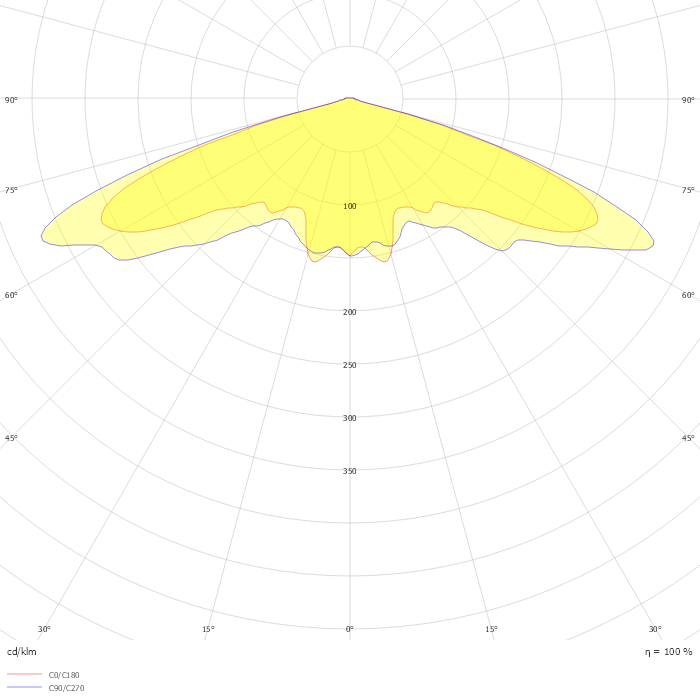

Photometric data

ZIP file
