Scheda tecnica

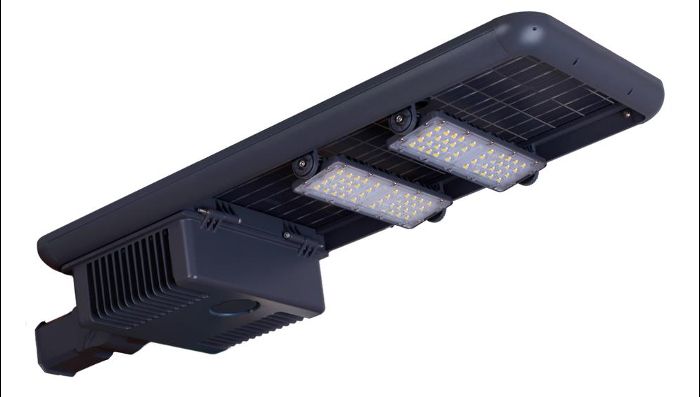

LED PERFORMANCE SOLAR STREET 40W 740

4058075562998

LEDVANCE

LED Performance Solar Streetlight is All-in-one design, no wiring required, flexible installation. Extremely high system luminous efficacy 185lm/W to maximize the battery performance. Rotatable LED module, ensures the light to reach the target surface amply. Grade A bifacial monocrystalline solar panel, higher sunlight absorbing efficiency than single-sided monocrystalline solar panel. Adjustable install arm, multi-angle adjustment, make solar panel easy to apply to sunlight trajectory from different directions. System wattage 10W, 20W, 30W, 40W, 50W and 60W. LiFeP04 battery charge-discharge cycle 2000 times. Battery overcharge, overdischarge, overheat and short circuit protections. With motion sensor and without motion senser versions available Meet ME4 road lighting class requirement thanks to professional optical design. Intelligent controller, rainy day intelligent delay. Automatically on/off according to brightness of daylight. IP66 rated. CB certificate available.

Tipo di lampada Potenza nominale Flusso totale Emissione luminosa CCT CRI
LED 40 W 7400 lm 185 lm/W 4000 K 80
LED PERFORMANCE SOLAR STREET 40W 740

LED PERFORMANCE SOLAR STREET 40W 740

Emissione luce 1 (integrata)

LED

Tipo di montaggio

Testapalo

Forma e Dimensioni

Lunghezza: 1016 mm

Larghezza: 358 mm

Altezza: 136 mm

Regolazione

Orientabile

Cablaggio / Dimming

Potenza sistema: 40 W

Grado di protezione

IP: 66

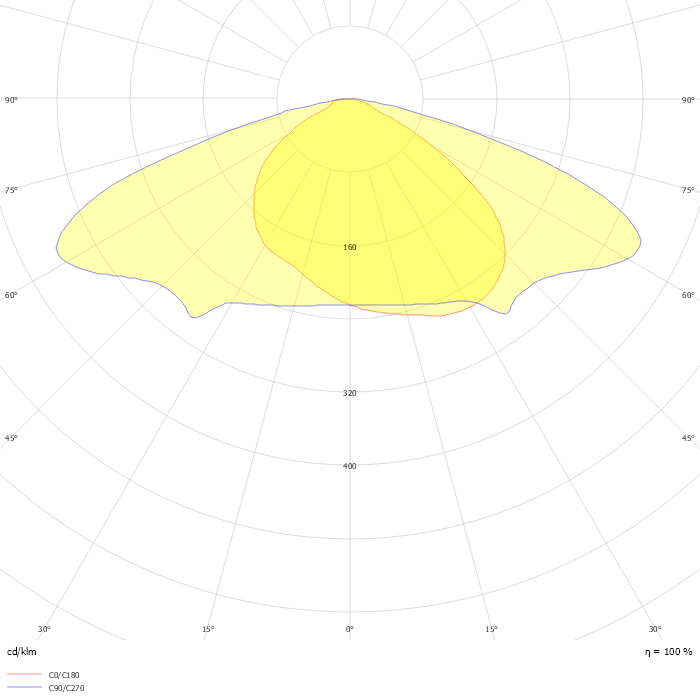

Photometric data

ZIP file
