Scheda tecnica

X-LINE LED 4400 PLX EDD 24 830 LINE-1S / CONNECTOR TYPE-LA 600/600

19.4176.7513.24

LUXIONA

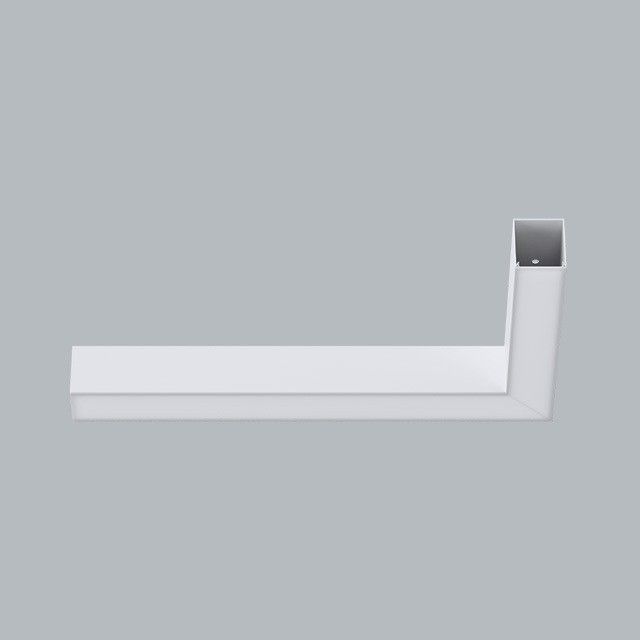

Immagine prodotto 1: X-LINE LED 4400 PLX EDD 24 830 LINE-1S / CONNECTOR TYPE-LA 600/600
Immagine prodotto 1: X-LINE LED 4400 PLX EDD 24 830 LINE-1S / CONNECTOR TYPE-LA 600/600

Immagine prodotto 1: X-LINE LED 4400 PLX EDD 24 830 LINE-1S / CONNECTOR TYPE-LA 600/600



IP
44

IK
04

Indoor luminaire. Assembly: directly mounted to ceiling construction or surface mounted on slings. The body material is aluminum. Colour - anodised aluminum. Dimensions: 593 x 593 x 71 mm. Diffuser: PLX (PMMA opal). The efficiency of the optical system is 66,66%. Beam angle: (C0-C180) / (C90-C270) - 109° / 107,2°. Light source type: LED. Colour of the light 3000 K. SDCM=3. CRI>80. Lifetime of LED sources: 100000 (1) / 147000 (2) h L80/B10 (1) / L70/B50 (2). Luminaire luminous flux: 2937 lm. Power of luminaire: 24,7 W. Luminaire's light efficiency: 118,9 lm/W. Driver: DIM DALI (EDD). Voltage 220..240 V, 50..60 Hz. Power factor cosφ: >0,95. Circuit load capacity: 17 (B10), 28 (B16), 26 (C10), 41 (C16). Operating temperature range: 5 ÷ 30° C. Protection degree: IP44. Impact resistant: IK04. Protection against electric shock: I. The luminaire can be made in CLO (Constant Lumen Output) version.

Configurazioni disponibili Potenza nominale Flusso Emissione luminosa CCT CRI
2 x LED 12,35 W 2203 lm 178 lm/W 3000 K 80
X-LINE LED 4400 PLX EDD 24 830 LINE-1S / CONNECTOR TYPE-LA 600/600

X-LINE LED 4400 PLX EDD 24 830 LINE-1S / CONNECTOR TYPE-LA 600/600

Emissione luce 1

2 x LED

Tipo di montaggio

Montaggio a soffitto

Forma e Dimensioni

Lunghezza: 593 mm

Larghezza: 593 mm

Altezza: 71 mm

Regolazione

Fisso

Corpo: colore / materiale

Colore del corpo: Grigio argento

Cablaggio / Dimming

Potenza sistema: 24,7 W

Dimmer: DALI

Classe di protezione: I

Grado di protezione

IP: 44

IK: 04

Altri dati significativi

Range temperatura: 5...30 °C

Photometric data

ZIP file
