Scheda tecnica

Modul Q 900 Project Indirect

546-837

Nimbus

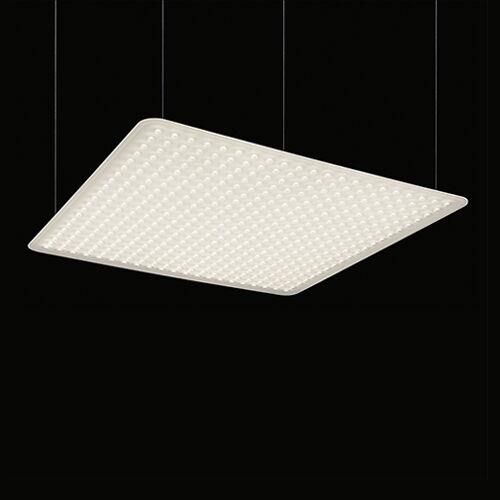

LED ceiling luminaire for suspended mounting, closed luminaire housing, cover on top made of plastic, high gloss white (RAL 9016), diffuser panel made of acrylic glass with conical indentations for directing the light and reducing glare, 900 × 900 mm, 6 mm thick, with rounded corners and all round chamfer, both sides matt, non-glare in accordance with DIN EN 12464-1, suitable for workplace lighting, light distribution approx. 90 % direct, 10 % indirect beam, wide beam, version for 24[di più]

Configurazioni disponibili Potenza nominale Flusso Emissione luminosa CCT CRI
1 x LED 63,2 W 7120 lm 113 lm/W 4000 K 85
Modul Q 900 Project Indirect

Modul Q 900 Project Indirect

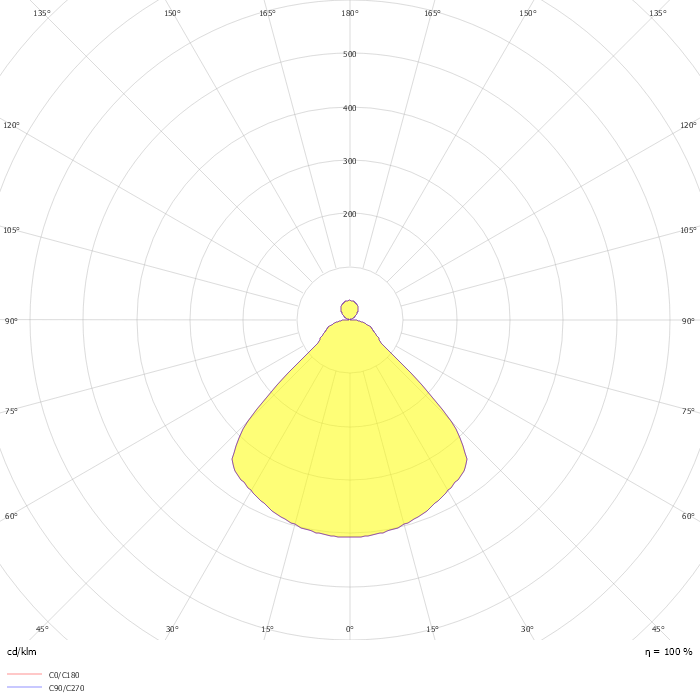

Emissione luce 1

1 x LED

LOR:100%
ULOR:9%
Flusso totale:7116 lm
Potenza totale:63,2 W

Tipo di montaggio

Sospeso

Forma e Dimensioni

Lunghezza: 900 mm

Larghezza: 900 mm

Altezza: 27 mm

Regolazione

Fisso

Corpo: colore / materiale

Colore del corpo: Bianco

Cablaggio / Dimming

Potenza sistema: 63,2 W

Grado di protezione

IP: 20
