Scheda tecnica

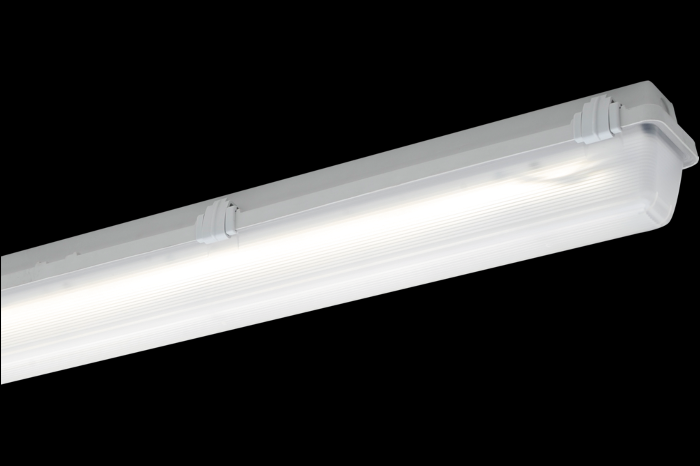

161 LED damp-proof light fitting

161 12L42 H50 PC (16117 0610)

Schuch

LED damp-proof light fitting, 27 W, 4240 lm, 157 lm/W, Class I, IP65, symmetrical wide beam, 4000 K, CRI≥ 80, Ta -20 °C/+50 °C, L70>100000 h (@ Ta max), L80>70000 h (@ Ta max), L90>50000 h (@ Ta 25°C), Diffuser PC satined, Closure Plastic, Housing Glass fibre reinforced polyester, Colour grey. Sturdy LED damp-proof light fitting with highly impact-resistant glass fibre reinforced polyester housing and frosted diffuser with high impact resistance. Captive clips, multi-part, incl. two safety clips, silicone gasket. Powder-coated aluminium reflector with highly efficient Zhaga LED modules and ECG with overload and short circuit protection. Resource-saving and environmentally friendly thanks to interchangeability of components (no disposable light fitting). Length 1272,00 mm, Width/Diameter 116,00 mm, Height 125,00 mm, Net weight 2,59 kg.

Tipo di lampada Potenza nominale Flusso totale Emissione luminosa CCT CRI
LED 27 W 4240 lm 157 lm/W 4000 K 80
161 LED damp-proof light fitting

161 LED damp-proof light fitting

Emissione luce 1 (integrata)

LED

Tipo di montaggio

Montaggio a soffitto, Sospeso, Binario, Montaggio a parete

Forma e Dimensioni

Lunghezza: 1272 mm

Larghezza: 116 mm

Altezza: 125 mm

Regolazione

Fisso

Cablaggio / Dimming

Potenza sistema: 27 W

Classe di protezione: I

Grado di protezione

IP: 65

IK: 09

Marcatura: CE

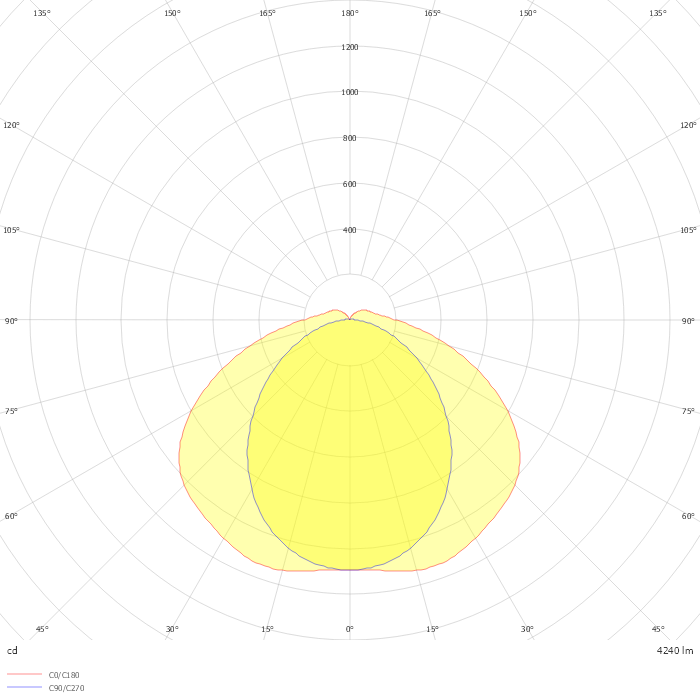

Photometric data

ZIP file
