Scheda tecnica

SHOOTER

9900-A-5-440-XX

Unilamp

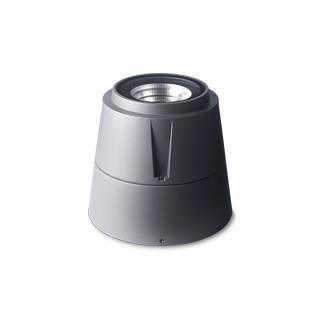

Description SHOOTER is a robust ground-surface uplighter constructed with a robust aluminium housing and use of a thick safety glass cover. It is suitable for installation where a typical in-ground uplighter cannot or should not be used. It is designed to operate with high power LED light source. SHOOTER is protected from dust, water and possible harmful impact. This luminaire can be used to illuminate columns, panels, blocks, and ceilings from the low level. It’s perfectly matched in any architectural environment. Anchor unit for concrete foundation is available as an accessory. Spec • Designed, Manufactured and Tested according to IEC 60598-1, IEC 60598-2-1 and VDE regulations. • LM6 die-cast aluminium body. • Stainless steel screws. • Nano Ceramic surface conversion. • Double layer coating. • Safety glass cover. • Post-cured silicone gasket. • High quality LED module and driver. • High efficiency reflector. • M20 cable gland. • Pre-wired with outdoor cable. • Installation work has to be carried on according to the enclosed product manual.

Configurazioni disponibili Potenza nominale Flusso Emissione luminosa CCT CRI
1 x LED 8,4 W 140 lm 17 lm/W 0 K -49
SHOOTER

SHOOTER

Emissione luce 1

1 x LED

Configurazioni disponibili Potenza nominale Flusso Emissione luminosa CCT CRI
1 x LED 8,4 W 910 lm 108 lm/W 0 K 83
SHOOTER

SHOOTER

Emissione luce 2

1 x LED

Configurazioni disponibili Potenza nominale Flusso Emissione luminosa CCT CRI
1 x LED 8 W 760 lm 95 lm/W 0 K -24
SHOOTER

SHOOTER

Emissione luce 3

1 x LED

Configurazioni disponibili Potenza nominale Flusso Emissione luminosa CCT CRI
1 x LED 6,5 W 280 lm 43 lm/W 0 K -29
SHOOTER

SHOOTER

Emissione luce 4

1 x LED

Tipo di montaggio

Lampada da terra / Dissuasore, Montaggio a pavimento

Forma e Dimensioni

Lunghezza: 295 mm

Larghezza: 295 mm

Altezza: 272 mm

Regolazione

Fisso

Cablaggio / Dimming

Potenza sistema: 40 W

Dimmer: DALI

Classe di protezione: I

Grado di protezione

IP: 67

IK: 07

Photometric data

ZIP file
