Scheda tecnica

Stampa Pendant 800mm (Blue)

8323508

Zero

Light and sound are two equally important factors in creating an environment. So why not combine them thought Cate & Nelson, and thus created Stampa: a sound-absorbing fixture in a friendly, welcoming form. Flexible and adaptable in its elemental structure of laminated textile, Stampa easily changes in size, number of levels, colour and shape. Stampa is availabel as ceiling fixture and pendant. In dimeter 450, 600 or 800mm. With built in LED modules. Standard colour is grey, other colours on request. Finish: Painted metal. Shade in pressed fabric Gabriel/Atlantic grey 60141 alt. blå 66057. Other colors on request. Diffuser in matt acrylic. Up- & downlight. LED info: System power see below. Luminaire Luminous Flux see below. CCT 3000K. SDCM 3. CRI >80 Installation: Pendant, 2 m wire and cable. Connection: Terminal block 5x4m

Tipo di lampada Potenza nominale Flusso totale Emissione luminosa CCT CRI
LED 39 W 4010 lm 103 lm/W 3000 K 80
Stampa Pendant 800mm (Blue)

Stampa Pendant 800mm (Blue)

Emissione luce 1 (integrata)

LED

Tipo di montaggio

Sospeso

Forma e Dimensioni

Lunghezza: 789 mm

Larghezza: 790 mm

Altezza: 233 mm

Regolazione

Fisso

Cablaggio / Dimming

Potenza sistema: 39 W

Dimmer: DALI

Adatto per cablaggio passante

Classe di protezione: I

Grado di protezione

IP: 20

Marcatura: CE

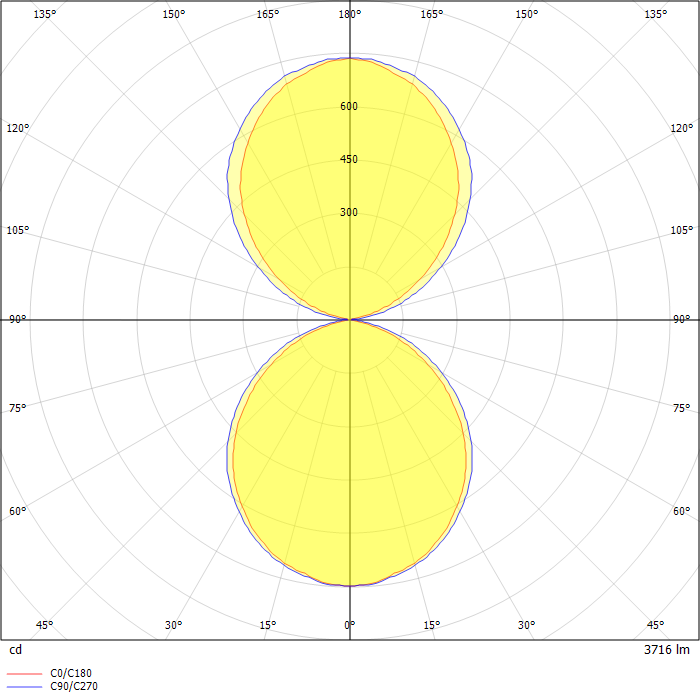

Photometric data

ZIP file
