Scheda tecnica

Q FOUR IN 40° Phase black 4000 K

560-199

Nimbus

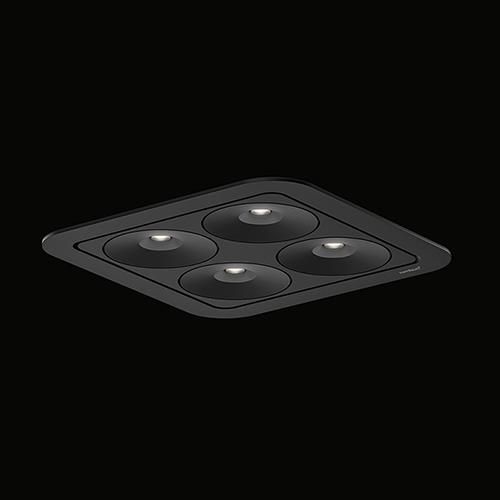

Recessed LED ceiling spot for cavity mounting in a suspended ceiling, 4 integrated Bartenbach lenses for focussing light and reducing glare, narrow beam (beam angle 40° or 80°) for accentuated illumination of surfaces and rooms, the full light performance thus appears on the illuminated area, design formally adapting to the Nimbus families Q ONE, Q FOUR and FRAME, operation by means of an external converter (within the scope of delivery), dimmable via DALI or via trailing/leading edge in combination with a conventional wall dimmer.

Configurazioni disponibili Potenza nominale Flusso Emissione luminosa CCT CRI
1 x LED 14,4 W 850 lm 60 lm/W 4000 K 90
Q FOUR IN 40° Phase black 4000 K

Q FOUR IN 40° Phase black 4000 K

Emissione luce 1

1 x LED

Tipo di montaggio

Incasso a soffitto

Forma e Dimensioni

Lunghezza: 155 mm

Larghezza: 155 mm

Altezza: 52 mm

Regolazione

Fisso

Cablaggio / Dimming

Potenza sistema: 14,4 W

Grado di protezione

IP: 20

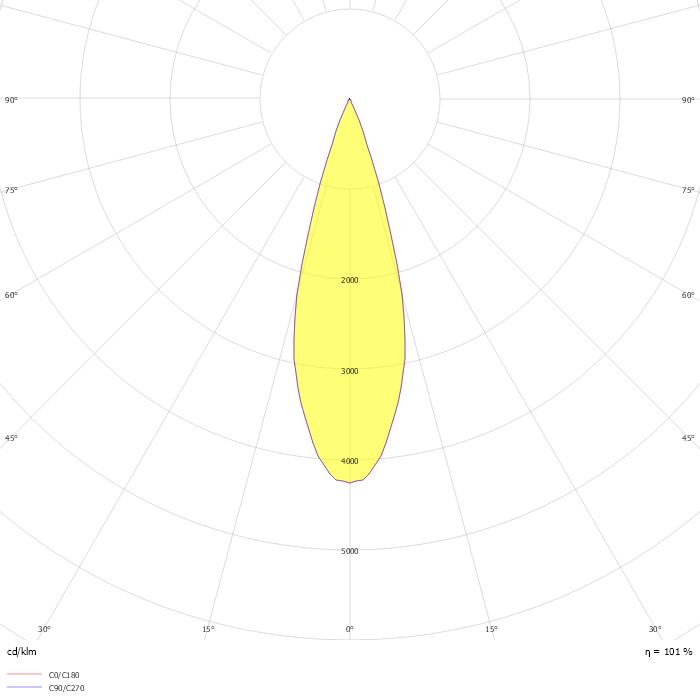

Photometric data

ZIP file
