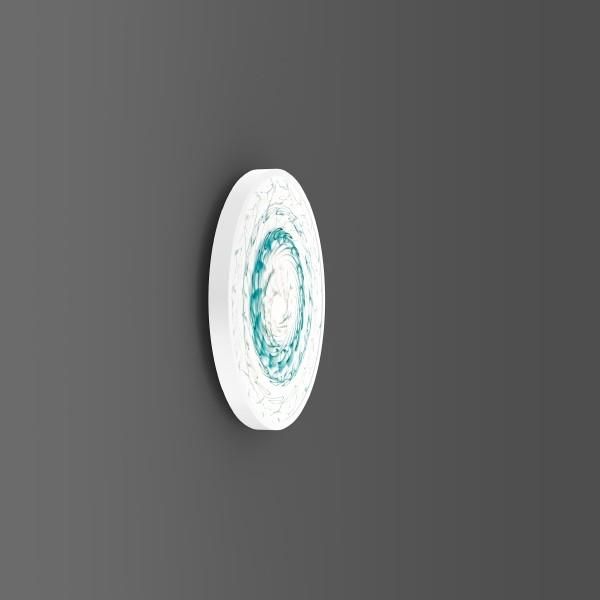

Series: Triona Type of Protection: IP 20 Protection Class: I Voltage: 220 - 240 V / 50 Hz Halterung und Leuchtenrahmen Metall pulverbeschichtet. Diffusorsegmente (Lichtaustritt indirekt) aus vergilbungsfreiem Kunststoff (PMMA) opal. Diffusor (Lichtaustritt direkt) aus handgefertigtem Farbglas FerroMurano blau. Betriebsgerät eingebaut. Leuchtmittel (LED) im Lieferumfang enthalten. Mit smart+free Bluetooth-Steuerbaustein zur drahtlosen Vernetzung und Bedienung von Leuchten. Available Colours: white Type of Installation: Ceiling mounting, Wall (surface) Dimensions: D 681, H 88 Lamp: LED Life time: 50000 h (L70/B10) Colour Temperature: 3000K Socket 1: without socket Operating Mode Lamp 1: Dimmable Bluetooth converter Safety Marks: F-mark Impact Protection: IK02 (0,20 Joule) Luminaire flux LED: 5150lm System power: 68W Beam Angle: 113° Number of fittings B10A: 6 Number of fittings B16A: 10 Inrush current: 40A Unified Glare Ratio: 20,2 EEC: A++
| Tipo di lampada | Potenza nominale | Flusso totale | Emissione luminosa | CCT | CRI |
|---|---|---|---|---|---|
| LED | 90 W | 5150 lm | 57 lm/W | 3000 K | 80 |
Tipo di montaggio
Montaggio a parete
Forma e Dimensioni
Altezza: 52 mm
Diametro: 681 mm
Regolazione
Fisso
Cablaggio / Dimming
Potenza sistema: 90 W
Grado di protezione
IP: 20
IK: 02
Photometric data
ZIP file
