Scheda tecnica

M52 - SPY 52 SOFT 93020 MDL

24451 9020

Delta Light

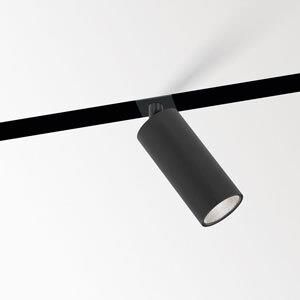

Immagine prodotto 1: M52 - SPY 52 SOFT 93020 MDL

IP
20

Luminaire, low voltage systems low voltage system mounted (indoor use) from Deltalight, named M52 - SPY 52 SOFT 93020 MDL, available in the colour(s): black, flemish bronze, flemish gold, gold coloured, white. This luminaire can be used with the following 48V magnetic lighting system(s): SPLITLINE M52 - PROFILE. This luminaire is equipped with LED array 10,2W / CRI>90 (R9: 50) / 3000K-1800K / 1038lm with build-in converter to operate on a voltage of 48V-DC. Dimming protocol: MDL = 1-10V or DALI or push button. Light distributor: reflector 20°.

Dettagli tecnici
Download

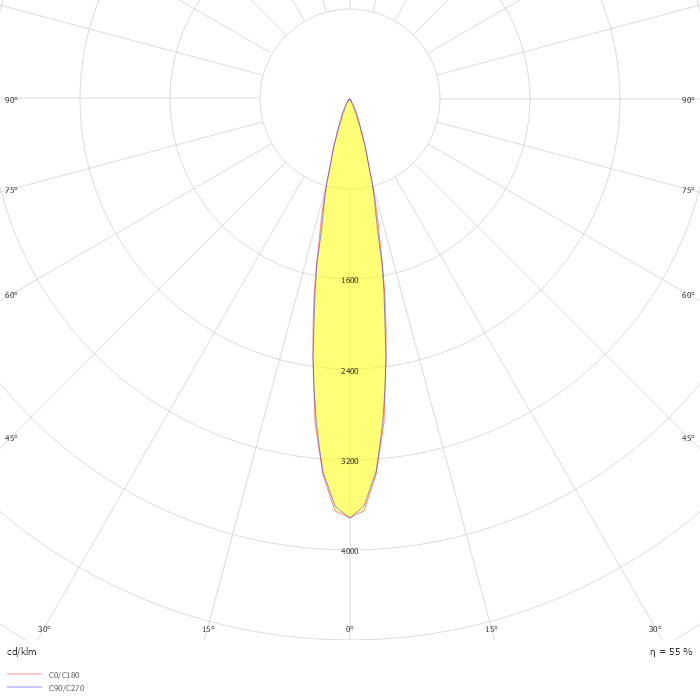

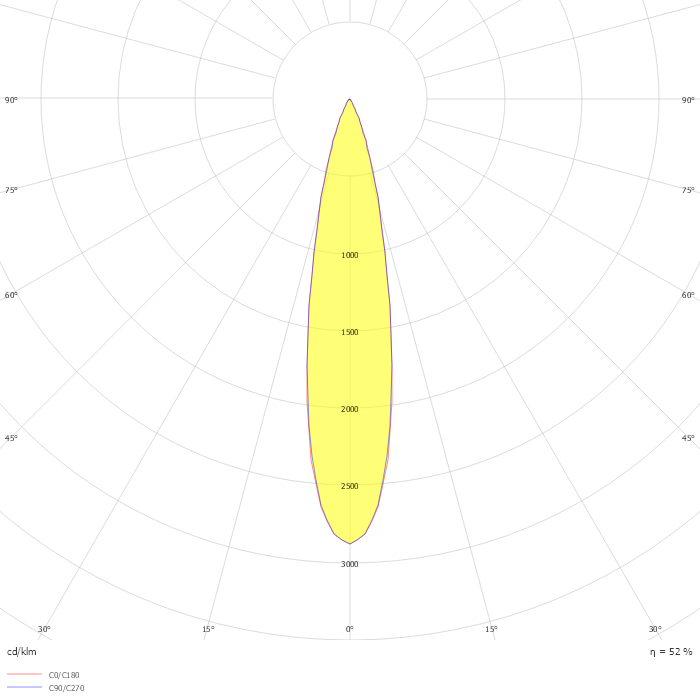

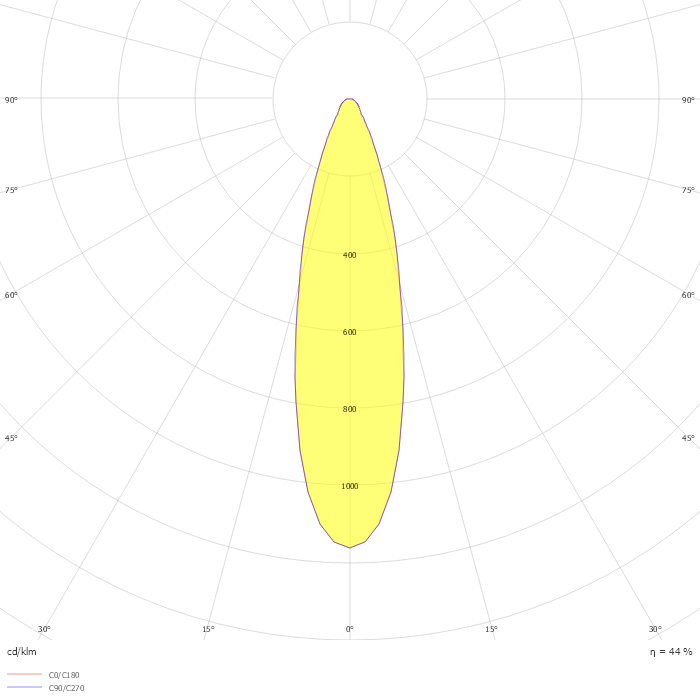

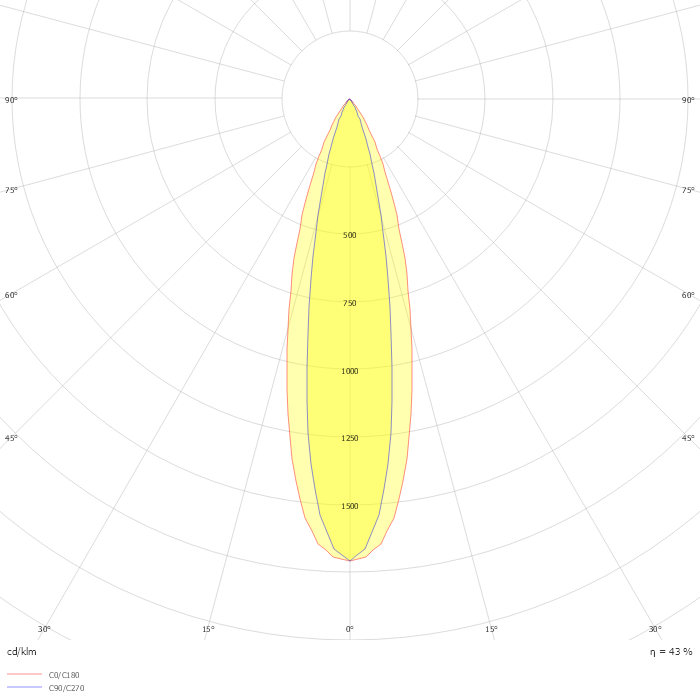

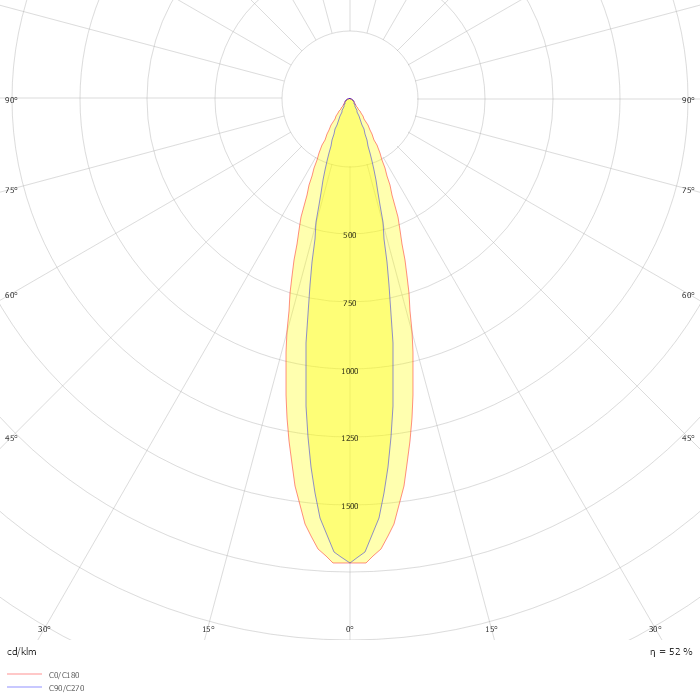

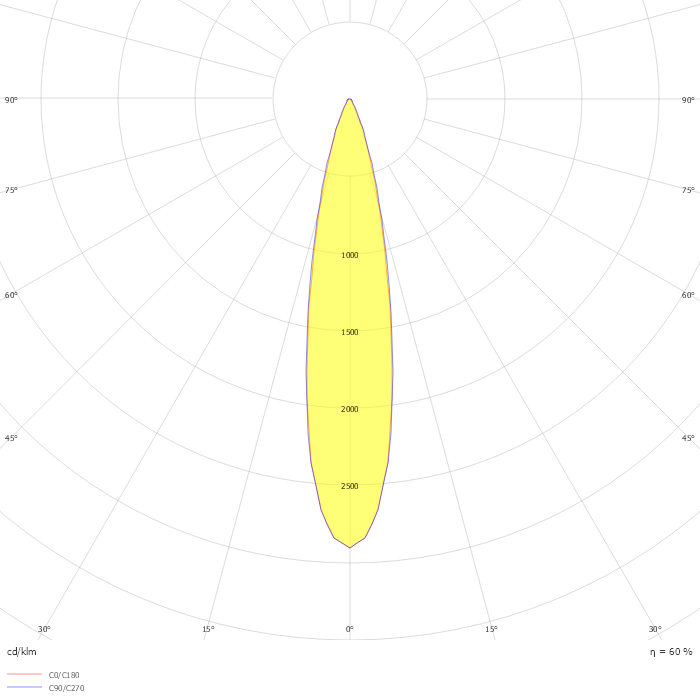

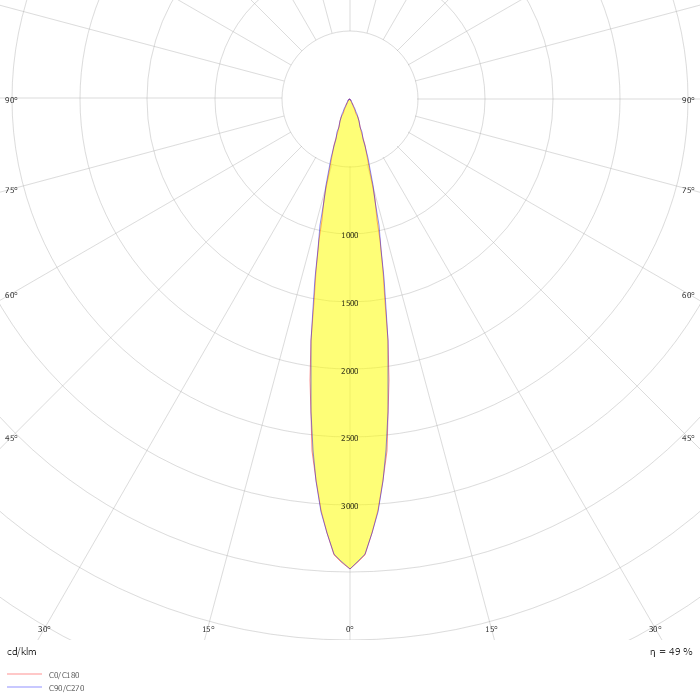

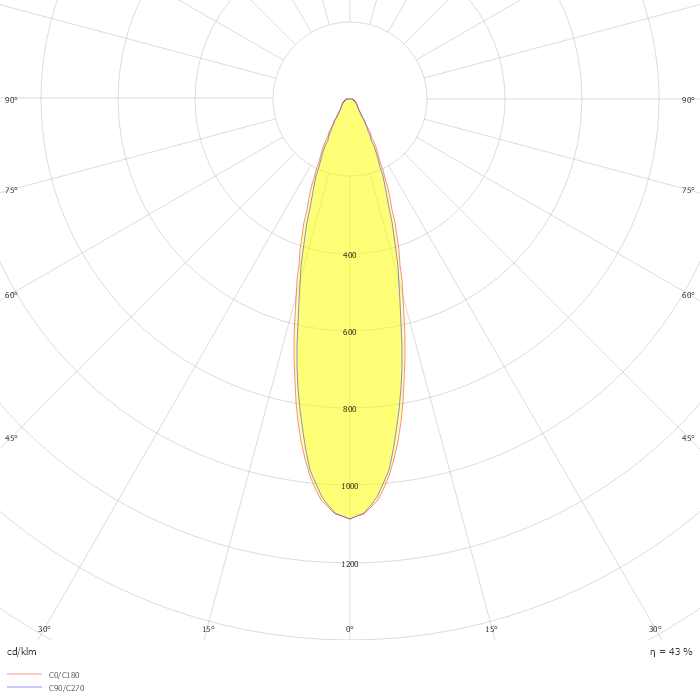

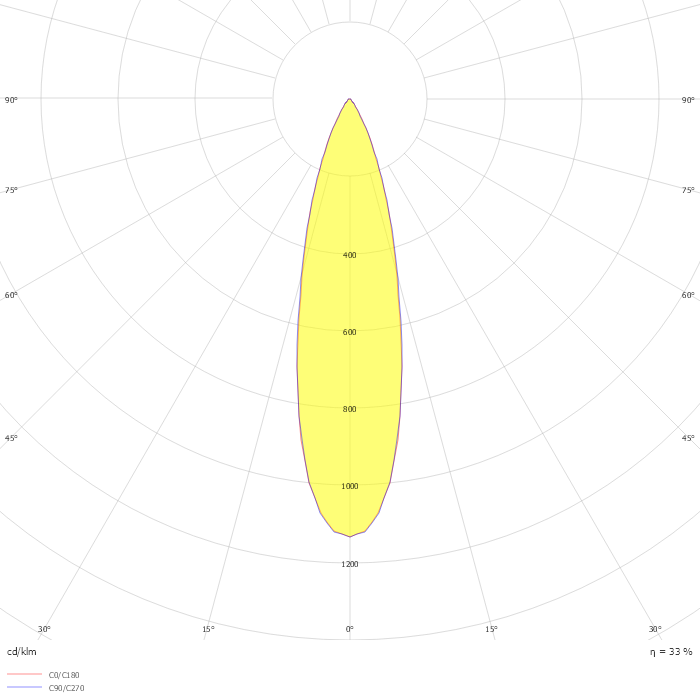

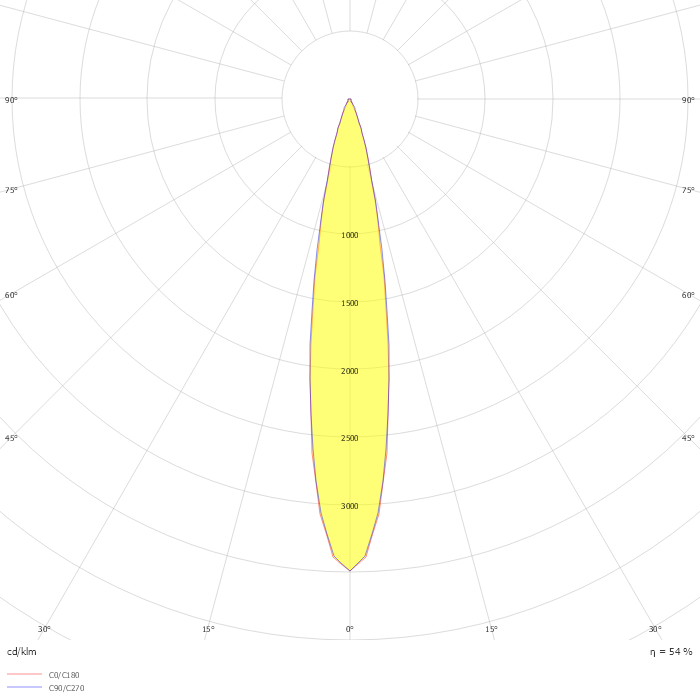

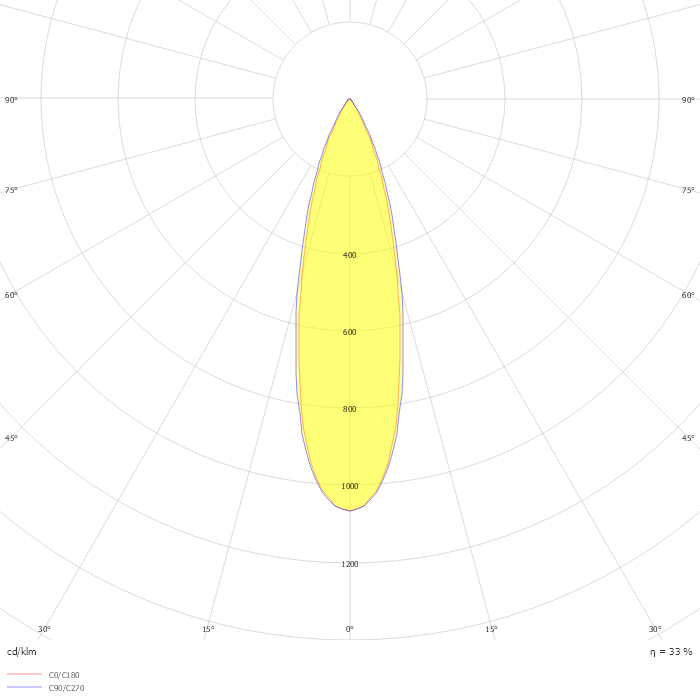

Emissione luce 1

Configurazioni disponibili	Potenza nominale	Flusso	Emissione luminosa	CCT	CRI
1 x LED	10,2 W	1038 lm	102 lm/W	1800 K	90
1 x LED	10,2 W	1038 lm	102 lm/W	1800 K	90
1 x LED	10,2 W	1038 lm	102 lm/W	1800 K	90
1 x LED	10,2 W	1038 lm	102 lm/W	1800 K	90
1 x LED	10,2 W	1038 lm	102 lm/W	1800 K	90
1 x LED	10,2 W	1038 lm	102 lm/W	1800 K	90
1 x LED	10,2 W	1038 lm	102 lm/W	1800 K	90
1 x LED	10,2 W	1038 lm	102 lm/W	1800 K	90
1 x LED	10,2 W	1038 lm	102 lm/W	1800 K	90
1 x LED	10,2 W	1038 lm	102 lm/W	1800 K	90
1 x LED	10,2 W	1038 lm	102 lm/W	1800 K	90
1 x LED	10,2 W	1038 lm	102 lm/W	1800 K	90
1 x LED	10,2 W	1038 lm	102 lm/W	1800 K	90
