Scheda tecnica

Iris Surface Cone 50º

AV16-18X9X3OSO7

LedsC4

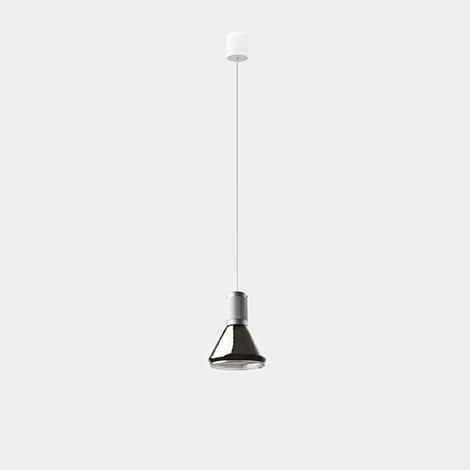

LedsC4 Iris Surface Cone 50º AV16-18X9X3OSO7 Pendant for indoor use. Structure material: Aluminium. Structure finish: White/Grey. Warranty: 5 Years. Product net weight (Kg): 0.62 Product width or diameter (mm): 145 Product height (mm): 1735 Class 2. IP: IP43. LED. No. of lampholders or LEDs: 1. LED brand: CREE. Maximum power of light source: 16.4W. Colour temperature: 4000K. Colour rendering index: 92. MacAdam Steps: 2. Hours of life: 50.000h L80B20. UGR: 27.4. Photobiological risk: RG2. % de Flickering: +/- 5%. Real flux (lm): 2378. Real lm/W: 129. Voltage / frequency range: 110-277/50-60Hz. Voltage: 33,7. Equipment included: Yes. Total power: 18.5. Power factor: 0.95. Dimmable equipment included: ON-OFF.

Configurazioni disponibili Potenza nominale Flusso Emissione luminosa CCT CRI
1 x LED 18,5 W 2378 lm 129 lm/W 4000 K 90
Iris Surface Cone 50º

Iris Surface Cone 50º

Emissione luce 1

1 x LED

Tipo di montaggio

Sospeso, Lampada da tavolo

Forma e Dimensioni

Lunghezza: 120 mm

Larghezza: 120 mm

Altezza: 147 mm

Regolazione

Fisso

Cablaggio / Dimming

Potenza sistema: 18,5 W

Classe di protezione: II

Grado di protezione

IP: 43

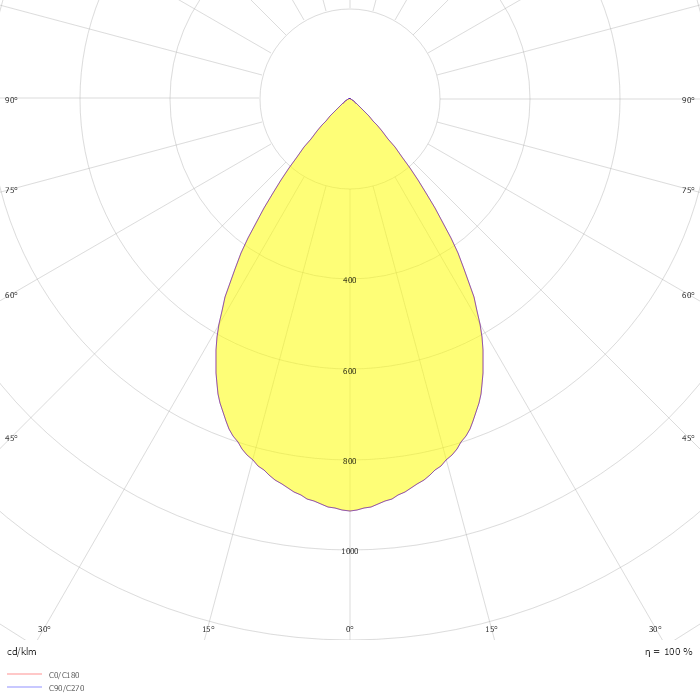

Photometric data

ZIP file
