Scheda tecnica

LD59 1.6W 500mA WWB

LD59-C1-500-WWB

LightGraphix

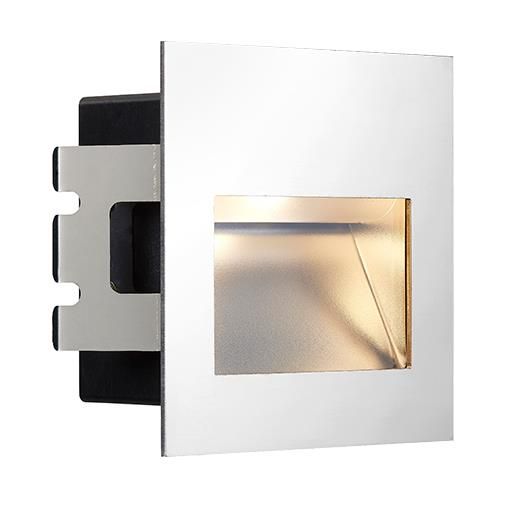

LD59 90mm x 90mm Recessed Wall Light. Constant Current. 1.6W 500mA 120° Wide beam. LD59 replaces the LD10234 and offers the same low glare and broad illumination with an IP67 rating for both interior and exterior projects. The square recessed wall light uses a single LED for a soft edge beam with no multiple shadows. It comes as standard with a 1.5mm polished & passivated 316 stainless steel bezel with no visible fixings. The specular reflector gives a diffused wash of light onto a path or floor with minimal glare.

Tipo di lampada Potenza nominale Flusso totale Emissione luminosa CCT CRI
LED 1,6 W 101 lm 63 lm/W 3000 K 93
LD59 1.6W 500mA WWB

LD59 1.6W 500mA WWB

Emissione luce 1 (integrata)

LED

Tipo di montaggio

Incasso a parete

Forma e Dimensioni

Lunghezza: 38 mm

Larghezza: 90 mm

Altezza: 90 mm

Regolazione

Fisso

Corpo: colore / materiale

Materiale: Opaca, Bronzo, Vetro, Ottone, Lucida, Acciaio inox

Colore del corpo: Nero, Bianco, Antracite / Grafite, Grigio argento

Cablaggio / Dimming

Potenza sistema: 1,6 W

Dimmer: Dimmerabile 0..10V, Dimmerabile 1..10V, DMX, DALI

Classe di protezione: III

Grado di protezione

IP: 65

Marcatura: CE

Altri dati significativi

Range temperatura: -20...35 °C

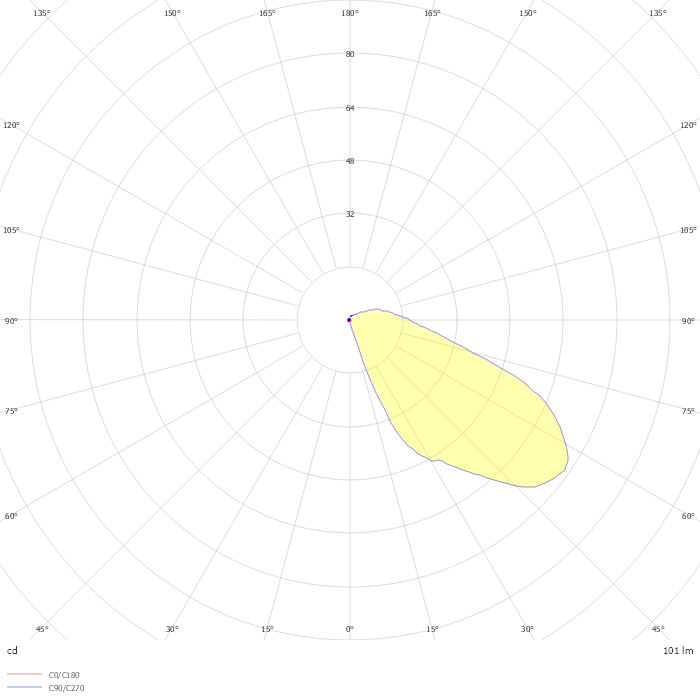

Photometric data

ZIP file
