Scheda tecnica

TYTAN STEEL LED PRO 1188mm 14500lm 840 IP66 DAN 84W

595486

LENA LIGHTING

Immagine prodotto 1: TYTAN STEEL LED PRO 1188mm 14500lm 840 IP66 DAN 84W
Immagine prodotto 1: TYTAN STEEL LED PRO 1188mm 14500lm 840 IP66 DAN 84W

Immagine prodotto 1: TYTAN STEEL LED PRO 1188mm 14500lm 840 IP66 DAN 84W



IP
66

IK
06

595486 TYTAN STEEL LED PRO 1188mm 14500lm 840 IP66 DAN 84W Tytan Steel LED Pro is an innovative solution in the category of classic hermetic luminaires, combining functionality with modern design. All the technical advantages of a traditional hermetic are enclosed in an elegant, low-profile housing, enriched with advanced optics that make the Tytan Steel LED Pro a versatile luminaire. It will prove its worth in both the simplest applications and advanced industrial solutions. The product is distinguished by very fast installation and low purchase and operating costs (192 lm/W). The reliable components used in the lamp minimise the need for servicing. The Tytan Steel LED Pro lamp is made of steel for exceptional durability and, thanks to its U-shaped profile design, retains the lightness typical of plastic luminaires, making it easy to install and not weighing down load-bearing structures.

Tipo di lampada Potenza nominale Flusso totale Emissione luminosa CCT CRI
LED 84 W 14500 lm 173 lm/W 4000 K 80
TYTAN STEEL LED PRO 1188mm 14500lm 840 IP66 DAN 84W

TYTAN STEEL LED PRO 1188mm 14500lm 840 IP66 DAN 84W

Emissione luce 1 (integrata)

LED

Tipo di montaggio

Sospeso, Montaggio a soffitto

Forma e Dimensioni

Lunghezza: 1188 mm

Larghezza: 57 mm

Altezza: 45 mm

Regolazione

Fisso

Corpo: colore / materiale

Materiale: Acciaio inox

Colore del corpo: Bianco

Cablaggio / Dimming

Potenza sistema: 84 W

Reattore: ECG

Classe di protezione: I

Grado di protezione

IP: 66

IK: 06

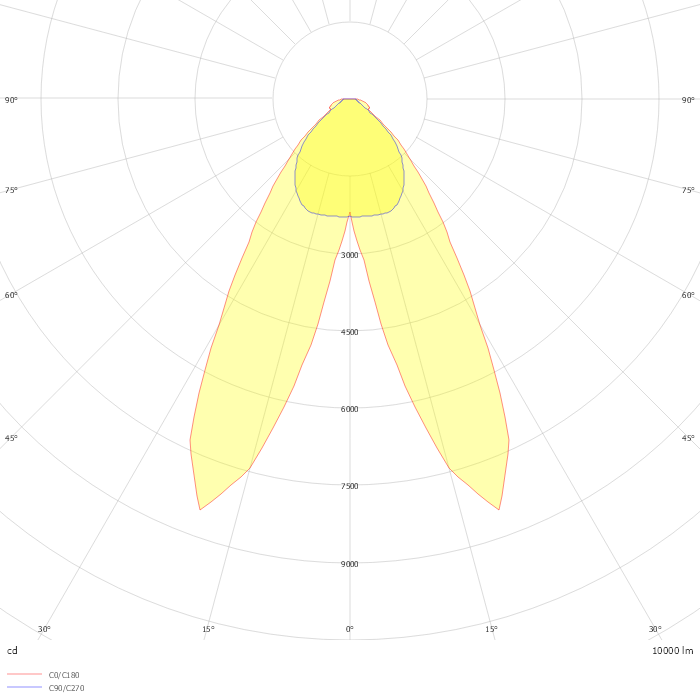

Photometric data

ZIP file
