Scheda tecnica

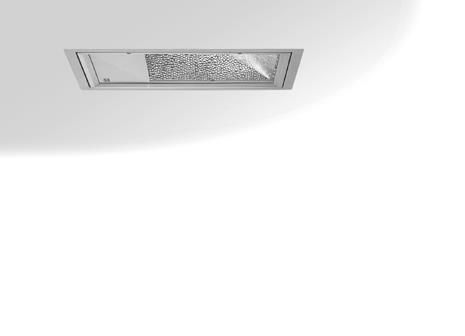

SBR440-T-70/NE[A.K]

138-9591

we-ef

IP54. Marine-grade aluminium alloy body. 5CE superior corrosion protection including PCS hardware. Silicone rubber gasket. Safety glass lens. Anodised aluminium reflector. 40°C ambient temperature rating for versions up to 250 W. Integral HPF control gear in thermally separated compartment. LPF versions are available on request. Optional (factory-installed) LIS lamp ignition sensor activates an integral tungsten halogen lamp following a cold start or a momentary power interruption. Deactivates the lamp once the main H.I.D. lamp reaches 50% of its objective brightness. 25°C ambient temperature rating. Suitable for the lighting of sports halls, indoor swimming pools and ice rinks, greenhouses, warehouses, factories, petrol stations, etc.

Configurazioni disponibili Potenza nominale Flusso Emissione luminosa CCT CRI
1 x Sodio bassa pressione 70 W 6600 lm 62 lm/W 2000 K 22
SBR440-T-70/NE[A.K]

SBR440-T-70/NE[A.K]

Emissione luce 1

1 x Sodio bassa pressione

Tipo di montaggio

Incasso a soffitto

Forma e Dimensioni

Lunghezza: 355 mm

Larghezza: 545 mm

Altezza: 200 mm

Cablaggio / Dimming

Potenza sistema: 83 W

Grado di protezione

IP: 54

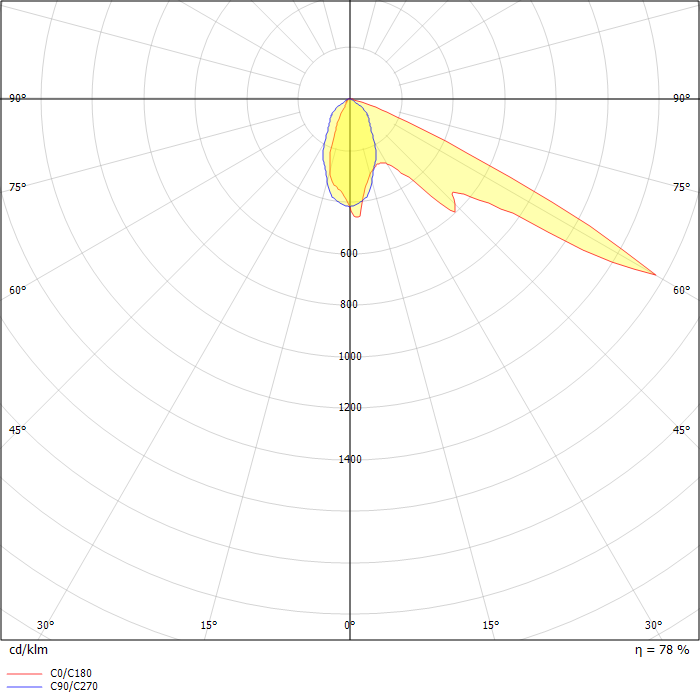

Photometric data

ZIP file
