Scheda tecnica

MO SLIM 1.4ft 6400/840 s

63928

TREVOS

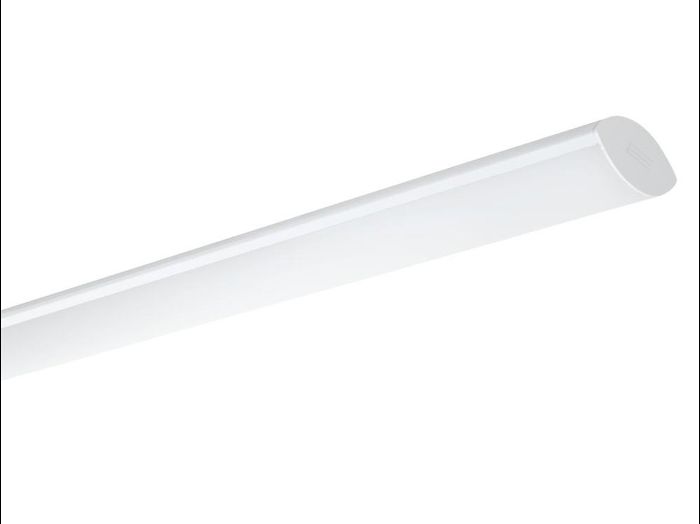

suspended indoor light fitting with accessories for various installation configurations either separately or in groups; the light fitting does not include end caps, couplers or suspender. Must be ordered separately; opal diffuser made of highly permeable, translucent polycarbonate; ON/OFF electronic driver (AC, DC on demand); Body: aluminium profile, aluminium white colour (RAL 9006); Diffuser: translucent polycarbonate (PC), UV stable, impact resistant; Reflector: steel sheet, white (RAL 9003); Connection: 2x screwless, five-pole terminal block, three-phase interconnection; Power: 38,5 W; Luminaire flux: 5590 lm; Lifetime: L90/B10; 50000 hours; Impact strength: IK08; Ambient temperature: -25|35 °C; Weight: 2,9 kg;

Tipo di lampada Potenza nominale Flusso totale Emissione luminosa CCT CRI
LED 38,5 W 6500 lm 169 lm/W 4000 K 80
MO SLIM 1.4ft 6400/840 s

MO SLIM 1.4ft 6400/840 s

Emissione luce 1 (integrata)

LED

Tipo di montaggio

Sospeso, Montaggio a soffitto

Forma e Dimensioni

Lunghezza: 1130 mm

Larghezza: 112 mm

Altezza: 65 mm

Regolazione

Fisso

Corpo: colore / materiale

Colore del corpo: Grigio argento, Bianco

Designer: TREVOS

Cablaggio / Dimming

Potenza sistema: 38,5 W

Reattore: ECG

Classe di protezione: I

Grado di protezione

IK: 08

Marcatura: CE

Altri dati significativi

Range temperatura: -25...35 °C

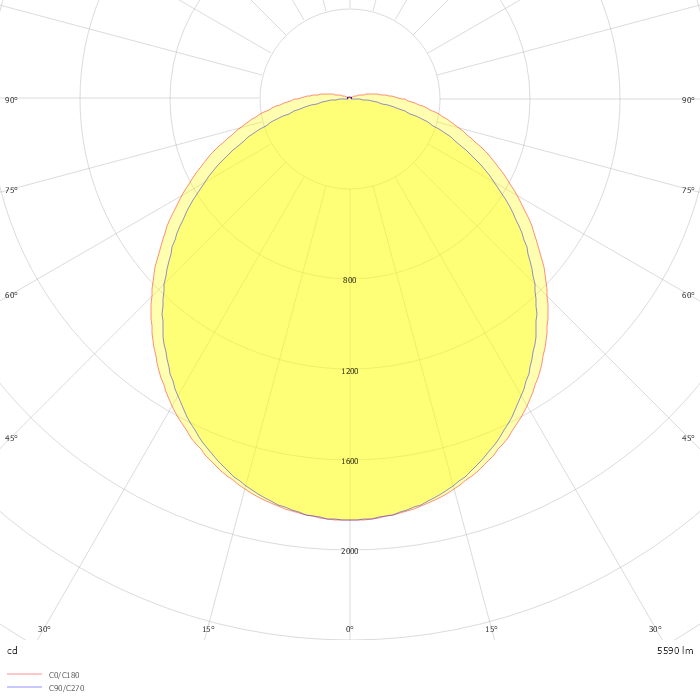

Photometric data

ZIP file
