Scheda tecnica

TRIONA square P

312655.002.730

RZB

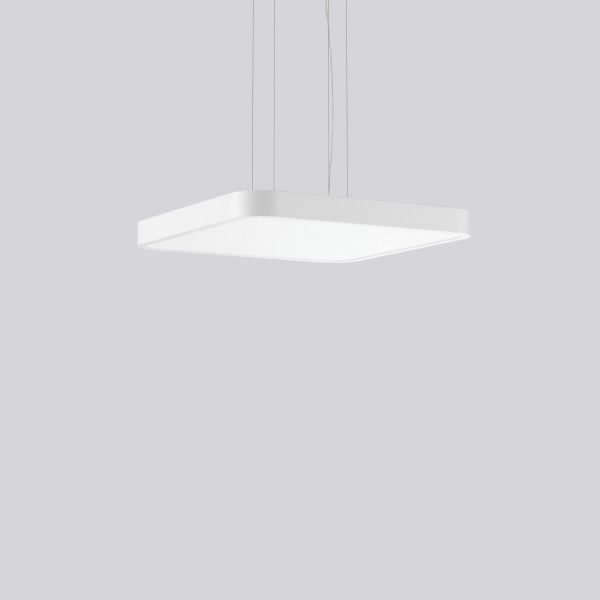

Series: TRIONA square Decorative square LED pendant-mounted surface luminaire. Flat, seamless frame: aluminium extrusion profile, powder coated. Cover made of sheet steel, powder-coated. Canopy made of aluminium, powder-coated. Diffuser made of non-yellowing plastic (PMMA), opal. LED backlight technology for homogeneous illumination of the entire light-emitting surface. 4-point steel cable suspension, steplessly adjustable. Easy installation with transparent, adjustable pendant cable and canopy with magnetic fixing. Driver integrated. With Casambi smart+free Bluetooth control for wireless network and operation using Android / iOS devices, free app available for download. Suitable for through-wiring. Colour: traffic white, matt (RAL 9016) Length: 567 mm Width: 567 mm Height: 52 mm Suspension length: 500-1200 mm Lamp: LED Socket: without socket Colour temperature: 3000K Colour rendering index (CRI): 80 System power: 51 W Rated luminous flux: 6150 lm Beam angle Down: 107° Luminous efficiency: 121 lm/W Control gear: Dimmable Bluetooth converter Protection class: I Type of protection: IP 20

Tipo di lampada Potenza nominale Flusso totale Emissione luminosa CCT CRI
LED 51 W 6150 lm 121 lm/W 3000 K 80
TRIONA square P

TRIONA square P

Emissione luce 1 (integrata)

LED

Tipo di montaggio

Sospeso

Forma e Dimensioni

Lunghezza: 567 mm

Larghezza: 567 mm

Altezza: 52 mm

Regolazione

Fisso

Corpo: colore / materiale

Colore del corpo: Bianco

Cablaggio / Dimming

Potenza sistema: 51 W

Grado di protezione

IP: 20

IK: 03
