Scheda tecnica

SIDELITE ECO

312774.002

RZB

Series: SIDELITE ECO Highly economical recessed luminaire with progressive LED technology. Frame made of aluminium, powder-coated. Diffuser: plastic, opal. Lightguide and diffuser made of non-yellowing plastic (PMMA). Lateral light emission (RZB SIDELITE technology) for homogeneous light distribution. External driver. External driver with simple plug-in locking system and extended converter connecting cable to luminaire (1.90 m). MultiLumen: 4 steps adjustable luminous flux. Factory setting is the lowest offered step. Luminaire can be used with accessories (to be ordered separately) for recessed, surface mounting or as pendant luminaire. Qualified for use in the food and drink industry. Colour: white Length: 595 mm Width: 595 mm Recess height: 160 mm Luminaire: recess height: 38 mm Lamp: LED Socket: without socket Colour temperature: 3000K Colour rendering index (CRI): 80 System power: 26 W Rated luminous flux: 3550 lm Beam angle Down: 113° / 111° Luminous efficiency: 137 lm/W System power 2: 30 W Rated luminous flux 2: 4050 lm Luminous efficiency 2: 135 lm/W System power 3: 33 W Rated luminous flux 3: 4400 lm Luminous efficiency 3: 133 lm/W System power 4: 37 W Rated luminous flux 4: 4800 lm Luminous efficiency 4: 130 lm/W Control gear: Regulated power supply Protection class: II Type of protection: IP 40

Configurazioni disponibili Potenza nominale Flusso Emissione luminosa CCT CRI
1 x LED 33 W 4400 lm 98 lm/W 3000 K 80
1 x LED 37 W 4800 lm 96 lm/W 3000 K 80
1 x LED 30 W 4050 lm 99 lm/W 3000 K 80
1 x LED 26 W 3550 lm 101 lm/W 3000 K 80
SIDELITE ECO

SIDELITE ECO

Emissione luce 1

1 x LED

SIDELITE ECO

SIDELITE ECO

Emissione luce 1

1 x LED

SIDELITE ECO

SIDELITE ECO

Emissione luce 1

1 x LED

SIDELITE ECO

SIDELITE ECO

Emissione luce 1

1 x LED

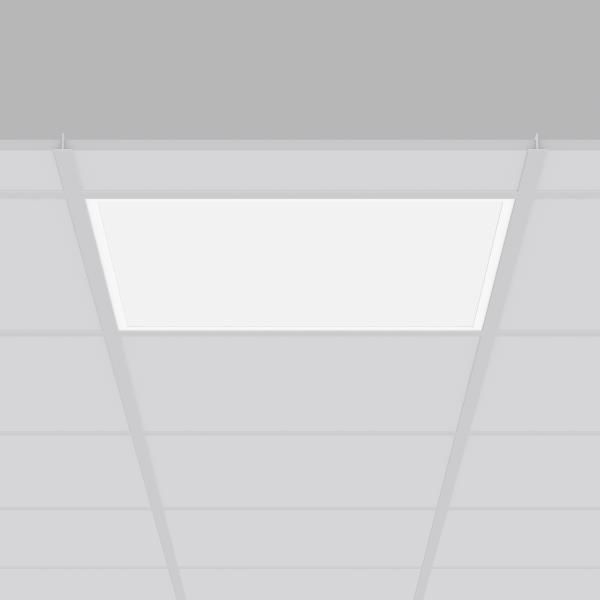

Tipo di montaggio

Incasso a soffitto

Forma e Dimensioni

Lunghezza: 595 mm

Larghezza: 595 mm

Altezza: 12 mm

Regolazione

Fisso

Cablaggio / Dimming

Potenza sistema: 26-37 W

Grado di protezione

IP: 40

IK: 03

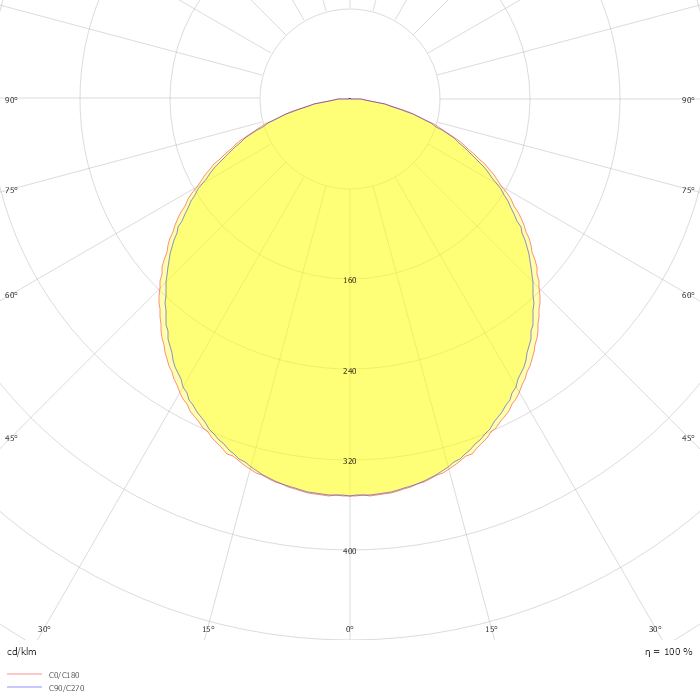

Photometric data

ZIP file
