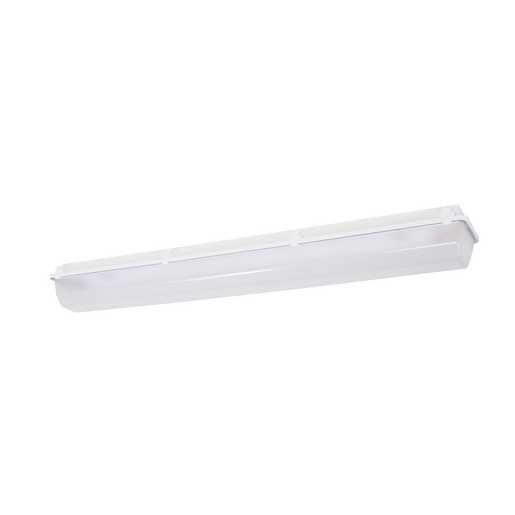

The LXEP vaportite fixture is for indoor parking garage applications. Comes standard with IP65, IP66, IP67 rating. Replaces fluorescent or HID for quick ROI.Parking Garage luminaire incorporating LED technology, Long life 60,000 hour LEDs at L80 for reduced maintenance, Available in 2', 4', or 8' lengths, IP65/66 all sizes, IP67 4' and 8', Fiberglass housing with F1 weatherability rating, standard, Smooth housing for easy cleaning, Gasket is non-porous to ensure seal, Impact modified acrylic lens equivalent to 100% DR, Lens selections are deep profile frost (DFA) standard, or clear (DCA) optional, Lens firmly secured with captive tamper resistance ready polyacetal (POM) latches, Stainless steel latching optional, Removable gear tray electrical access for modular replaceability, Emergency battery pack installed, optional on most models, Standard ambient -20ºC to 50ºC (See table for maximum rating), Includes stainless steel surface mounting brackets, Occupancy and/or daylight sensing accessories available, ControlScope® compatible, UL Sanitation certified to NSF standards, DLC® (DesignLights Consortium) Qualified - see www.designlights.org, Five year warranty,
Tipo di lampada | Potenza nominale | Flusso totale | Emissione luminosa | CCT | CRI |
---|---|---|---|---|---|
LED | 23,8 W | 2986 lm | 125 lm/W | 3000 K | 80 |
Tipo di montaggio
Montaggio a soffitto, Sospeso
Forma e Dimensioni
Lunghezza: 152 mm
Larghezza: 1271 mm
Altezza: 82 mm
Regolazione
Fisso
Cablaggio / Dimming
Potenza sistema: 23,8 W
Grado di protezione
IP: 48
Photometric data
ZIP file
