Scheda tecnica
HB 450
722128.003
RZB

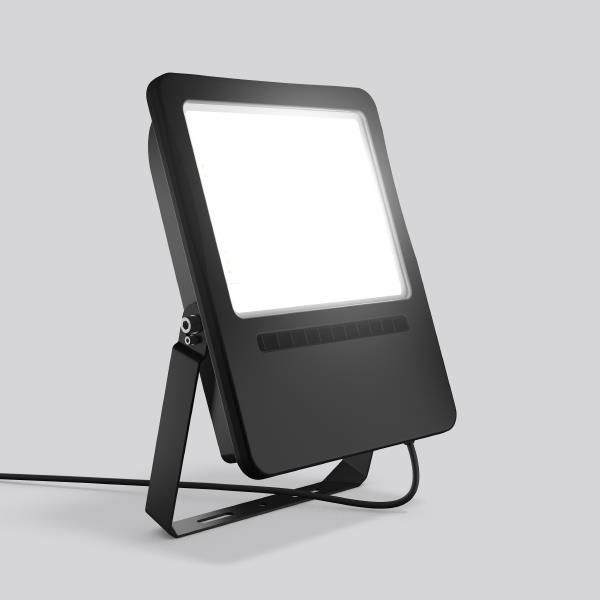

Series: HB 450 Projector for direct mains connection. Housing: die-cast aluminium, powder-coated. Bracket: steel, powder-coated. Clear glass cover. Wide flood. Pre-wired with 500 mm connection cable. Colour: black Length: 480 mm Width: 320 mm Height: 68 mm Lamp: LED System power: 200 W Rated luminous flux: 22000 lm Luminous efficiency: 110 lm/W Control gear: Regulated power supply Protection class: I Type of protection: IP 65
Tipo di montaggio
Lampada da terra / Dissuasore, Palo integrato
Forma e Dimensioni
Lunghezza: 320 mm
Larghezza: 480 mm
Altezza: 68 mm
Regolazione
Orientabile
Cablaggio / Dimming
Potenza sistema: 200 W
Grado di protezione
IP: 65
IK: 08

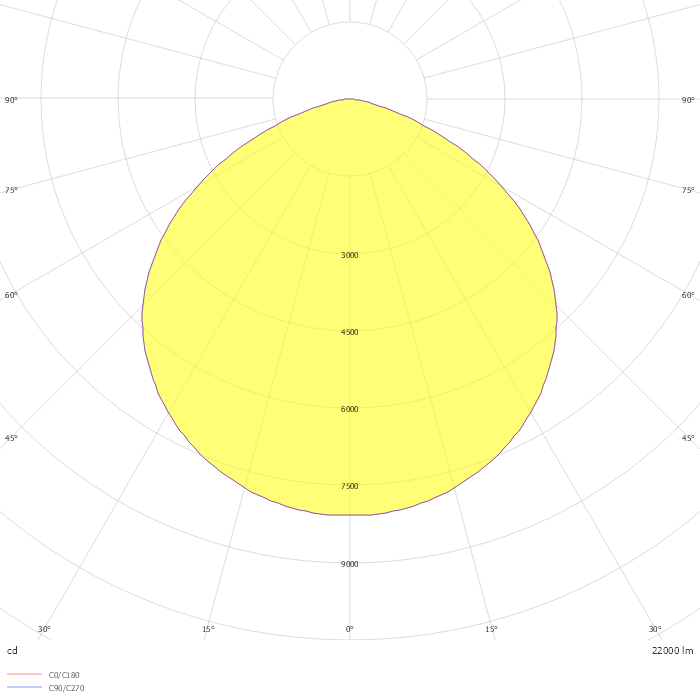

Photometric data
ZIP file
