Scheda tecnica

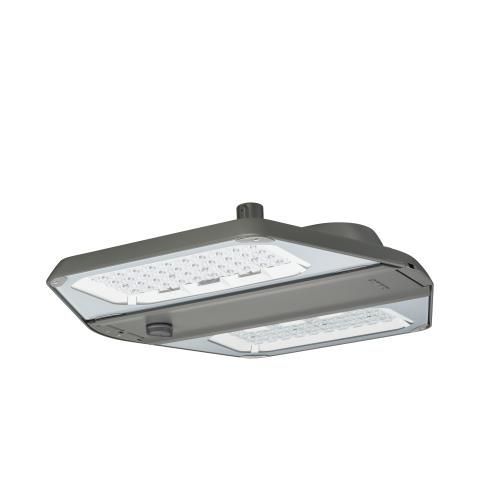

DigiStreet Catenary BSP764 T25 1 xLED120-4S/830 DW10

BCP764

Philips

Get your city ready for the future with DigiStreet Philips DigiStreet Catenary is a new member of the DigiStreet Road & Street family, and it enables you to benefit from the same lighting quality, distinctive design and the advantages of connected lighting systems in applications requiring catenary solutions. Supporting Smart City initiatives, the full DigiStreet range can be equipped with two System Ready (SR) sockets to enable your city to opt in for existing and future controls, sensors and applications such as the Philips CityTouch remote light management system. In addition, each individual luminaire is uniquely identifiable, thanks to the Philips Service tag, which is based on QR coding. With a simple scan of the QR code, which is located on the inside of the mast door, you gain instant access to the luminaire configuration, making maintenance and programming operations faster and easier, throughout the luminaire’s entire lifetime.

Configurazioni disponibili Potenza nominale Flusso Emissione luminosa CCT CRI
1 x LED 91 W 12000 lm 120 lm/W 3000 K 80
DigiStreet Catenary BSP764 T25 1 xLED120-4S/830 DW10

DigiStreet Catenary BSP764 T25 1 xLED120-4S/830 DW10

Emissione luce 1

1 x LED

Tipo di montaggio

Testapalo

Forma e Dimensioni

Lunghezza: 580 mm

Larghezza: 521 mm

Altezza: 169 mm

Cablaggio / Dimming

Potenza sistema: 91 W

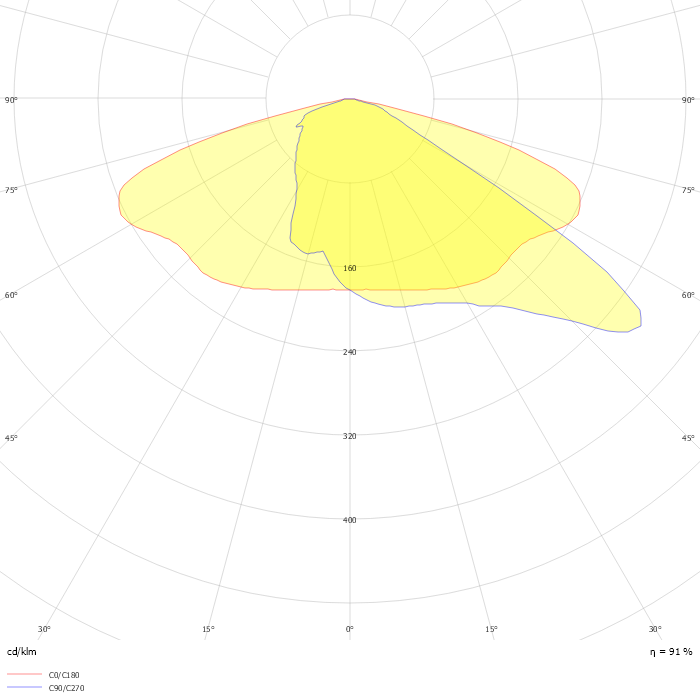

Photometric data

ZIP file
