Scheda tecnica

Flex Tube Flat Dynamic White

L37200DR

Proled (MBN GmbH)

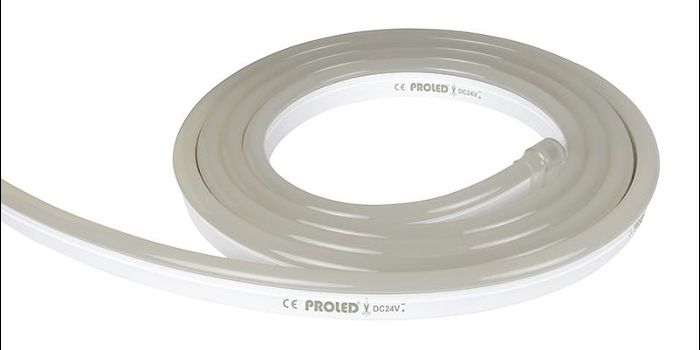

Immagine prodotto 1: Flex Tube Flat Dynamic White
Immagine prodotto 1: Flex Tube Flat Dynamic White

Immagine prodotto 1: Flex Tube Flat Dynamic White

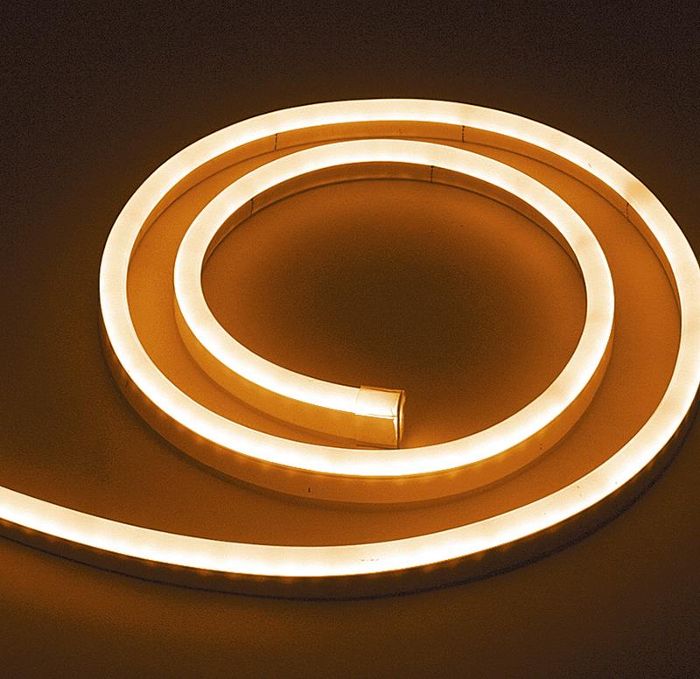

Immagine prodotto 2: Flex Tube Flat Dynamic White

Immagine prodotto 2: Flex Tube Flat Dynamic White



Immagine prodotto 3: Flex Tube Flat Dynamic White

Immagine prodotto 3: Flex Tube Flat Dynamic White



IP
67

IK
08

The PROLED FLEX TUBE FLAT DYNAMIC WHITE is an innovative LED product replacing the classic neon tubes. It can be used at every location including edges and corners. The FLEX TUBE has cutting signs printed on for an easy cutting to the required length. Installation is quite easy. Due to the high flexibility and pliability various shapes and designs are possible. With an operating voltage of 24 VDC and the protection rating IP67 FLEX TUBE is absolutely safe for indoor and outdoor use. With the FLEX TUBE FLAT DYNAMIC WHITE the colour temperature is continuously adjustable from 2500 K to 5000 K. - dimmable, adjustable colour temperature, controllable via DMX 512, DALI, KNX, 1-10 V, CASAMBI, RF by MULTI power supplies/controller - When used indoors (constant temperature), up to 10 m with a single power supply line, up to 20 m with power supply lines on both ends from same power supply. - When used outdoors (because of temperature fluctuations and different thermal expansion coefficients of the materials), max. 7 m.

Tipo di lampada Potenza nominale Flusso totale Emissione luminosa CCT CRI
LED 5,2 W 210 lm 40 lm/W 2500 K 87
Flex Tube Flat Dynamic White

Flex Tube Flat Dynamic White

Emissione luce 1 (integrata)

LED

Tipo di lampada Potenza nominale Flusso totale Emissione luminosa CCT CRI
LED 5,3 W 230 lm 43 lm/W 5000 K 80
Flex Tube Flat Dynamic White

Flex Tube Flat Dynamic White

Emissione luce 2 (integrata)

LED

Tipo di montaggio

Montaggio a soffitto

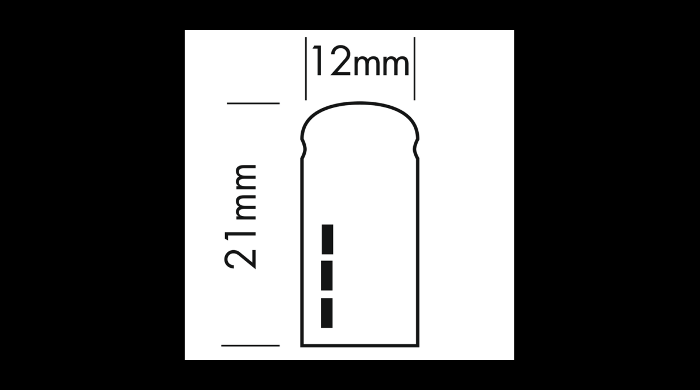

Forma e Dimensioni

Lunghezza: 1000 mm

Larghezza: 12 mm

Altezza: 21 mm

Regolazione

Fisso

Cablaggio / Dimming

Potenza sistema: 10,5 W

Dimmer: Dimmerabile 1..10V, DMX, DALI

Luce dinamica

Classe di protezione: III

Grado di protezione

IP: 67

IK: 08

Altri dati significativi

Range temperatura: -20...45 °C

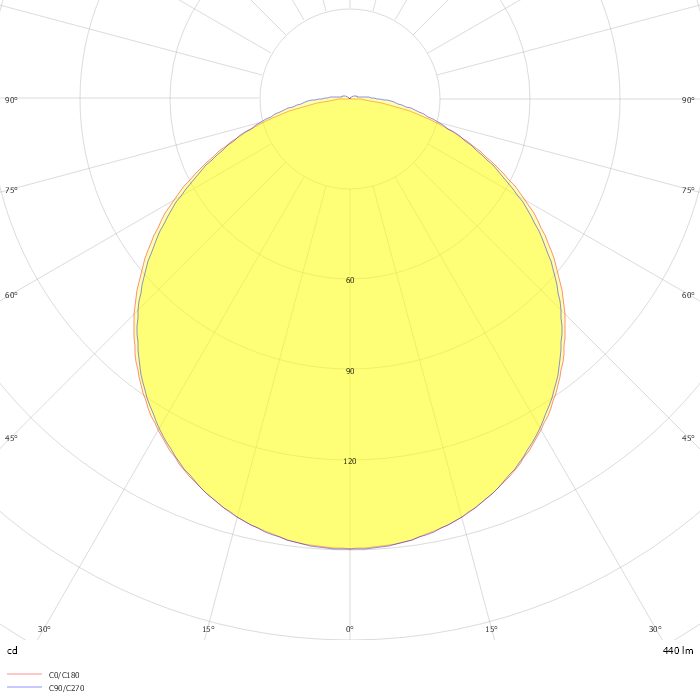

Photometric data

ZIP file
