Scheda tecnica

DEECOS P maxi

911536.002.76

RZB

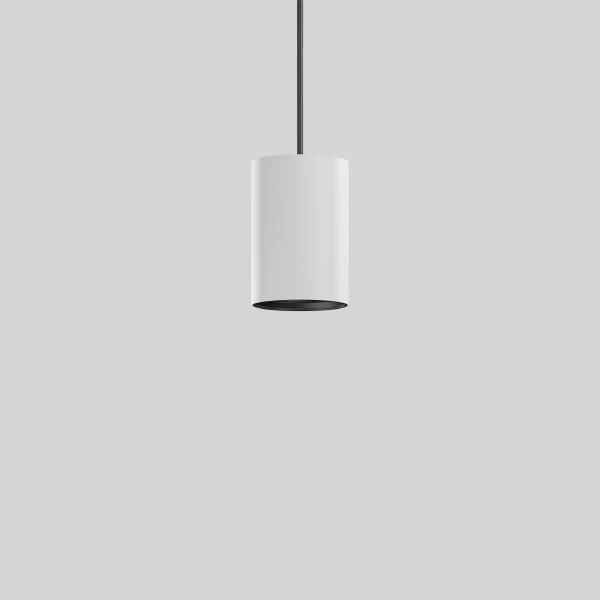

Series: DEECOS P maxi Cylindrical pendant luminaire. Housing: die-cast aluminium, powder-coated. Canopy made of powder-coated sheet steel with magnetic attachment. Optical assembly with reflector made of MIRO-Silver with 98% total light reflection for outstanding efficiency - can be changed without tools. Best colour rendering index Ra>90. Transparent suspension cable 2 m, can be shortened. High quality converter without flickering and stroboscopic effect. The following accessories can be mounted without use of tools: interchangeable lenses, honeycomb louvre, clear and frosted diffusers, white interchangeable plastic ring. Decorative recessed suspension set available as accessory. Colour: traffic white, matt (RAL 9016) Diameter: 123 mm Height: 181 mm Suspension length: 2000 mm Lamp: LED Socket: without socket Colour temperature: 3000K Colour rendering index (CRI): 92 System power: 35 W Rated luminous flux: 4200 lm Beam angle Down: 12° Luminous efficiency: 120 lm/W Control gear: Converter, dimmable, DALI Protection class: I Type of protection: IP 20

Tipo di lampada Potenza nominale Flusso totale Emissione luminosa CCT CRI
LED 35 W 4200 lm 120 lm/W 3000 K 90
DEECOS P maxi

DEECOS P maxi

Emissione luce 1 (integrata)

LED

Tipo di montaggio

Sospeso

Forma e Dimensioni

Altezza: 181 mm

Diametro: 123 mm

Regolazione

Fisso

Corpo: colore / materiale

Colore del corpo: Bianco

Cablaggio / Dimming

Potenza sistema: 35 W

Grado di protezione

IP: 20

IK: 06

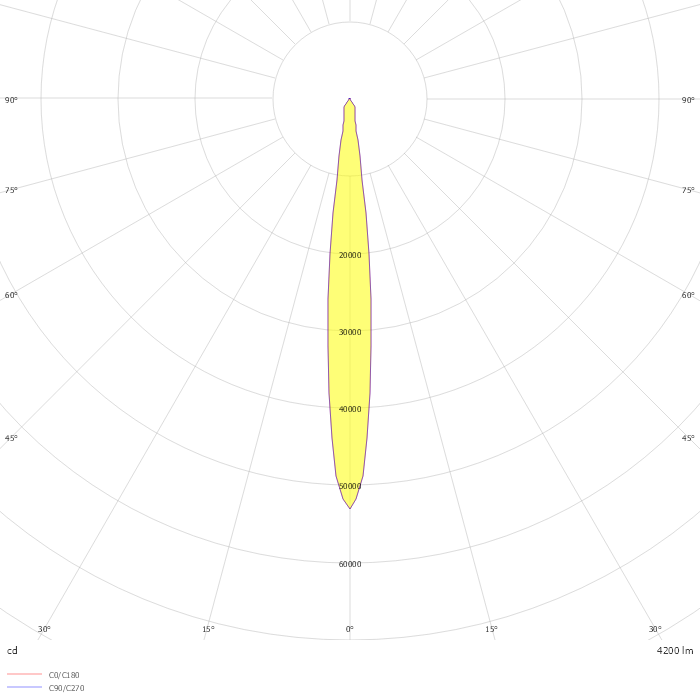

Photometric data

ZIP file
