Scheda tecnica

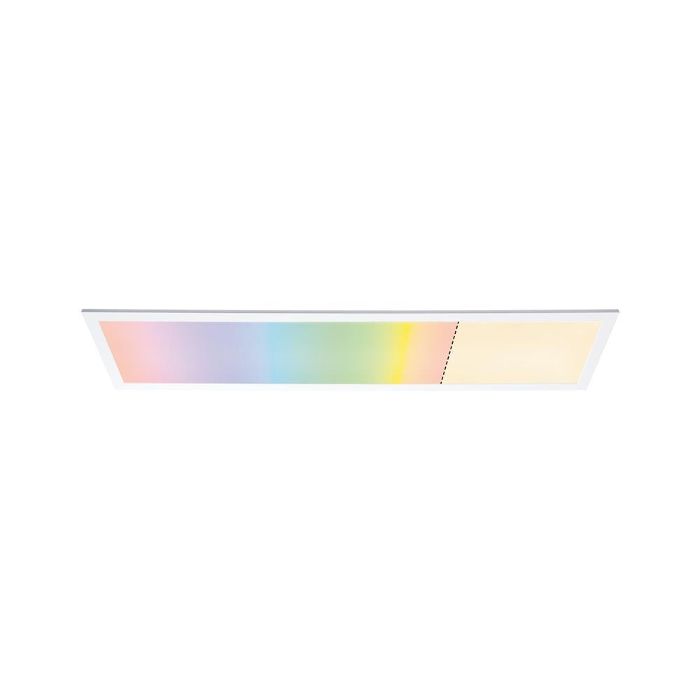

Smart Home Zigbee LED panel Amaris 1195x295mm 35 W Matt white RGBW colour change

79810

Paulmann

Immagine prodotto 1: Smart Home Zigbee LED panel Amaris 1195x295mm 35 W Matt white RGBW colour change
Immagine prodotto 1: Smart Home Zigbee LED panel Amaris 1195x295mm 35 W Matt white RGBW colour change

Immagine prodotto 1: Smart Home Zigbee LED panel Amaris 1195x295mm 35 W Matt white RGBW colour change



IP
20

Measuring 1195 x 295 mm, the flat Amaris Zigbee panel is particularly understated due to its ultra-flat design. The satined finish of the diffuser plate provides pleasant wide-area room lighting. Depending on your mood, you can choose between true warm white, coloured light and various effects. The luminaire is Zigbee 3.0-compatible. Zigbee is a radio transmission protocol that links devices from different manufacturers. Thanks to the sturdy metal substructure, installation is extremely easy and the panel appears to float.

Configurazioni disponibili Potenza nominale Flusso Emissione luminosa CCT CRI
1 x LED 35 W 2627 lm 75 lm/W 2778 K 83
1 x LED 35 W 2 lm 0 lm/W 2778 K 83
Smart Home Zigbee LED panel Amaris 1195x295mm 35 W Matt white RGBW colour change

Smart Home Zigbee LED panel Amaris 1195x295mm 35 W Matt white RGBW colour change

Emissione luce 1

1 x LED

Smart Home Zigbee LED panel Amaris 1195x295mm 35 W Matt white RGBW colour change

Smart Home Zigbee LED panel Amaris 1195x295mm 35 W Matt white RGBW colour change

Emissione luce 1

1 x LED

Tipo di montaggio

Montaggio a soffitto

Forma e Dimensioni

Lunghezza: 1195 mm

Larghezza: 295 mm

Altezza: 36 mm

Peso: 3,63 kg

Regolazione

Fisso

Corpo: colore / materiale

Materiale: Alluminio

Colore del corpo: Bianco

Cablaggio / Dimming

Potenza sistema: 35-36 W

Luce dinamica

Classe di protezione: II

Grado di protezione

IP: 20

Marcatura: CE

Altri dati significativi

Range temperatura: 3...3 °C

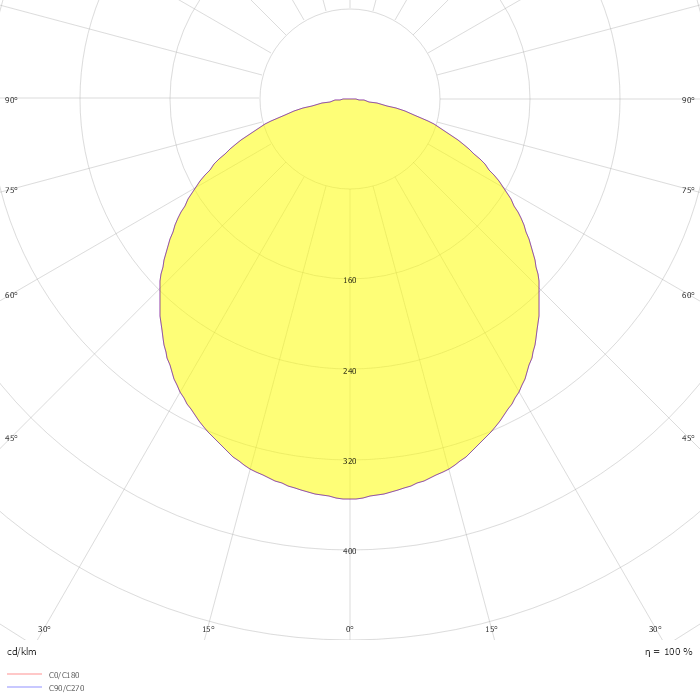

Photometric data

ZIP file
