Scheda tecnica

Iris Surface Cone 15º

AV16-18W9X1DSO7

LedsC4

LedsC4 Iris Surface Cone 15º AV16-18W9X1DSO7 Pendant for indoor use. Structure material: Aluminium. Structure finish: White/Grey. Warranty: 5 Years. Product net weight (Kg): 0.61 Product width or diameter (mm): 145 Product height (mm): 1735 Class 2. IP: IP43. LED. No. of lampholders or LEDs: 1. LED brand: CREE. Maximum power of light source: 16.4W. Colour temperature: 3000K. Colour rendering index: 92. MacAdam Steps: 2. Hours of life: 50.000h L80B20. UGR: 27.6. Photobiological risk: RG1. % de Flickering: <5%. Real flux (lm): 1883. Real lm/W: 102. Voltage / frequency range: 110-277/50-60Hz. Voltage: 33,7. Equipment included: Yes. Total power: 18.5. Power factor: 0.90. Dimmable equipment included: DALI-2.

Configurazioni disponibili Potenza nominale Flusso Emissione luminosa CCT CRI
1 x LED 18,5 W 1883 lm 102 lm/W 3000 K 90
Iris Surface Cone 15º

Iris Surface Cone 15º

Emissione luce 1

1 x LED

Tipo di montaggio

Sospeso, Lampada da tavolo

Forma e Dimensioni

Lunghezza: 120 mm

Larghezza: 120 mm

Altezza: 147 mm

Regolazione

Fisso

Cablaggio / Dimming

Potenza sistema: 18,5 W

Classe di protezione: II

Grado di protezione

IP: 43

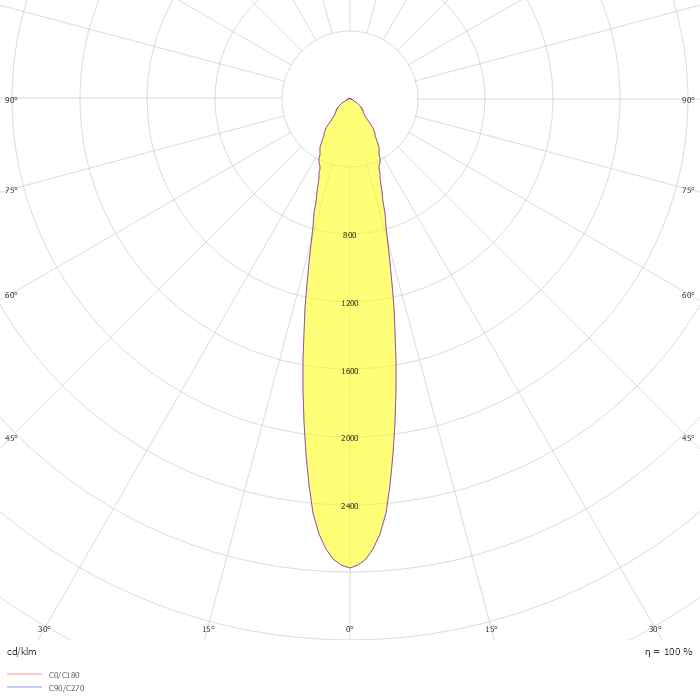

Photometric data

ZIP file
