Scheda tecnica

Bento Standard 6 LEDS Trimless

90-6169-14-14

LedsC4

LedsC4 Bento Standard 6 LEDS Trimless 90-6169-14-14V2 Downlight for indoor use. For downlighting. Structure material: Aluminium, Polycarbonate. Structure finish: White. Warranty: 5 Years. Product net weight (Kg): 0.22 Product length (mm): 234 Product width or diameter (mm): 234 Product height (mm): 234 Product aperture (mm): 234 Ø of the hole for recessing (mm): 40x168 Permitted ceiling thickness: 0-18 Class 3. Luminaire not suitable for coating with insulation materials. Glow wire test: 850. IP: IP23. LED. No. of lampholders or LEDs: 1. LED brand: NICHIA. Maximum power of light source: 12.2W. Colour temperature: 2700K. Colour rendering index: 90. MacAdam Steps: 3. Hours of life: 50.000h L80B20. UGR: 6.8. Photobiological risk: RG2. Real flux (lm): 927. Real lm/W: 76. Voltage: 3. Equipment included: No, but it is needed. Total power: 12.2.

Configurazioni disponibili Potenza nominale Flusso Emissione luminosa CCT CRI
1 x LED 15 W 927 lm 62 lm/W 2700 K 90
Bento Standard 6 LEDS Trimless

Bento Standard 6 LEDS Trimless

Emissione luce 1

1 x LED

Tipo di montaggio

Incasso a soffitto

Forma e Dimensioni

Lunghezza: 163 mm

Larghezza: 36 mm

Altezza: 2 mm

Regolazione

Fisso

Cablaggio / Dimming

Potenza sistema: 15 W

Classe di protezione: III

Grado di protezione

IP: 23

Marcatura: CE

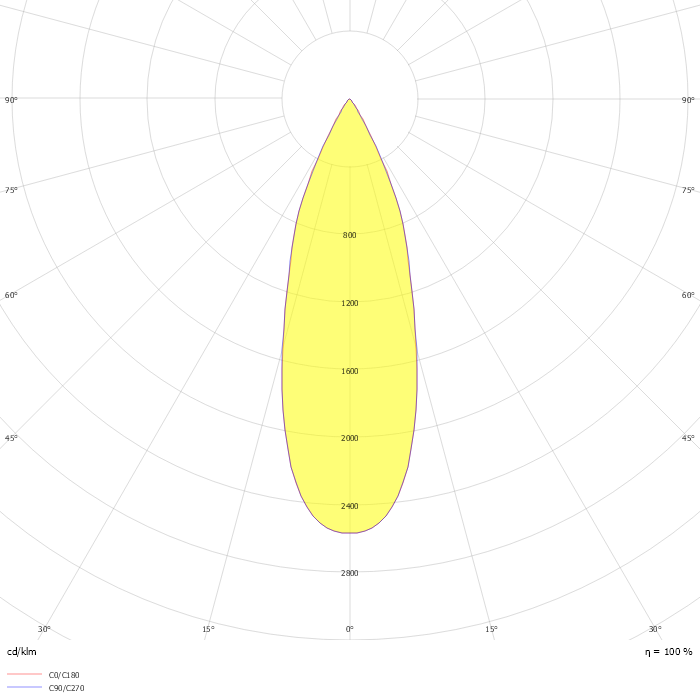

Photometric data

ZIP file
