Scheda tecnica
M20/M26H - SPY 52 TW 96545 DIM5
23331 9035
Delta Light

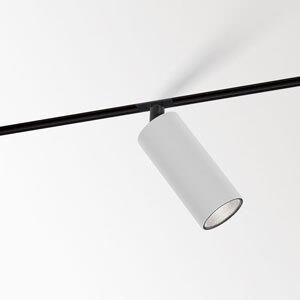

Luminaire, low voltage systems low voltage system mounted (indoor use) from Deltalight, named M20/M26H - SPY 52 TW 96545 DIM5, available in the colour(s): black, white. This luminaire can be used with the following 48V magnetic lighting system(s): SHIFTLINE M26H - PROFILE, SHIFTLINE M26H + SBL, SPLITLINE M20 - PROFILE, SPLITLINE M20 ST - PROFILE. This luminaire is equipped with LED array 9W / CRI>90 (R9: 50) / 2700K-6500K / 1087lm with build-in converter to operate on a voltage of 48V-DC. Dimming protocol: DALI. Light distributor: reflector 45°.
| Configurazioni disponibili | Potenza nominale | Flusso | Emissione luminosa | CCT | CRI |
|---|---|---|---|---|---|
| 1 x LED | 9 W | 1087 lm | 121 lm/W | 6500 K | 90 |
| 1 x LED | 9 W | 1087 lm | 121 lm/W | 6500 K | 90 |
| 1 x LED | 9 W | 1087 lm | 121 lm/W | 6500 K | 90 |
| 1 x LED | 9 W | 1087 lm | 121 lm/W | 6500 K | 90 |
| 1 x LED | 9 W | 1087 lm | 121 lm/W | 6500 K | 90 |
| 1 x LED | 9 W | 1087 lm | 121 lm/W | 6500 K | 90 |
| 1 x LED | 9 W | 1087 lm | 121 lm/W | 6500 K | 90 |
| 1 x LED | 9 W | 1087 lm | 121 lm/W | 6500 K | 90 |
| 1 x LED | 9 W | 1087 lm | 121 lm/W | 6500 K | 90 |
| 1 x LED | 9 W | 1087 lm | 121 lm/W | 6500 K | 90 |
| 1 x LED | 9 W | 1087 lm | 121 lm/W | 6500 K | 90 |
| 1 x LED | 9 W | 1087 lm | 121 lm/W | 6500 K | 90 |
| 1 x LED | 9 W | 1087 lm | 121 lm/W | 6500 K | 90 |
Tipo di montaggio
Montaggio a soffitto, Binario, Montaggio a parete, Sospeso, Incasso a parete
Forma e Dimensioni
Lunghezza: 20 mm
Larghezza: 170 mm
Altezza: 1 mm
Cablaggio / Dimming
Potenza sistema: 10 W
Classe di protezione: II
Grado di protezione
IP: 20
Marcatura: CE

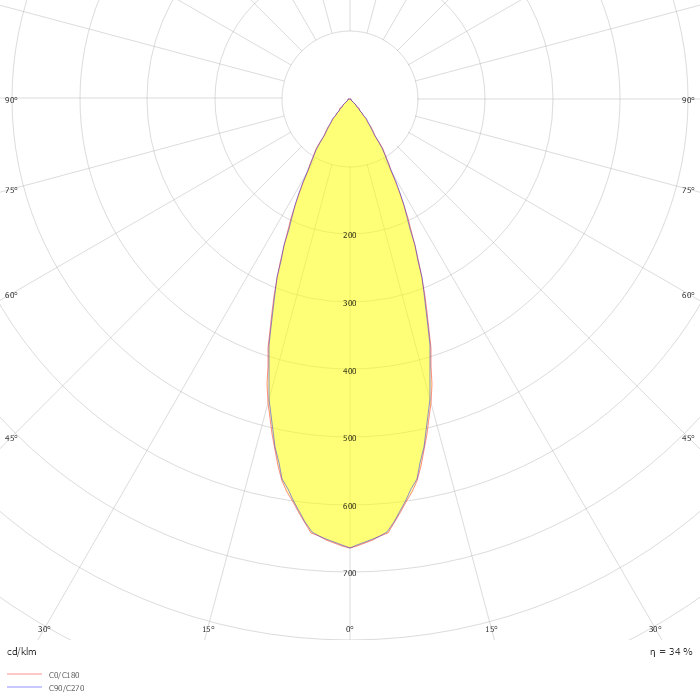

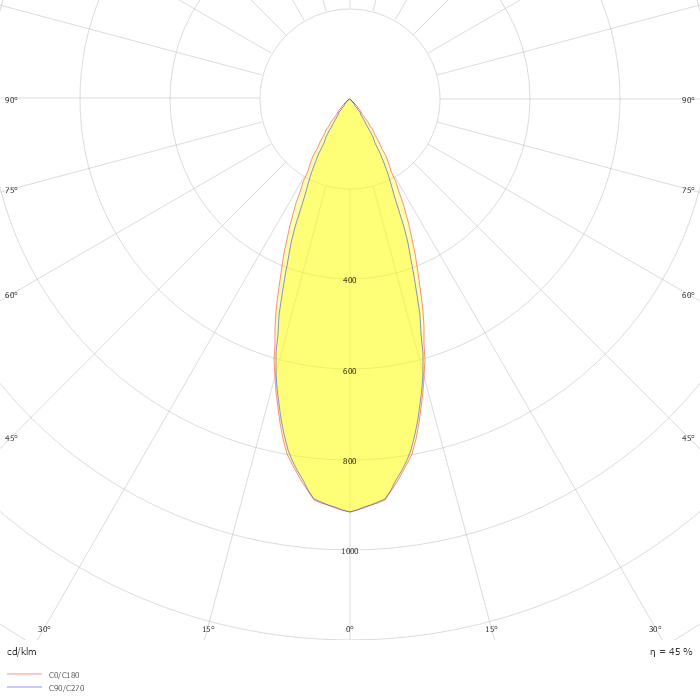

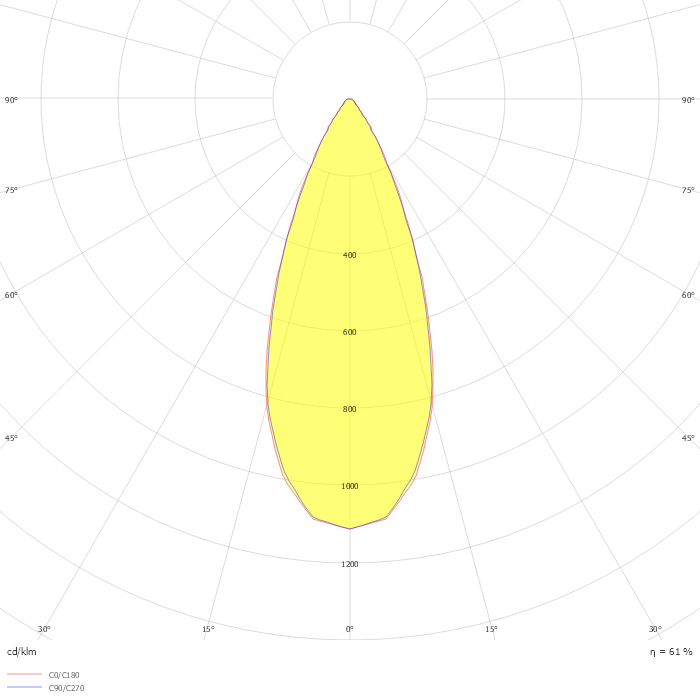

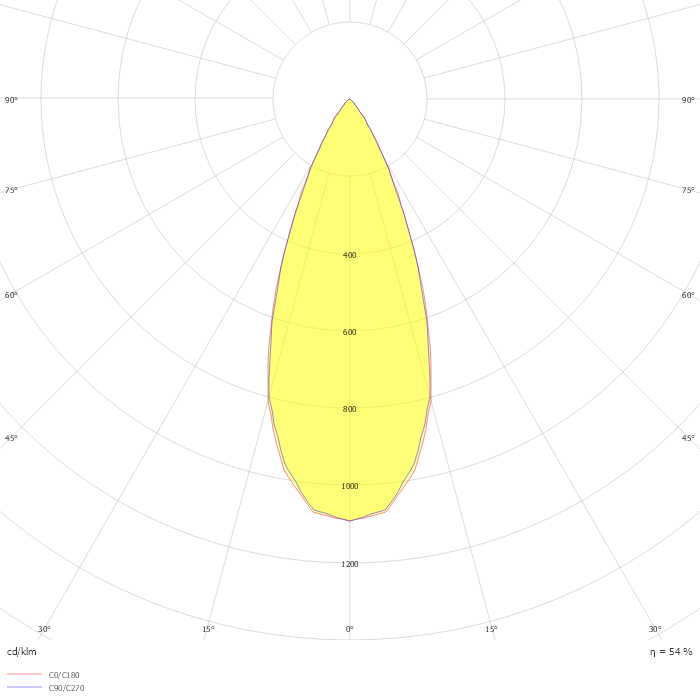

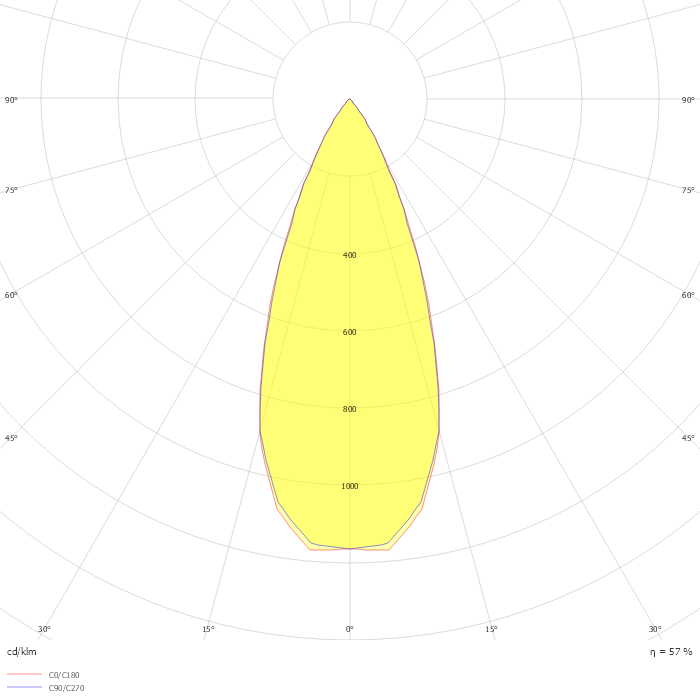

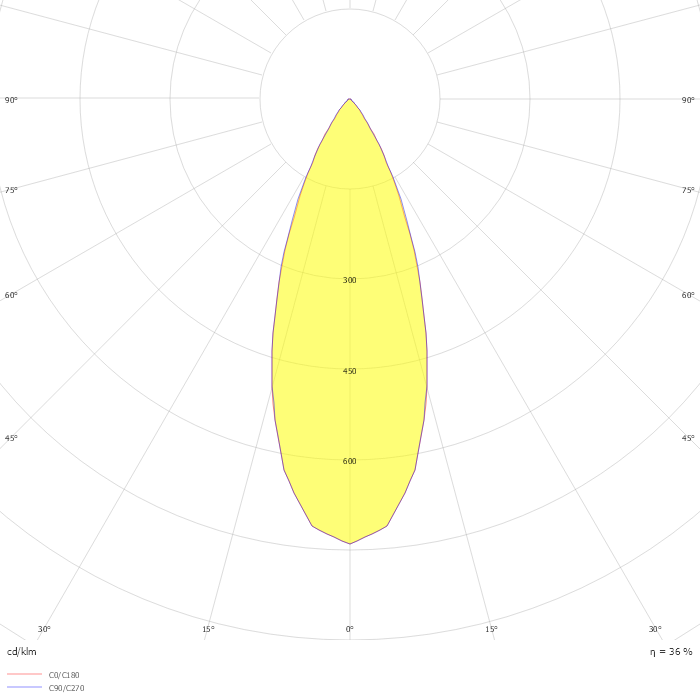

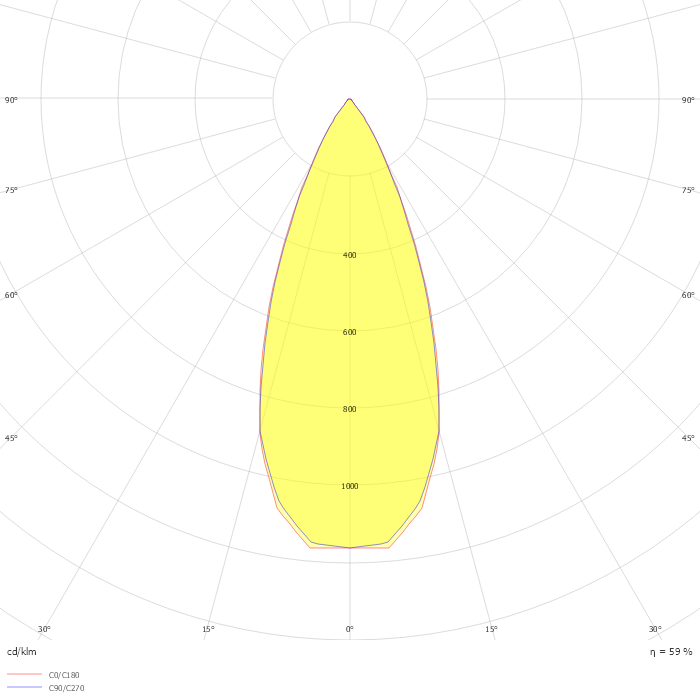

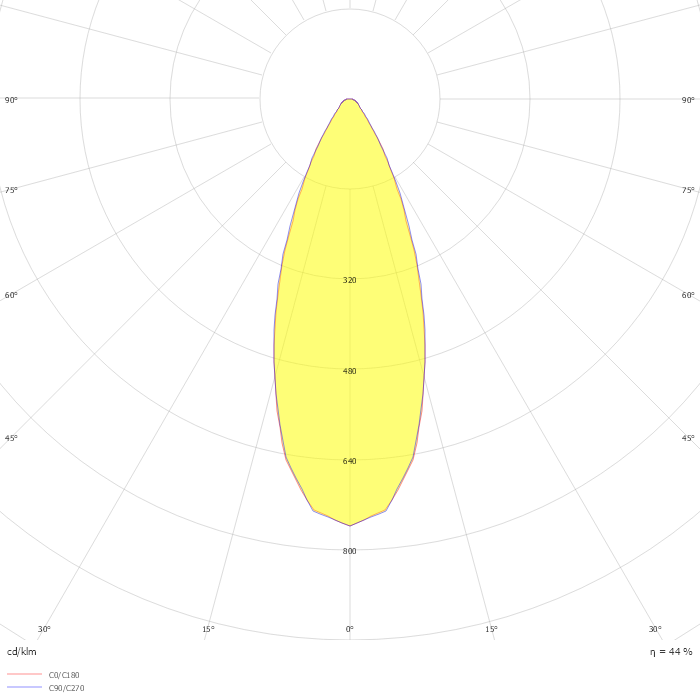

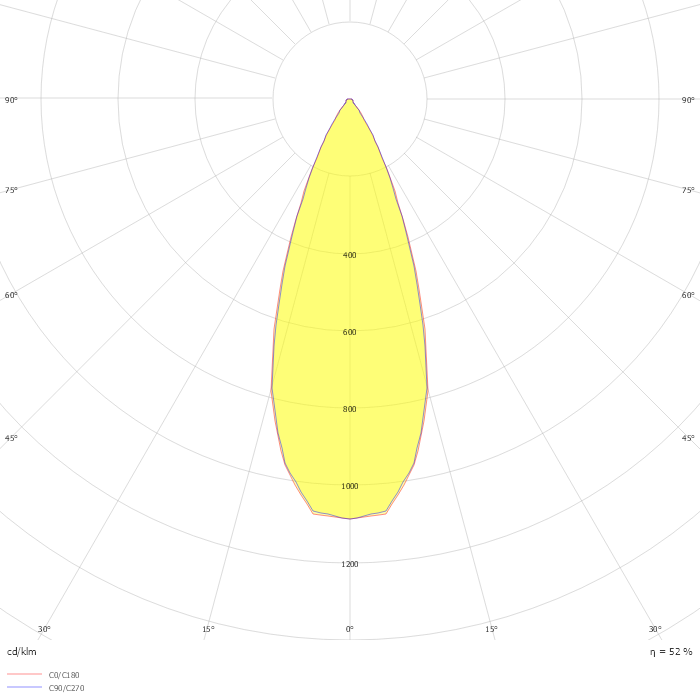

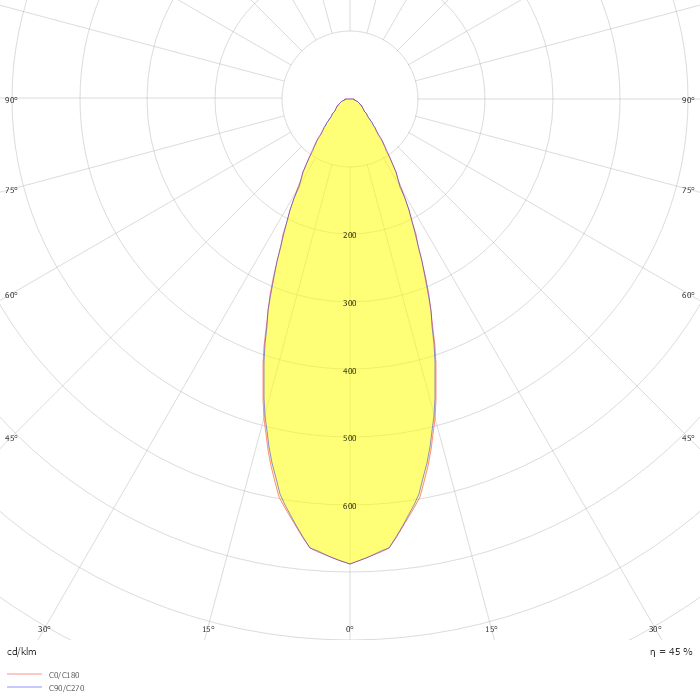

Photometric data
ZIP file
