Scheda tecnica

Iris Surface Cone 15º

AV16-12V9X1DSO1

LedsC4

LedsC4 Iris Surface Cone 15º AV16-12V9X1DSO1 Pendant for indoor use. Structure material: Aluminium. Structure finish: White/Gold/Gold. Warranty: 5 Years. Product net weight (Kg): 0.61 Product width or diameter (mm): 145 Product height (mm): 1735 Class 2. IP: IP43. LED. No. of lampholders or LEDs: 1. LED brand: CREE. Maximum power of light source: 11.8W. Colour temperature: 2700K. Colour rendering index: 92. MacAdam Steps: 2. Hours of life: 50.000h L80B20. UGR: 26.3. Photobiological risk: RG1. % de Flickering: <5%. Real flux (lm): 1278. Real lm/W: 91. Voltage / frequency range: 110-277/50-60Hz. Voltage: 33,7. Equipment included: Yes. Total power: 14. Power factor: 0.90. Dimmable equipment included: DALI-2.

Configurazioni disponibili Potenza nominale Flusso Emissione luminosa CCT CRI
1 x LED 14 W 1278 lm 91 lm/W 2700 K 90
Iris Surface Cone 15º

Iris Surface Cone 15º

Emissione luce 1

1 x LED

Tipo di montaggio

Sospeso, Lampada da tavolo

Forma e Dimensioni

Lunghezza: 120 mm

Larghezza: 120 mm

Altezza: 147 mm

Regolazione

Fisso

Cablaggio / Dimming

Potenza sistema: 14 W

Classe di protezione: II

Grado di protezione

IP: 43

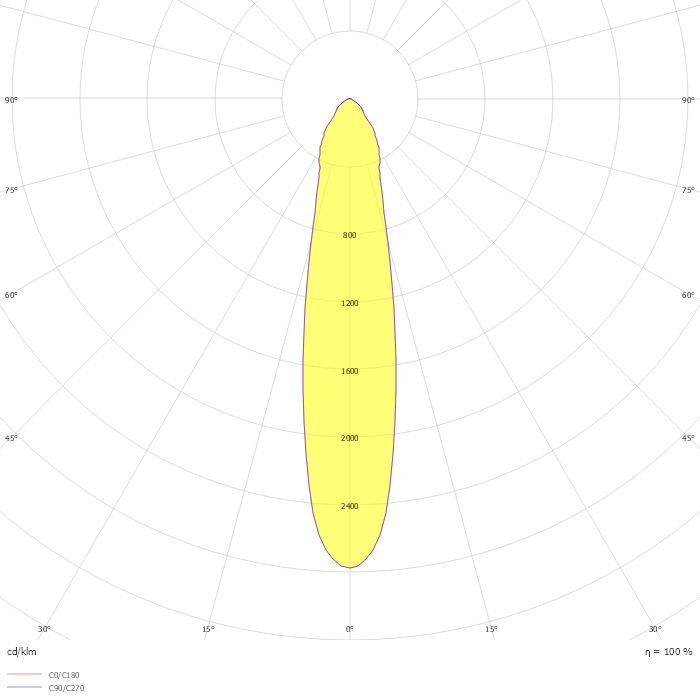

Photometric data

ZIP file
