Scheda tecnica

camu/95-40° LED - MIRO-SILVER® Reflektor facettiert hochglänzend | MIRO-SILVER® High gloss faceted reflector

4400-1900 940 3572lm ETM vw RAL 9016 (37811044140)

Regiolux

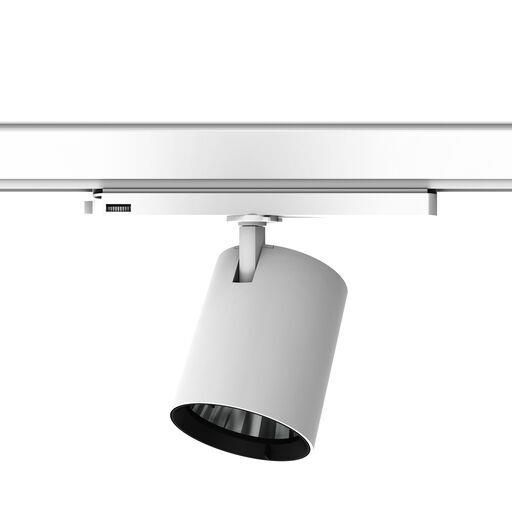

Immagine prodotto 1: camu/95-40° LED - MIRO-SILVER® Reflektor facettiert hochglänzend | MIRO-SILVER®  High gloss faceted reflector
Immagine prodotto 1: camu/95-40° LED - MIRO-SILVER® Reflektor facettiert hochglänzend | MIRO-SILVER®  High gloss faceted reflector

Immagine prodotto 1: camu/95-40° LED - MIRO-SILVER® Reflektor facettiert hochglänzend | MIRO-SILVER® High gloss faceted reflector



IP
20

IK
02

Spotlight; LED conductor rail spotlight, compact spotlight unit made of die-cast aluminium with thermally separated driver housing on the hinged arm with powder-coated housing. Housing colour traffic white RAL 9016; Light distribution Wide–Beam by means of MIRO-SILVER® High gloss faceted reflector of MIRO-SILVER Aluminium. Suitable for VDU workstations, 65° < 3000 cd/m² omnidirectional glare reduction in accordance with current DIN-EN 12464-1 standard. The light source and driver are removable in accordance with the EU 2019/2020 ecodesign requirements and can be replaced in the factory. Electrical connection via In-Track driver. Luminaire including LED and driver. For busbar system Regiolux DPS/DPSN/DPSNA. Compatible for all ONETRACK 3 rail systems from Global Trac, Eutrac, Iguzzini, Ivela, Reggiani, Targetti. Dimensions (LxWxH): 95mm x 150mm x 176mm Beam angle: 40° (Standardreflektor) (Standardreflektor) Placement: LED, Colour rendering/Light colour CRI ≥ 90 / 4000K Colour tolerance: 2SDCM Photobiological safety (Luminaire): RG1 LED service life: 50000h L90/B10 (Tq 25°C) Nominal luminous flux/switching steps: 4400lm/32W, 4100lm/29W, 3900lm/27W, 3600lm/25W, 3300lm/23W, 3000lm/21W, 2700lm/18W, 2400lm/16W, 2200lm/14W, 1900lm/12W Luminaire luminous efficiency: 139lm/W-155lm/W Controller: Electronic multi-lumen driver, 10-steps (1 pcs.) System output: 32W-12W Mains voltage: 230V Mains frequency: 50Hz Impact resistance (IK rating): IK02 Ambient temperatur: ta 25°C UGR lat./long.: 18.0 / 18.5 (32W) Certification mark: IP20, Protection class II, γ 65°<3000 cd/m², F, Indoor, CE Warranty period: 5 years Regiolux GmbH Type: camu/95-40° LED 4400-1900 940 ETM vw RAL 9016 Article number: 37811044140 Product deep link: https://www.regiolux.de/en/article/37811044140 General warranty conditions: www.regiolux.de/en/Service/Warranty

Tipo di lampada Potenza nominale Flusso totale Emissione luminosa CCT CRI
24,9 W 3572 lm 143 lm/W 4000 K 90
camu/95-40° LED - MIRO-SILVER® Reflektor facettiert hochglänzend | MIRO-SILVER®  High gloss faceted reflector

camu/95-40° LED - MIRO-SILVER® Reflektor facettiert hochglänzend | MIRO-SILVER® High gloss faceted reflector

Emissione luce 1 (integrata)

Tipo di montaggio

Montaggio a soffitto, Binario

Forma e Dimensioni

Altezza: 176 mm

Diametro: 95 mm

Corpo: colore / materiale

Colore del corpo: Bianco

Cablaggio / Dimming

Potenza sistema: 24,9 W

Classe di protezione: I

Grado di protezione

IP: 20

IK: 02

Marcatura: CE

Photometric data

ZIP file
