Scheda tecnica

PRIMA 1.5ft E-CON PCc 8000/840 DALI M3hAt 2x5P

107775

TREVOS

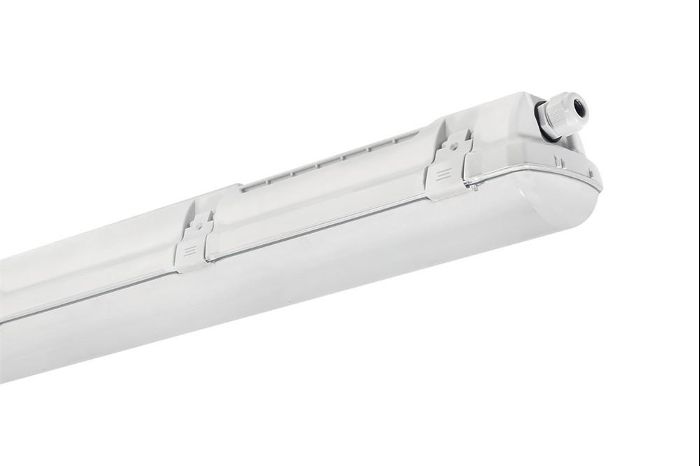

Immagine prodotto 1: PRIMA 1.5ft E-CON PCc 8000/840 DALI M3hAt 2x5P
Immagine prodotto 1: PRIMA 1.5ft E-CON PCc 8000/840 DALI M3hAt 2x5P

Immagine prodotto 1: PRIMA 1.5ft E-CON PCc 8000/840 DALI M3hAt 2x5P



IP
66

IK
10

resistant to dust, humidity and spraying water, the light fitting is suitable for both indoor and outdoor roofed industrial spaces; variable suspension spacing ranging from 970 - 1230 mm; enable the light to be installed onto suspension fittings left over from previous lighting; optimal mounting height: 3 to 8 m; digitally dimmable DALI driver (AC/DC), backup power supply with self-test. and operating time 3 hrs.; emergency back-up power supply for permanent and emergency lighting, connected to L3 (lum. flux 440lm); Body: grey PC (high mechanical resistance, UV stability, RAL 7035); Diffuser: translucent PC (high mechanical resistance, UV stability); Reflector: steel sheet, white (RAL 9003); Clips: stainless steel + polyamide; Sealing: polyurethane (PUR), foam-filled base groove; Connection: external, 5-pole, 1.5 mm2 conductor cross-section (2.5 mm2 available on demand); Power: 47,4 W; Luminaire flux: 7460 lm; Lifetime: L90/B10; 50000 hours; Impact strength: IK10; Ambient temperature: 0|40 °C; Weight: 2 kg;

Tipo di lampada Potenza nominale Flusso totale Emissione luminosa CCT CRI
LED 47,4 W 8020 lm 169 lm/W 4000 K 80
PRIMA 1.5ft E-CON PCc 8000/840 DALI M3hAt 2x5P

PRIMA 1.5ft E-CON PCc 8000/840 DALI M3hAt 2x5P

Emissione luce 1 (integrata)

LED

Tipo di lampada Potenza nominale Flusso totale Emissione luminosa CCT CRI
LED 2 W 440 lm 220 lm/W 6500 K 80
PRIMA 1.5ft E-CON PCc 8000/840 DALI M3hAt 2x5P

PRIMA 1.5ft E-CON PCc 8000/840 DALI M3hAt 2x5P

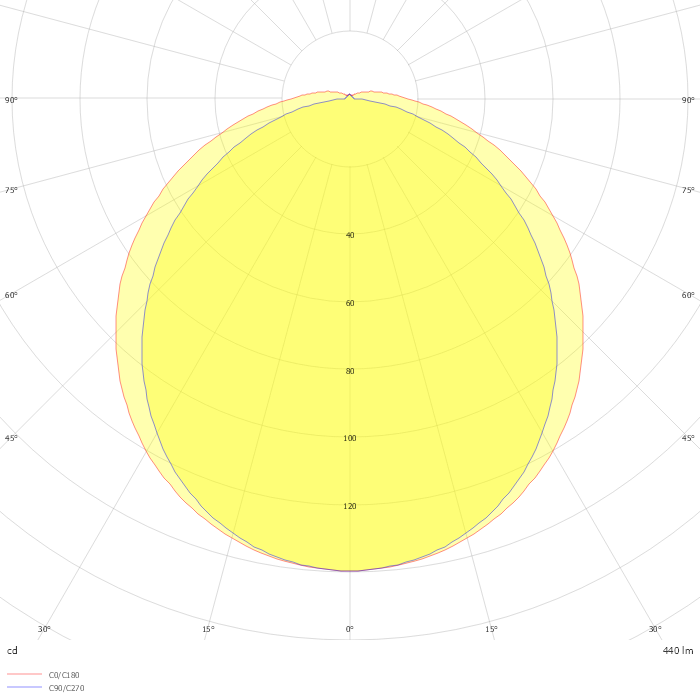

Emissione luce 2 (integrata, emergenza)

LED

Tipo di montaggio

Montaggio a soffitto

Forma e Dimensioni

Lunghezza: 1455 mm

Larghezza: 98 mm

Altezza: 84 mm

Regolazione

Fisso

Corpo: colore / materiale

Materiale: Plastica

Colore del corpo: Grigio argento, Bianco

Designer: TREVOS

Cablaggio / Dimming

Potenza sistema: 49,4 W

Reattore: ECG

Dimmer: DALI

Classe di protezione: I

Dati relativi all'emergenza

Ulteriori funzioni d'emergenza

Segnaletica emergenza: N/A

Grado di protezione

IP: 66

IK: 10

Marcatura: CE, ENEC

Altri dati significativi

Range temperatura: 0...40 °C

Photometric data

ZIP file
