Scheda tecnica

Liquid Line Wave Modules Surface - A3

QA3OSE-830H-WVQ-R150-L2355

Lightnet

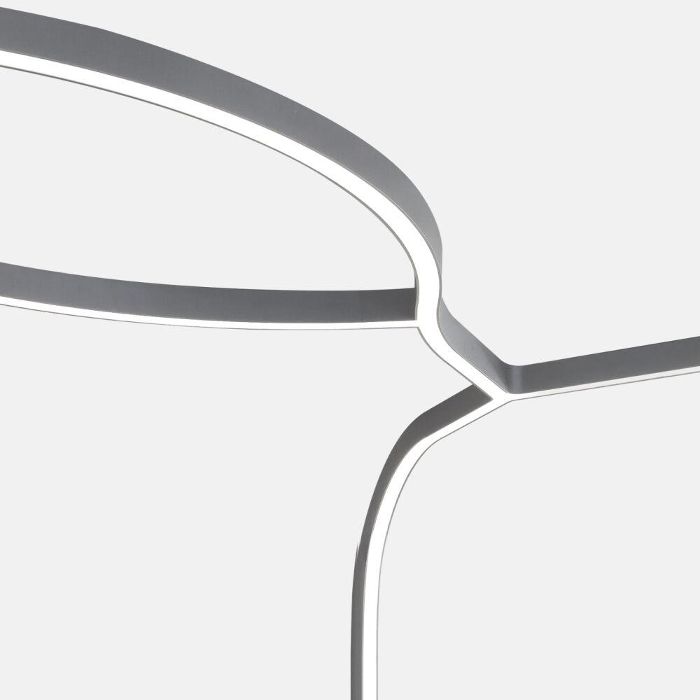

LED surface mounted light system. Direct only light distribution. Luminaire body made of aluminium profile with 60mm width. Surface white, silver, graphite, black, champagne or copper coated. Further surface options see Lightnet-Surface-Collection or RAL of your choice. Microprismatic screen with optimized glare reduction especially for workplaces. Satin opal diffuser for general lighting. Driver integrated into luminaire housing, optionally switchable or dimmable (1-10V, DALI, Touch-Dim, Casambi). Colour temperatures 2200K, 2700K, 3000K, 3500K, 4000K or 6500K. Binning initial ≤ MacAdam 3. Colour rendering CRI>80 or CRI>90. Arbitrary combination of all 90° modules, X- and Y-connectors, linear and curved elements of the Liquid Line 3D family is possible. Highly flexible system suited for millimetre accurate customizing as well as individual solutions. Each module is also available as stand-alone luminaire. End caps to be ordered separately.

Tipo di lampada Potenza nominale Flusso totale Emissione luminosa CCT CRI
LED 75 W 4954 lm 66 lm/W 3000 K 82
Liquid Line Wave Modules Surface - A3

Liquid Line Wave Modules Surface - A3

Emissione luce 1 (integrata)

LED

Tipo di lampada Potenza nominale Flusso totale Emissione luminosa CCT CRI
LED 75 W 4954 lm 66 lm/W 3000 K 82
Liquid Line Wave Modules Surface - A3

Liquid Line Wave Modules Surface - A3

Emissione luce 2 (integrata)

LED

Tipo di montaggio

Montaggio a soffitto

Forma e Dimensioni

Lunghezza: 600 mm

Larghezza: 60 mm

Altezza: 80 mm

Regolazione

Altezza regolabile

Cablaggio / Dimming

Potenza sistema: 150 W

Grado di protezione

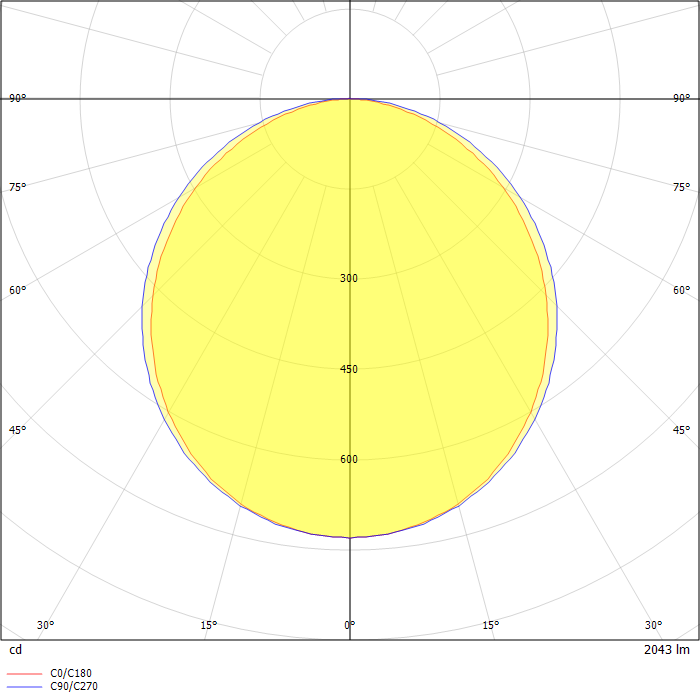

Photometric data

ZIP file
