Scheda tecnica

ZIK 48 LED 16W 120CM + DIFFUSORE MICROPRISMATO

7117250 + 9G034

Exenia

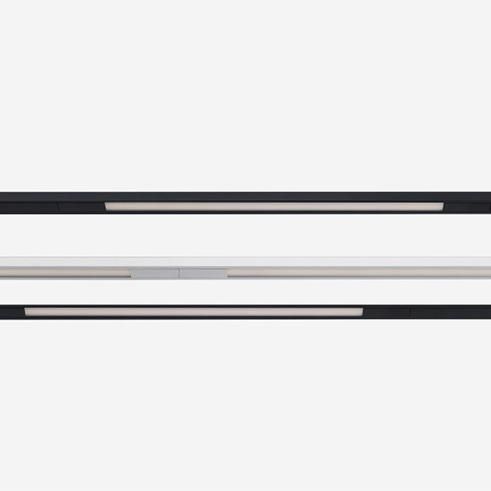

Linear LED lighting module for the installation on Track 48 system (surface, suspended and wall mounted) available in 600mm, 900mm or 1200mm length. Finish options include black and white. The module is fitted with a constant voltage power supply and extruded aluminium bar that easily snaps into the Track 48. Available in ON-OFF. The LED module needs to be completed with an opal polycarbonate or microprismaticdiffuser (to be ordered separately). Lumen maintenance of 50.000 hrs at L80B10. Ingress protection of IP20.

Tipo di lampada Potenza nominale Flusso totale Emissione luminosa CCT CRI
LED 17,5 W 1149 lm 66 lm/W 3000 K 85
ZIK 48 LED 16W 120CM + DIFFUSORE MICROPRISMATO

ZIK 48 LED 16W 120CM + DIFFUSORE MICROPRISMATO

Emissione luce 1 (integrata)

LED

Tipo di montaggio

Montaggio a soffitto, Binario

Forma e Dimensioni

Lunghezza: 16 mm

Larghezza: 1202 mm

Altezza: 17 mm

Regolazione

Fisso

Cablaggio / Dimming

Potenza sistema: 17,5 W

Classe di protezione: III

Grado di protezione

IP: 20

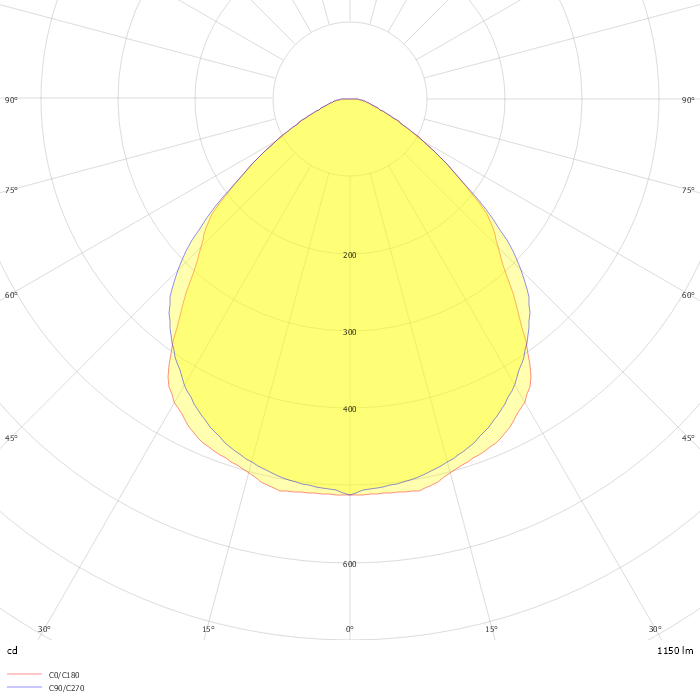

Photometric data

ZIP file
