Scheda tecnica

BENTO AREA S

BENTO AREA-S V2-ASY16-16LED-2200K-5050-1050 mA

Ragni

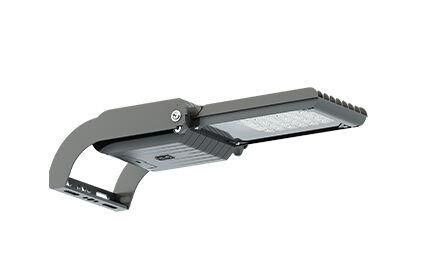

Made of aluminium and with symmetrical lines, Bento AREA is a functional floodlight with a minimalist design available in 3 sizes. Rectangular in shape, it has a compartment at the rear housing the control gear, which harmoniously joins the lighting section. It has a double compartmentalisation and is fully IP66. Fixed laterally with a lyre, it can be installed on crossbars and crowns as well as on the front. Bento AREA has 12 to 24 LEDs in the S version, 24 to 48 LEDs in the M version and 72 LEDs in the L version, with a colour temperature of 3000 K or 4000 K. It has optimised light distributions and is specially designed for sports lighting, car parks and tertiary areas. The Bento AREA luminaire incorporates the Zhaga standard in its design.

Configurazioni disponibili Potenza nominale Flusso Emissione luminosa CCT CRI
1 x LED 53,1 W 5493 lm 103 lm/W 2200 K 70
BENTO AREA S

BENTO AREA S

Emissione luce 1

1 x LED

Tipo di montaggio

Testapalo

Forma e Dimensioni

Lunghezza: 500 mm

Larghezza: 200 mm

Altezza: 100 mm

Regolazione

Fisso

Cablaggio / Dimming

Potenza sistema: 53,1 W

Grado di protezione

IP: 66

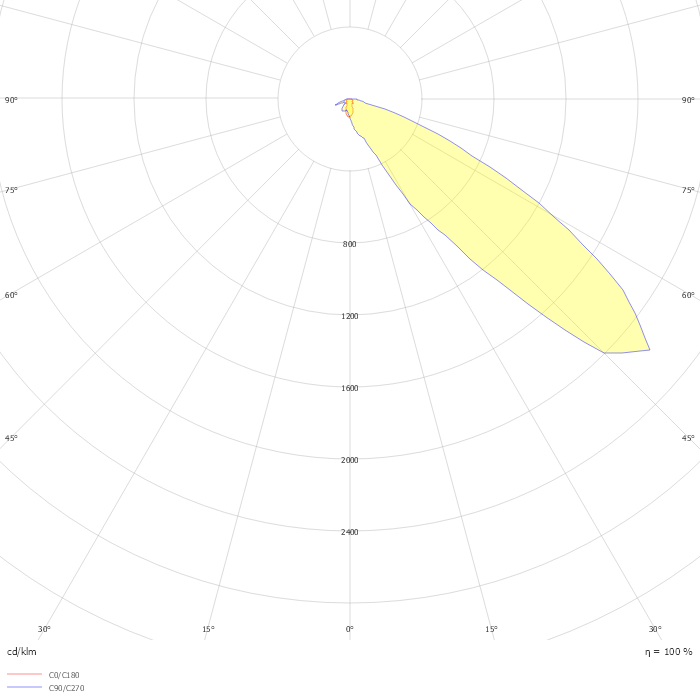

Photometric data

ZIP file
