Fichier produit

ECLPENDANTJRNW_WHITE

ECLPENDANTJRNW_FULL_60DEG

Prolights

Image du produit 1: ECLPENDANTJRNW_WHITE
Image du produit 1: ECLPENDANTJRNW_WHITE

Image du produit 1: ECLPENDANTJRNW_WHITE



Image du produit 2: ECLPENDANTJRNW_WHITE

Image du produit 2: ECLPENDANTJRNW_WHITE



IP
20

IK
08

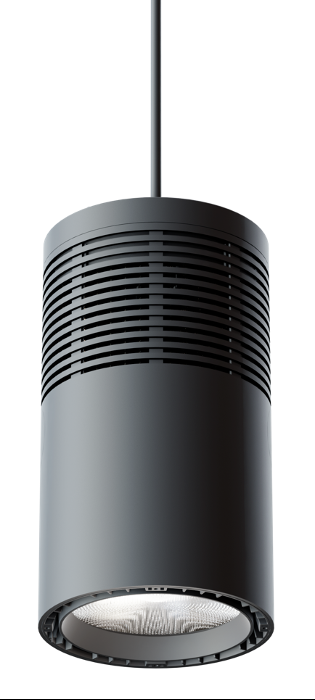

The EclPendant Jr is a beautifully designed house light packed with high-performing technology that makes any venue well-lit whilst staying eco-friendly. This innovative series of pendant lights come with a wide selection of LED sources, a full range of optics, accessories, mounting options and control. The EclPendant Jr has a 100-Watt LED source. Its source varies in RGB + Warm White, 3,000K, 4,000K or 5,600K. They all have high-quality light output, a consistent colour temperature and unmatched durability. Several advanced user settings are available from the unit's on-board GUI and control protocols like DALI, DMX + RDM and Wireless DMX (CRMX + W-DMX). The EclPendant Jr was made for several uses - its mounting options include pendant, surface, stem, wall mount, adjustable bracket, and recessed. It's also possible to wire the EclPendant series directly to mains (100-240AC or 48V DC) and DMX or DALI through terminal blocks or feed power and DMX using the TrueOne and DMX connections. The fixture has a wide range of optics and accessories available, with an uncompromising approach to flexibility and precision. All the optics are easily changeable on-site, providing a hassle-free user experience. The EclPendant Jr has a fan-free thermal design and delivers a powerful and consistent lumen output over a long lifespan. NOTE: the hanging bracket does not come with the product Features: 100W LED source power, RGB + Warm White, 3,000K, 4,000K or 5,600K with passive cooling AC or DC power input. Control via DALI, DMX, RDM, Wireless DMX (CRMX+W-DMX) Extensive mounting option possibilities, optics and accessories are all easily changeable

Ampoules disponibles Puissance nominative du lampe Flux lumineux de la source Efficacité lumineuse CCT CRI
1 x LED 104,7 W 7075 lm 68 lm/W 4017 K 96
ECLPENDANTJRNW_WHITE

ECLPENDANTJRNW_WHITE

Surface lumineux 1

1 x LED

Type de montage

Suspendu, Plafonnier, Encastré dans le plafond

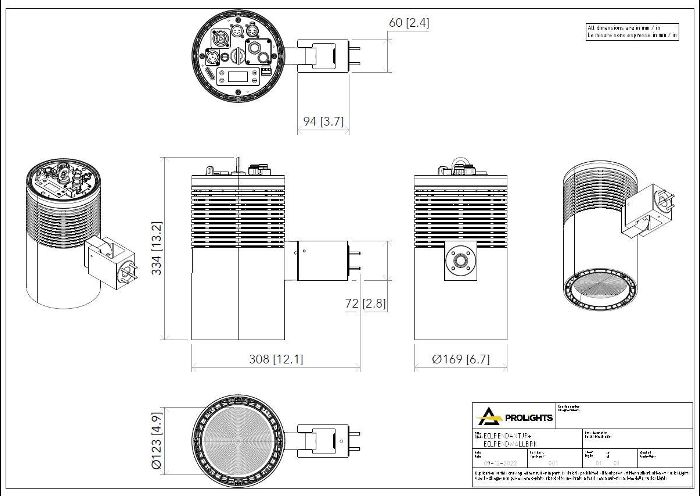

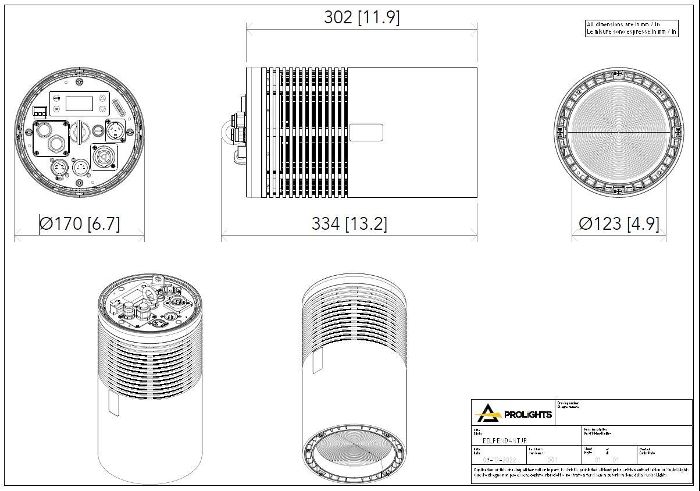

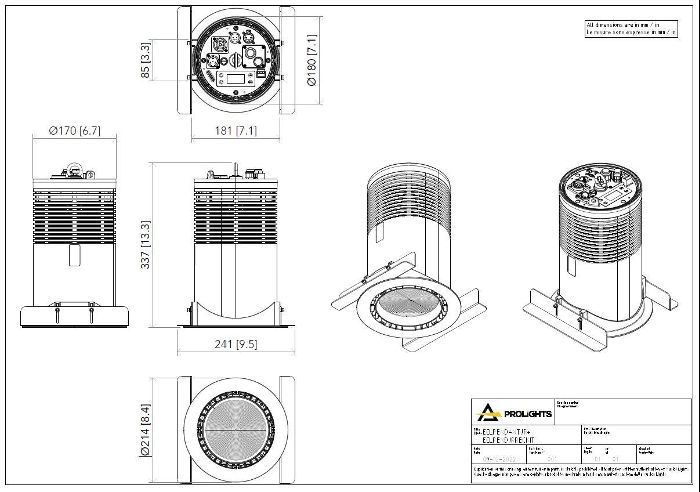

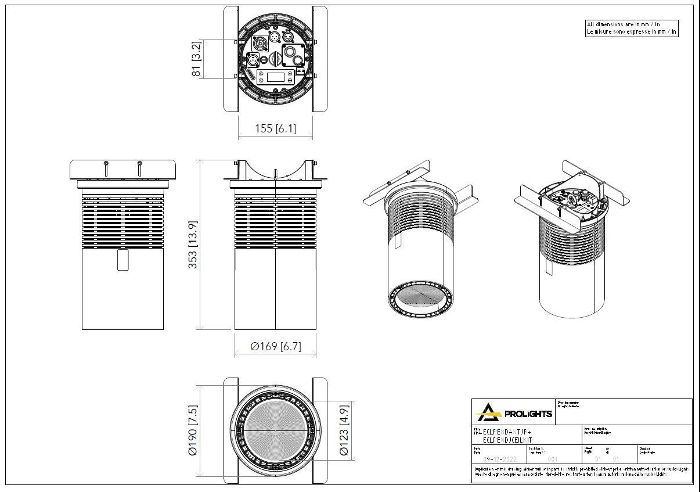

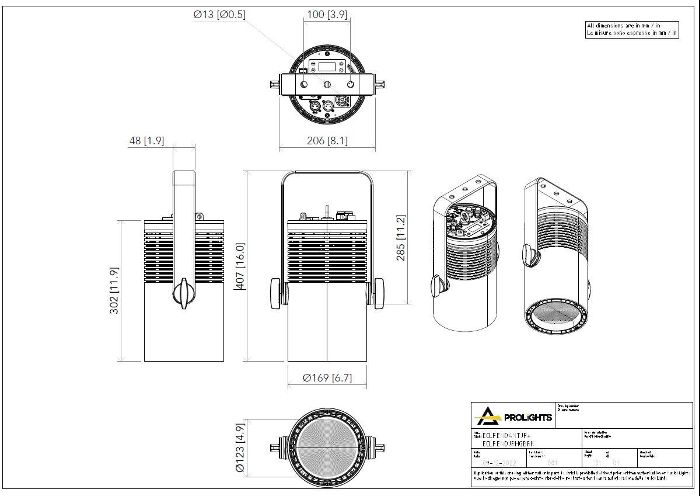

Forme et dimensions

Longueur: 169 mm

Largeur: 169 mm

Hauteur: 302 mm

Réglable

Rotatif, Volant, Réglable en hauteur

Électrique

Puissance du système: 104,7 W

Contrôleur: DMX, DALI

Luminaire avec température de couleur variablee

Classe de protection: I

Types de protection

IP: 20

IK: 08

Température de surface: 70 °C

Étiquette: CE

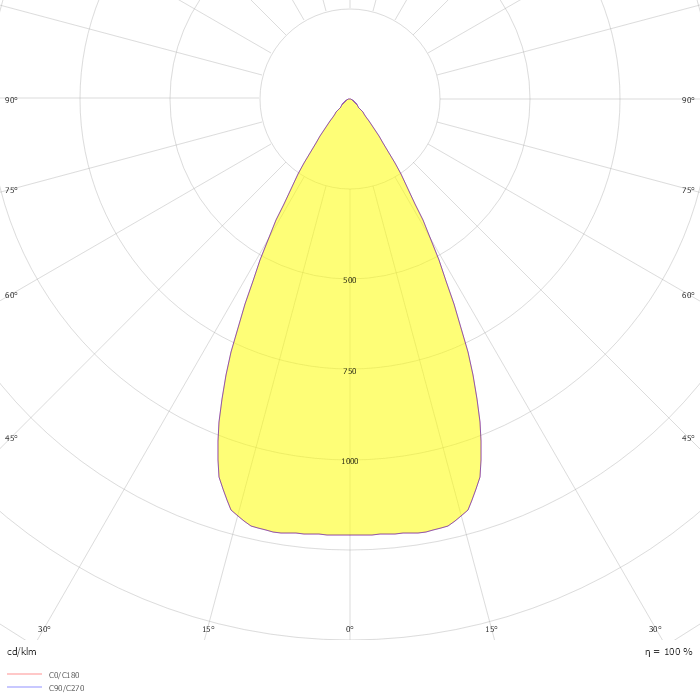

Fichier Photométrique

ZIP file

Fichier produit

PDF file
