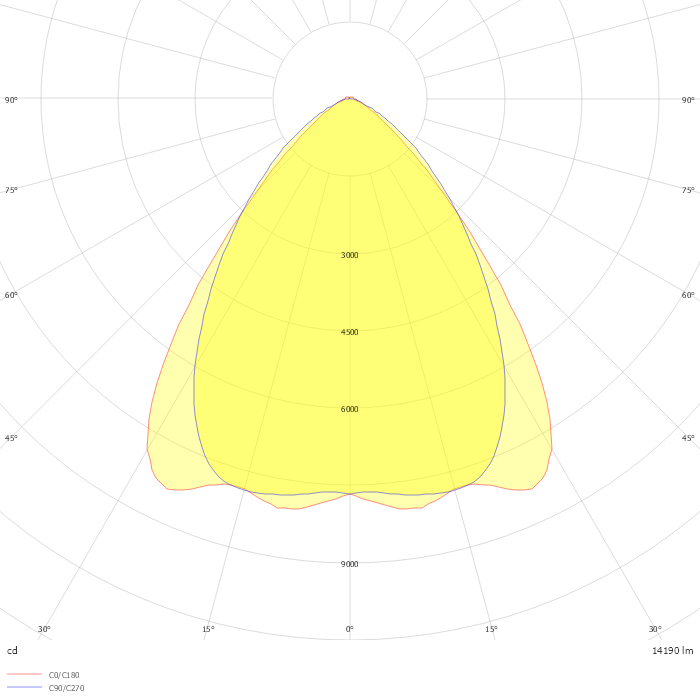

SRT-Quick-fit mounting system, Variable device mount, Modullänge/1500. Device mount made of a galvanised, profiled steel sheet; surface coated with polyester resin. Tool-free attachment with design-integrated pressure caps guarantee protection against theft and dismantling. Variable position on the mounting rail. Housing colour traffic white RAL 9016; Performance level: Powerful Performance (PP) - Powerful, universal all-rounder, sets very high standards for efficiency, service life and warranty period, Light distribution direct narrow/wide distribution by means of Central.Line.Optic of PMMA plastic, The lens optics ensure ease of installation and are easy to maintain thanks to the easy-to-clean surface. The density of the single-row lens arrangement ensures that the points merge into a line with a homogeneous appearance in the object. The light source and driver are removable in accordance with the EU 2019/2020 ecodesign requirements and can be replaced in the factory. Electrical connection by means of a 1m connection cable for variable device mount positioning with a 5-pin, quick-fit plug connector in the light run with free phase pre-selection; With 3h emergency lighting battery; Luminaire status by visible status LED in luminaire (NL-B3); Luminous flux in emergency light mode 921 lm. The device mount can be adjusted variably in steps with a multi-lumen driver (default setting: maximum lumen output). They are exchangeable, permit modernisation and reliably prolong the service life of the overall system. Dimensions (LxWxH): 1531mm x 55mm x 37mm Beam angle: 80° (C0) / 80 ° (C90) Placement: LED, Colour rendering/Light colour CRI ≥ 80 / 4000K Colour tolerance: 3SDCM Photobiological safety (Luminaire): RG1 LED service life: 75000h L80/B10 (Tq 25°C), 100000h L80/B50 (Tq 25°C) Nominal luminous flux/switching steps: 14200lm/88W, 12500lm/76W, 10800lm/64W, 8600lm/49W Nominal luminous flux-emergency lighting mode: 921lm Luminaire luminous efficiency: 175lm/W-162lm/W Controller: Electronic multi-lumen driver 3h emergency lighting, 4-steps (1 pcs.) System output: 88W-49W Energy efficiency class/light source: B Mains voltage: 230V Mains frequency: 50Hz Impact resistance (IK rating): IK03 (5°C bis 25°C) Ambient temperatur: ta 5°C to 25°C UGR lat./long.: 22.4 / 23.0 (88W) Certification mark: IP20, Protection class I, F, HACCP DIN10500/Food/IFS-application-related suitability/BRC, Indoor, CE Warranty period: 5 years Regiolux GmbH Type: SRGVCTB PP /1500 LED 14000-9000 840 ETM NL-B3 vw RAL 9016 Article number: 19535007910 Product deep link: https://www.regiolux.de/en/article/19535007910 General warranty conditions: www.regiolux.de/en/Service/Warranty
