Fichier produit

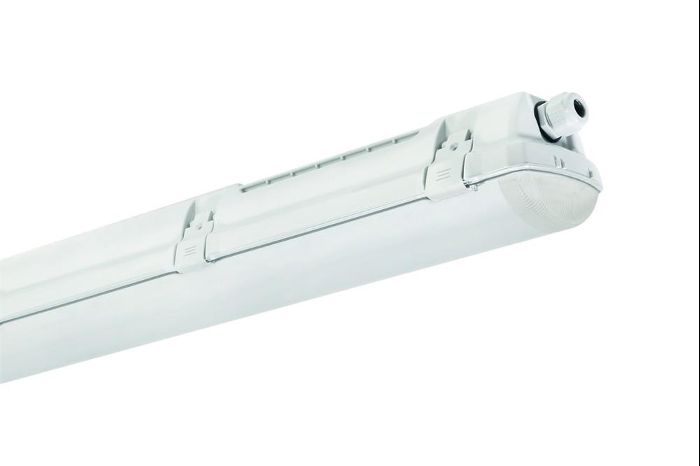

NANOTTICA 1.4ft ES TRS PC 4400/840 DALI 3F M3hAt

108732

TREVOS

absolute control over emitted light thanks to patented nano-optics; variable suspension spacing ranging from 700 - 960 mm; enable the light to be installed onto suspension fittings left over from previous lighting; basic beam angle: medium beam (MB); optimal mounting height: 3.5 to 8 m; digitally dimmable DALI driver (AC/DC), backup power supply with self-test. and operating time 3 hrs.; emergency back-up power supply for permanent and emergency lighting, connected to L3 (lum. flux 440lm); Body: clear PC (high mechanical resistance, UV stability); Diffuser: clear PC with nano-optics (high mechanical resistance, UV stability); Reflector: steel sheet, white (RAL 9003), modified for indirect lighting; Clips: polyamide + 15 % fibreglass; Sealing: polyurethane (PUR), foam-filled base groove; Connection: screwless seven-pole terminal block, 7-wire connecting cabling for feed-through installation (1.5 mm2 cross-section, 2.5 mm2 available on demand); Power: 24,6 W; Luminaire flux: 4120 lm; Lifetime: L90/B10; 50000 hours; Impact strength: IK10; Ambient temperature: 0|40 °C; Weight: 2,2 kg;

Type de source Puissance nominative du lampe Flux totale Efficacité lumineuse CCT CRI
LED 24,6 W 4380 lm 178 lm/W 4000 K 80
NANOTTICA 1.4ft ES TRS PC 4400/840 DALI 3F M3hAt

NANOTTICA 1.4ft ES TRS PC 4400/840 DALI 3F M3hAt

Surface lumineux 1 (integré)

LED

Type de source Puissance nominative du lampe Flux totale Efficacité lumineuse CCT CRI
LED 2 W 440 lm 220 lm/W 6500 K 80
NANOTTICA 1.4ft ES TRS PC 4400/840 DALI 3F M3hAt

NANOTTICA 1.4ft ES TRS PC 4400/840 DALI 3F M3hAt

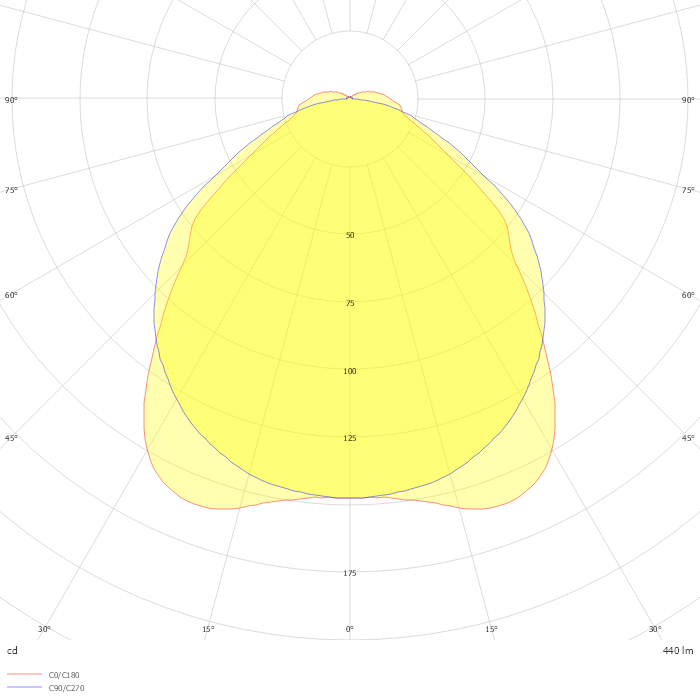

Surface lumineux 2 (integré, éclairage de secours)

LED

Type de montage

Plafonnier

Forme et dimensions

Longueur: 1175 mm

Largeur: 98 mm

Hauteur: 84 mm

Réglable

Rigide

Design

Matériau: Plastique

Couleur du luminaire: Blanc

Designer: TREVOS

Électrique

Puissance du système: 26,6 W

Alimentation: ECG

Contrôleur: DALI

Classe de protection: I

Informations sur l'éclairage de secours

Éclairage de secours supplementaire

Luminaire de sécurité: Inexistant

Types de protection

IP: 66

IK: 10

Étiquette: CE, ENEC

Autres indicateurs

Niveau de température: 0...40 °C

Fichier Photométrique

ZIP file
